samet smart slide single Quick Installation Instructions

Hide thumbs
1
2
3

Advertisement

Quick Links

Download this manual

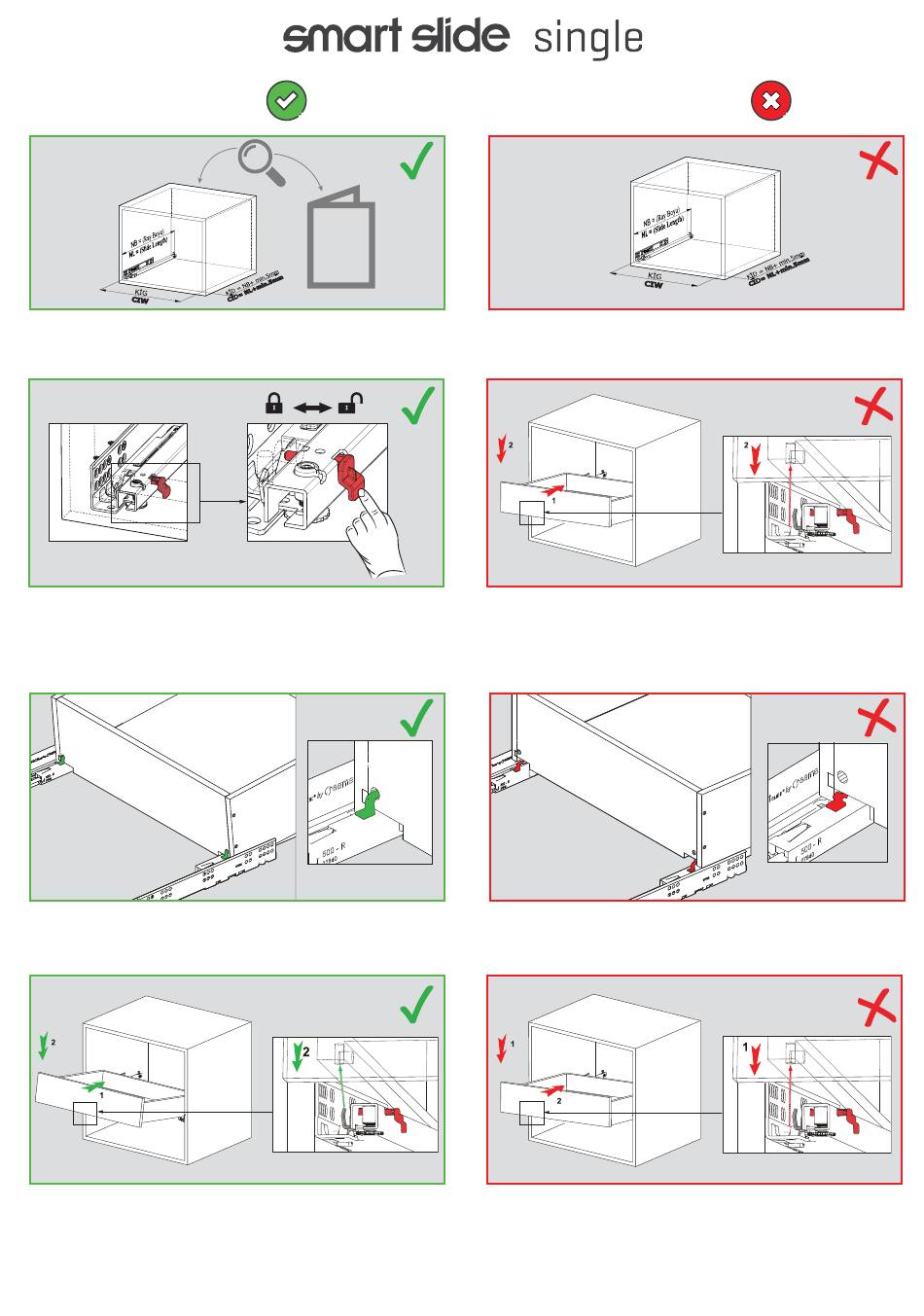

- DO -
1
Refer to the Smart Slide Single User Manual for specific
information regarding Slidea drawer dimensions.
2
Plastic safety pin should be switched to the unlocked
position before the drawer is set in place. Then the
safety pin can be locked into the horizontal hole on
drawer side panel.
3
Back hook of the slide should be inserted into the
drawer back gently.
4
After inserting the back hook of the slide gently, the
vertical metal pin should be fitted into the vertical
hole after the drawer is laying flat on the top of the slides.
Manual
Drawer dimensions should not be altered from what is
written in the Smart Slide Single User Manual.
Plastic safety pin should not be in the locked position
before the drawer is set in place. The safety pin should
not stay in the unlocked position after the drawer is set
in place.
Back hook of the slide should not be bent as it is
inserted into the drawer back.
Do not insert the drawer before the back hook on the
slides has been inserted, and be careful to avoid bending
the vertical, metal pin with non-flat drawer angle.
