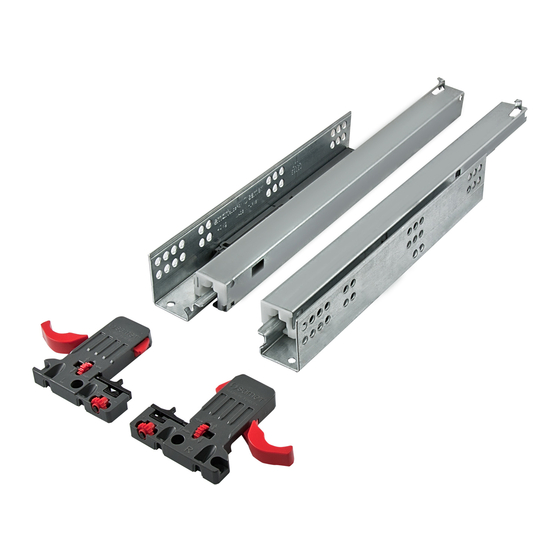

samet Full Extension Manual

1
* Determ�ne the cab�net �nternal w�dth and depth before start�ng the des�gn of
drawer.
3
* Dr�ll the sl�de mount�ng holes.(Use the Smart Dr�ll�ng J�g w�th ruler or Smart
Dr�ll�ng J�g �n order to work of drawer properly.)
5
* Sl�der hole ax�ses can be dr�lled by us�ng Smart Dr�ll�ng J�g.
7
* Dr�ll the Smart lock f�x�ng holes and drawer back holes
by us�ng lock template.
9
*Pull the "C" handle to d�splace drawer.Use "B" nut to adjust left-r�ght and
"A" nut to adjust up and down.
Full Extens�on
Manual
2
DIW = Drawer Internal W�dth
CIW = Cab�net Internal W�dth
DD = Drawer Depth
NL = Nom�nal Length
* Install the drawer accord�ng to the d�mens�ons above.
4
250
300
350
400
450
500
550
600
* Mount�ng hole ax�ses were g�ven above accord�ng to lenght of sl�de.
6
* Screw the sl�der to the cab�net from the holes shown �n f�gure w�th
ch�pboard screw Ø3.5x16.
8
* Use angled holes to mount smart lock when wooden
floor w�dth �s selected less then 12 mm.
10
* Drawer can be d�splaced by pull�ng the "C" handle.
