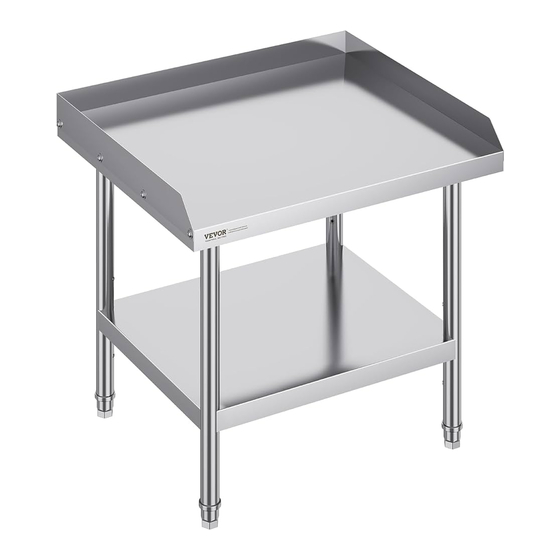

VEVOR SKT710 610T Series User Manual
Hide thumbs Also See for SKT710 610T Series:

Advertisement

Technical Support and E-Warranty Certificate www. vevor. com/support
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the
major top brands and does not necessarily mean to cover all categories of tools offered by
us. You are kindly reminded to verify carefully when you are placing an order with us if you
are actually saving half in comparison with the top major brands.
WORKBENCH
USER MANUAL
SKT710*610T
SKT910*760T
SKT1220*760T
SKT1520*760T
SKT610*610J
SKT710*610J
SKT910*760J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKT710 610T Series and is the answer not in the manual?

Questions and answers

Summary of Contents for VEVOR SKT710 610T Series

  • Page 1 Technical Support and E-Warranty Certificate www. vevor. com/support WORKBENCH USER MANUAL SKT710*610T SKT610*610J SKT910*760T SKT710*610J SKT1220*760T SKT910*760J SKT1520*760T We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an...
  • Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS WARNING: Read this material before using this product. Failure to do so can result in serious injury. Assembly precautions 1. Assemble only according to these instructions. Improper assembly can create hazards. 2. Keep the assembly area clean and well-lit. 3.
  • Page 4: Product Parameters

    PRODUCT PARAMETERS Maximum load-bearing Table legs Product Size (Top Dam- Support ( whole / Item No. Wheel (mm) board/Clap board feet separated) board) SKT710*610T 700/540lbs 610*711*660 whole √ √ × SKT910*760T 800/620lbs 762*914*660 whole √ √ × SKT1220*760T 900/620lbs 762*1219*660 whole √...
  • Page 5: Packing List

    PACKING LIST Picture Item Part Name Panel 1 PCS Shelves 1 PCS Table legs 4 PCS Flapper-1 1PCS Flapper-2 1PCS Flapper-3 1PCS - 4 -...
  • Page 6 Support feet (3-inch universal wheels (2 with brakes)) 4 PCS (pre- Tip:various to refer the Product installe Parameters table M6 Allen socket screws 8PCS Φ6 gasket 8PCS M5 screws 13PCS φ5 gasket 13PCS Hex key 1PCS User Manual 1PCS - 5 -...
  • Page 7: Assembly Step

    ASSEMBLY STEP This is the original instruction, please read all manual instructions carefully before operating.VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is any| technology or software updates on our product.
  • Page 8 3.Install the support feet or wheels The support feet are pre-installed before they leave the factory. 4.After completed the installation, turn the workbench over and adjust the height of the four support feet (or wheels) to ensure that the four feet are close to the ground and the workbench is stable - 7 -...
  • Page 9 5. Install the flapper-1 on the workbench in the correct orientation (please refer to the logo direction), then tighten it with M5 screws and φ5 gasket, and fasten the baffle-1 on the workbench. Logo 6.The baffle-2 and the baffle-1 are buckled and correctly placed on the workbench, and then fastened with M5 screws and φ5 gasket, and the baffle...
  • Page 10 7.Finished product drawing Note: If the workbench does not need to be moved. Please hold the brakes on the wheels to ensure that the table does not move. The workbench has a maximum weight limit, please be careful not to exceed the maximum weight - 9 -...
  • Page 11 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfurt am Main. YH CONSULTING LIMITED.
  • Page 12 Technical Support and E-Warranty Certificate www. vevor. com/support...
