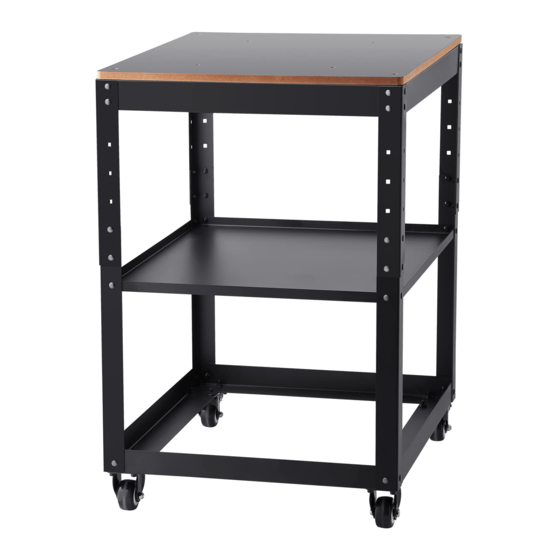

- Page 1 Portable Workbench LCWB90 USER MANUAL...
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appear- ance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is any technology or software updates on...
-
Page 4: General Safety Rules
GENERAL SAFETY RULES IMPORTANT: carefully read the instructions in this manual as well as the general safety instructions before using this tool. Before using the tool, read the instruction book carefully. WARNING ! Read the instructions and use or operate without following the instruc- tions listed below will result in deformation, inflexible movement, loss of bearing weight or serious injury. -
Page 5: Maintenance
1) Send your portable workbench to professional maintenance personnel, must use the same spare parts for replacement, this will ensure the safety of use after mainte- nance. PRODUCT PARAMETER Model LCWB90 Length Width Maximum Adjustable Height Medium Adjustable Height Minimum Adjustable Height Load Limit 25.4... - Page 6 STRUCTURE AND PART NAME...
- Page 7 Name of Parts: 10: M6 Carriage Screws 1: Platform 11: M8 Hex Socket Screws 2: Panel 12: M8 Flange Nuts 3: WB90 Column 13: M8 Hexagon Socket 4: WB90 Column Countersunk Head Screws 5: Bulkhead 6: Bower Bulkhead 7: Universal Wheel 8: Directional Wheel 9: M6 Flange Nut...
-
Page 8: Assemble Steps
ASSEMBLE STEPS STEP. 1 Fix 7 (universal wheel) and 8 (universal wheel) to 6 (lower divider) with 11 (M8 hex socket screws) and 12 (M8 flange nut).2. The tool is intended for household and professional use . STEP. 2 Use 10 (M6 carriage screws) and 9 (M6 flange nuts) to make 4 (WB90 column 2) fixed in 6 (lower partition) around. -
Page 9: Adjust The Height
ADJUST THE HEIGHT 1) The maximum height is 900mm. As shown in the figure: First, align the hole positions in 1.2.3 of Figure 3 (WB90 column 1) and 4 (WB90 column 2), then insert 10 (M6 carriage screws) and 9 (M6 flange nuts) into the hole 1.2.3 and tighten them. 2) Medium height 850mm as shown in Figure 1: First align hole 3 (WB90 column 1) and hole 4 (WB90 column 2) 2.3.4 one by one, then insert 10 (M6 carriage screws) and 9 (M6 flange nuts) into hole 2.3.4 and tighten it. - Page 10 3) Minimum height of 800 as shown in Figure3 . First, align holes 3 (WB90 column 1) and 4 (WB90 column 2) 3.4.5 one by one, then insert 10 (M6 carriage screws) and 9 (M6 flange nuts) into hole 3.4.5 and tighten them...
- Page 11 Manufacturer：ZHEJIANG LANGCHENG INDUSTRY&TRADE CO., LTD Address：No.18 Weisan East Road, Hardware Machinery Industrial Zone, Tongqin Town,Wuyi County, Jinhua City 321201 Zhejiang, P.R.China Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD Address: 2 Holywell Lane, London, England, EC2A 3ET MADE IN CHINA...
