Summary of Contents for Poynting PUCK-V1

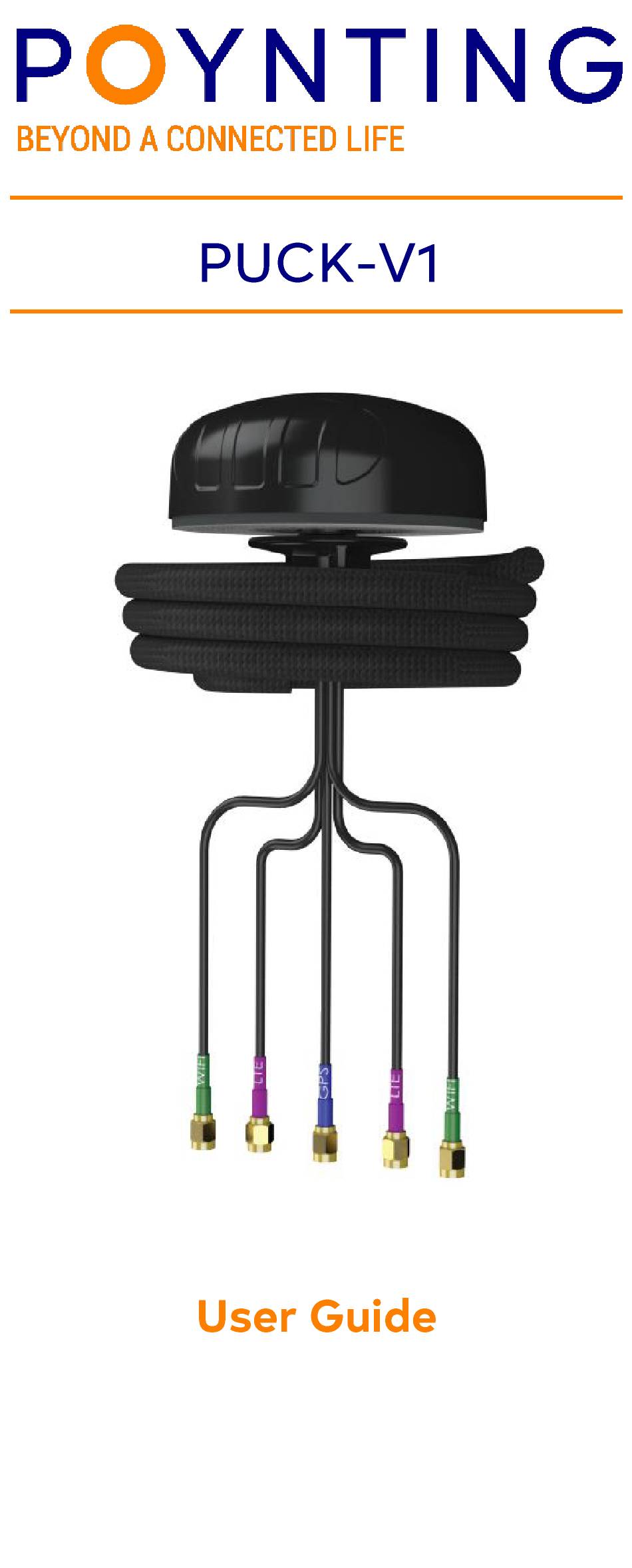

- Page 1 Revision 2.0...
- Page 2 Revision 2.0...
- Page 3 Packing Check List Introduction Antenna Mounting Precautions Cable Routing Safety Revision 2.0...
-
Page 4: Item Description

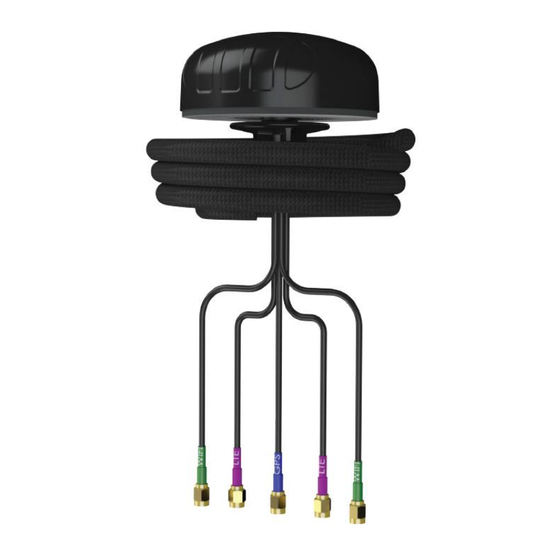

Item Description Quantity *PUCK-V1 Antenna Only M4 x 10mm Flat Head Stainless Steel Screws (Attached to the antenna) 35mm Threaded Spigot (Attached to the antenna) 75mm Threaded Spigot Magnetic Base Pole/Wall Mount Bracket Plastic Nut (Attached to the antenna) Adhesive Foam Seal... - Page 5 Antenna Unit M4 x 10mm Flat Head Stainless Steel Screws 35mm Threaded Spigot 75mm Threaded Female Spigot Magnetic Base Revision 2.0...
- Page 6 Pole/ Wall Mount Bracket Plastic Nut Adhesive Foam Seal Grip Extenders *SMA(F) to RP-SMA(M) Adapters Antenna with Wi-Fi only Revision 2.0...
- Page 7 Drills (Pilot drill (3mm) and Hole saw (22mm) or step drill (4-22mm)) Impact Drilling Machine Hammer Safety Goggles 27mm Spanner/Wrench Revision 2.0...
-
Page 8: Drilling Template
Masking Tape Centre Punch Drilling Template (Available on www.poynting.tech/downloads) Revision 2.0... - Page 9 This User Guide provides information on the installation instructions of the Omni-directional antenna (PUCK-V1 Series). Threaded Spigot Mounting Use the Drill template below or download the 1:1 drill template from http://www.poynting.tech/downloads. Choose the mounting location carefully and a • position at least 50cm from heat sources, with a clear line of sight to the sky.
- Page 10 Securing the antenna Fasten the required spigot with the Flat head • screws. • Clean the plastic surface of the antenna base and threaded spigot. Peel off one of the wax paper layers from the • foam seal and stick the foam seal to the plastic surface.
- Page 11 Exploded View Revision 2.0...
- Page 12 Adhesive Mounting Clean the entire surface on which you plan to • stick the antenna. • Remove the nut, foam seal and short spigot from antenna. Secure the magnetic base to the antenna with • flat head screws. Peel off the wax paper layer and stick the •...
- Page 13 Pole Mounting Lay the antenna out at the installation site. • Attach the bracket onto the base of the • antenna using 4 Flat head screws. • Secure the cable tie or hose clamp around the bracket and pole until the bracket is secured to the pole.
- Page 14 Horizontal Pole Mounting Internal Pole Mount External Pole Mount Wall Mounting Select a suitable place for mounting the • antenna Using the wall mount bracket as a guide, • mark two points to drill on the wall. Use a masonry drill bit to drill a cable entry •...
- Page 15 Place the antenna at the highest point • possible and ensure that there are not any surrounding obstructions to the antenna. In order to avoid communication interference, • ensure that the antenna is placed at least 0.5m away from other antennas and metal objects.
- Page 16 • Never pull on the cable connectors; pull only on the cable. • Tighten the connectors and ensure that the cables don’t rattle loose. If you are installing an antenna for the first • time or unsure about how to install your antenna, obtain the help of a professional installer.
- Page 17 as they can get caught in moving parts during installation. 5. If the antenna assembly starts to fall, get away from it and let it fall to avoid harming yourself. • When drilling remember: 1. Use safety goggles when drilling the holes.
- Page 18 81677 München Suite 104, Mansfield, Landmarks Ave Germany TX 76063 Samrand, 0157 Tel: +49 89 2080 265 38 Tel: +1 817 533-8130 South Africa Mob.: +49 176 529 733 50 sales-us@poynting.tech Tel: +27 12 657 0050 sales-europe@poynting.tech info@poynting.tech Revision 2.0...
