- Page 1 PB562 Operation instruction Android download iPhone download Depending on the system configuration, some of the content mentioned in this manual V0.2 English may not appear on your system.
-
Page 2: Table Of Contents
Contents Warning WIFI: Warning 01-02 Operating Frequency: 2012-2472MHz Output Power: Max 20dBm Control Panel Specifications and Installation Instructions 03-06 RF Hardware Version: xxx RF Software Version: xxx Button description 07-08 EMF： These devices comply with RF specifications when the device 09-10 Main interface introduction is used at 20 cm from your body. -
Page 3: Warning

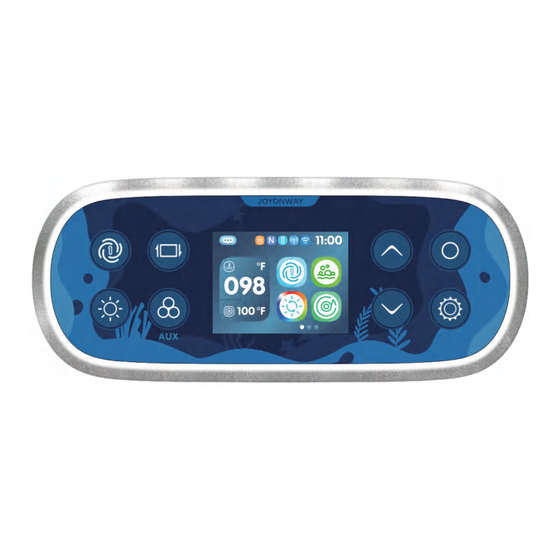

Warning Control Panel Specifications and Installation Instructions 2.4 inch TFT color display screen, 8 capacitive touch buttons This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 4 Control Panel Specifications and Installation Instructions Control Panel Specifications and Installation Instructions [ 7.40" ] Control Panel Installation Instructions 188.00 mm Front view [ 1.18" ] 30.00 mm Make a hole in the appropriate position of the hot tub according to the size of the control Left view [ 6.61"...
-
Page 5: Button Description
Control Panel Specifications and Installation Instructions Button description Warning Warning 1. Please connect power by strictly following the Please set the date and time SPA wiring diagram. before using the SPA control system. 2. Please do not power on the SPA until the water level reaches the water level line inside the tub. -
Page 6: Main Interface Introduction
Button description Main Interface introduction Screen reverse button Main interface Used to reverse the display content upside down 180 degrees , and the direction of the navigation buttons also changes accordingly. Multifunction button Used for functions such as pump 2 (if equipped) or blower (if equipped) or user mode. -
Page 7: Music
Main Interface introduction Music Bluetooth is connected The circulating pump is in operation Pump 1 Music Pack number: Displayed when multiple packs are connected at the same time Pump 2 Blower User mode in operation Light off Pump 3 Light on Pump 4 Current water temperature Settings... -
Page 8: Lights
Lights Lights Music connection steps： Mode toggle button. Select the button and press the “ ”button to toggle On the main interface, press the button " " to activate the cursor, and then press "Normal"/"Water Temp." mode. " " " "... -
Page 9: Setting Instructions
Lights Setting instructions 1.1 How to enter the setting interface WHITE Less than 45°F. PURPLE Temperature unknown because the water has not been cycled. Approximately less than 7.2℃. Press the button“ ”to enter the settings Interface and proceed with function settings. Color interface（RGB mode）... -
Page 10: Settings / Heat&Cool
Setting instructions Setting instructions （1）Temperature General Adjust the preset temperature. Select the "Temperature" Filter function and press the button " " to enter this interface. By pressing the buttons " " or " " to adjust the temperature. After the adjustment is completed press the button ”... -
Page 11: Settings / Clim8Zone
Setting instructions Setting instructions （3）eHeater Set the electric heating collaboration mode, select the 1.2.2 Settings / Clim8zone "eHeater" function, press the button" "to cycle through Continuous/EBOOST/Disable Clim8zone（This set option willl only appear when the Continuous： eHeater will continue to operate when heating is needed. -
Page 12: Settings / General
Setting instructions Setting instructions Set the daily filtering running time period and its on and off. （1）Date&Time Adjust the date and time. Select the "Date&Time", and press the button " " to enter this interface, then On: The heating will start running within the press the button "... -
Page 13: Settings / User Mode
Setting instructions Setting instructions （4）Language （6）Reset Setting Language change: select the "Language" function, and Reset: select the "Reset Setting" function, and press the press the button " " to enter this page. Choose the button " " to pop up a window. Press the button " "... -
Page 14: Settings / Wifi
Setting instructions Setting instructions 1.2.6 Settings / Wifi 1.2.7 Settings / Overview Overview Wifi Display current temperature Display current voltage WiFi WiFi is turned off Display current power WiFi WiFi is in a hotspot state Display changes in temperature WiFi is connected WiFi and power within 24 hours Connection record cleared... -
Page 15: Panel Warning Information
Panel warning information Panel warning information When there are some states that require user attention in the control system, the control F3:Water temperature Water temperature too high panel will display warning information of the state on the control panel. If there are is too high The control system has detected that the several types of information that need to be displayed at the same time, these information... - Page 16 Panel warning information Panel warning information F9:System setting error System settings error F14:Heater PT temperature Heating tube protecting temperature sensor disconnected Reason: The system configuration item read sensor is disconnected from the motherboard memory by the control The control system has detected that the heating system after power on was verified not correct.
- Page 17 2. Check the communication cables between the main Action: board and Balboa system 1.Check the water flow switch and replace it if it is 3. Check whether the Balboa system software matches faulty Heat Pump ER10: Communication fault of frequency conversion module 2.Check the water valve and the temperature difference...
- Page 18 Panel warning information Panel warning information Heat Pump ER16: Heat Pump ER29: Outer coil pipe temp. Error Return gas temp. Error Cause: Cause: Outer coil pipe temp. Return gas temp. Error The sensor plug is in poor contact or off, or the sensor is The sensor plug is in poor contact or off, or the sensor is Error damaged...
