Balboa SUV M-7 Reference Card

Initial Start-up
When your spa is first actuated, it will go into Priming mode, indicated by "
Manual for complete instructions on Power-up and Pump Priming
then the spa will begin to heat the spa and maintain the water temperature in the Standard mode.
Jets Jets

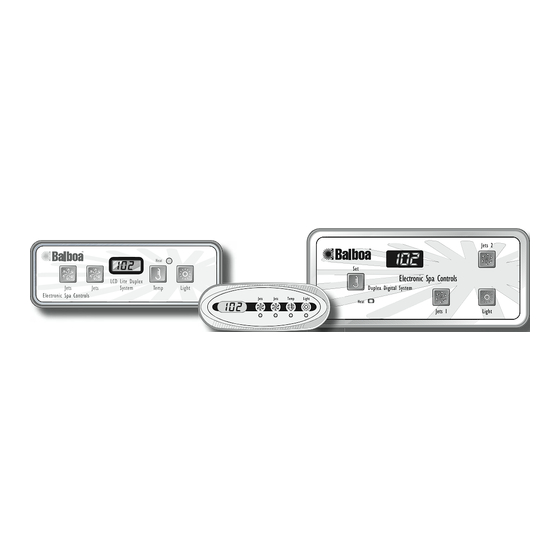

Electronic Spa Controls
Temp/Set (80°F - 104°F / 26°C - 40°C)
The start-up temperature is set at 100F°/37°C. The
last measured temperature is constantly displayed on
the LCD.
Note that the last measured spa temperature displayed is
current only when the pump has been running for at least
2 minutes.
To display the set temperature, press the "Temp" or "Set"
pad once.
To change the set temperature, press the pad a second
time before the LCD stops flashing. Each press of the
"Temp" or "Set" pad will continue to either raise or
lower the set temperature.
If the opposite direction is desired, release the pad and
let the display revert to the current water temperature.
Press the pad to display the set temperature, and again
to make the temperature change in the desired direction.
After three seconds, the LCD will stop flashing and
display the current spa temperature.
Jets
Touch the "Jets" button once to activate the low speed
of the pump and again for the high speed. Press the
"Jets" button again to turn off the pump. If left running,
the low speed of the pump will automatically turn off
after 4 hours, and the high speed will automatically
turn off after 15 minutes. The low speed of the pump
runs when the blower is on. It may also activate for
at least 2 minutes every 30 minutes to detect the spa
temperature and then to heat to the set temperature if
needed, depending upon mode. When the low speed
turns on automatically, it cannot be deactivated from the
panel; however, the high speed may be started.
Jets 2
This button is used to turn pump 2 on and off. If left on,
the pump automatically turns off after 15 minutes.
Light
Press the "Light" button to turn the light on and off. If
left on, the light automatically turns off after 4 hours.
SUV M-7 Control Reference Card
Heat
LCD Lite Duplex
System Temp Light
." Please see the M-7 Installation Instruction
.
The Priming mode will last for less than 5 minutes and
Set
Duplex Digital System
Heat
Mode
Mode is changed by pressing the "Temp" or "Set" button,
then pressing the "Light" button.
Standard Mode is programmed to maintain the desired
temperature. Note that the last measured spa temperature
displayed is current only when the pump has been
running for at least 2 minutes. " " will be displayed
momentarily when you switch into Standard Mode.
Economy Mode heats the spa to the set temperature
only during filter cycles. "
temperature is not current, and will alternate with
temperature when temperature is current.
Sleep Mode heats the spa to within 20°F of the set
temperature only during filter cycles. " " will display
solid when temperature is not current, and will alternate
with temperature when temperature is current.
Preset Filter Cycles
The first filter cycle begins 6 minutes after the spa is
energized. The second filter cycle begins 12 hours later.
Filter duration is programmable for 2, 4, 6, 8 hours or for
continuous filtration (indicated by "
time is 2 hours.
To program, press "Temp" or "Set," then "Jets."
Press "Temp" or "Set" to adjust. Press "Jets" to
exit programming.
The blower purges for 30 seconds at the beginning of
each filter cycle. The low speed of the pump runs during
filtration and the ozone generator (if installed) will
be enabled.
Freeze Protection
If the temperature sensors detect a drop to below
45°F within the heater, the pump and blower will
automatically activate to provide freeze protection. The
equipment stays on until 4 minutes after the sensors
detect that the spa temperature has risen to 45°F or
higher. In colder climates, an optional additional freeze
sensor may be added to protect against freeze conditions
that may not be sensed by the standard sensors. Aux
freeze sensor protection acts similarly except with the
temperature thresholds determined by the switch and
without a 4-minute delay in turnoff. See your dealer
for details.
(over)
Jets 2
Electronic Spa Controls
Jets 1 Light
" will display solid when
"). The default filter
