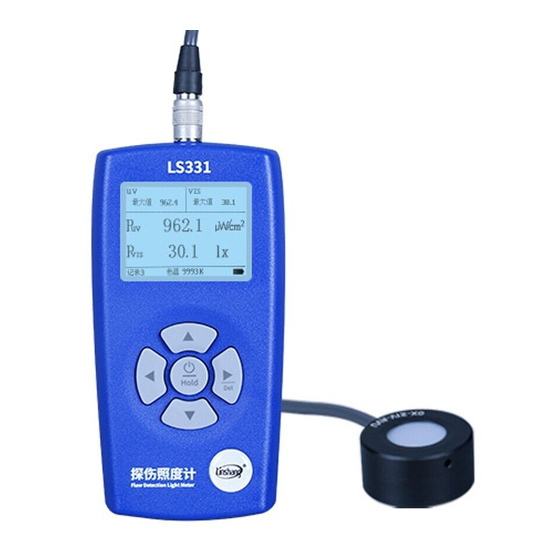

- Page 1 Shenzhen Linshang Technology Co., Ltd. LS331 Flaw Detection Light Meter User Manual V1.0 Please read this manual carefully before using and reserve it for reference. 2024-8-9 Page 1 of 8...
-
Page 2: Product Introduction
Shenzhen Linshang Technology Co., Ltd. Product introduction The instrument is a multifunctional flaw detection light meter, specifically designed for non-destructive testing (NDT). It simultaneously measures UV power, visible light illuminance, and correlated color temperature (CCT). It meets the standards for non-destructive testing, penetrant testing, and magnetic particle testing. -
Page 3: Spectral Response Curve
Shenzhen Linshang Technology Co., Ltd. 17. Operating environment: Temperature (0～40)℃, Humidity <85%RH 18. Supply Voltage：DC3V 19. Operating Current：20mA 20. Operating Power Consumption：60mW III. Spectral response curve The UV measurement uses high-precision UV filter and professional UV detector. It almost no response to visible wavelengths, eliminate the impact of other spectral bands on the measurement accuracy. -
Page 4: Power On/Off
Shenzhen Linshang Technology Co., Ltd. V. Operations 1. Power on/off ⚫ Power on: Press to power on the instrument. After powering on, the instrument displays the information of the version number, serial number and enters into the measurement interface: ⚫... -
Page 5: Measurement Mode
Shenzhen Linshang Technology Co., Ltd. Short press to enter unit selection, button to select unit, short press and setting is finished. D. AutoOff: Short press the to enter auto power off selection, button to select [Yes/No] auto power off, short press , then the setting is completed. - Page 6 Shenzhen Linshang Technology Co., Ltd. ⚫ In the measurement mode, if the backlight is off, short press the button to light the backlight; if button, and the “HOLD” icon will be displayed in the the backlight is already lit, short press the lower left corner of the interface.
-
Page 7: Packing List
Provide users with spare parts and lifelong maintenance services Provide the users with the meter calibration service Free technical support for long term Manufacturer: Shenzhen Linshang Technology Co., Ltd. Website: www.linshangtech.com 2024-8-9 Page 7 of 8... - Page 8 Shenzhen Linshang Technology Co., Ltd. Service hotline: 086-755-86263411 Email: sales21@linshangtech.com 2024-8-9 Page 8 of 8...
