Nova 9076 How To Assemble

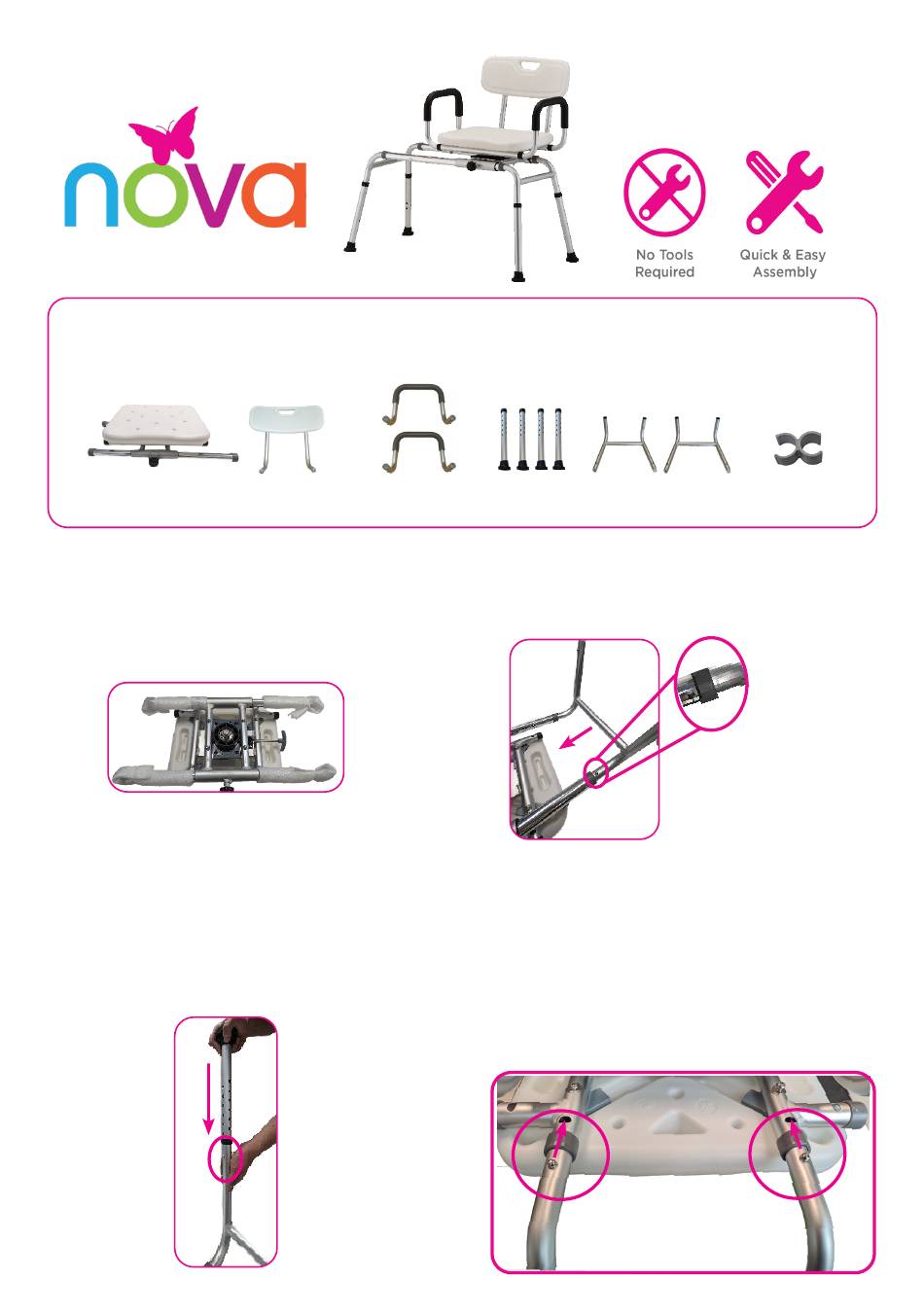

ASSEMBLE YOUR
SWIVEL BATH SEAT
Item # 9076
Capacity not to exceed 300 lbs
a. (1) Main Frame
b. (1) Backrest
a.
1.
Take all components out of the packaging
and place bath seat main frame upside
down on a level surface with the aluminum
components facing upwards. Ensure all
packaging material is removed
3.
Depress the push button on each leg to
insert onto the side frame. You should
hear a "click" once the push button is fully
engaged. Repeat until all four legs are
on and ensure all four legs are set on the
same height adjustment hole.
HOW TO
WHAT'S INCLUDED
c. (2) Arms
d. (4) Legs
b.
*Revised May 30, 2024
c. d.
2.
On each side attach the side frame onto
the main body. You should hear a "click"
once the push button is fully engaged.
4.
Depress the push buttons on backrest,
and insert into the backrest receivers
located on the bottom of the seat
platform. Ensure push buttons are fully
engaged and check by pulling upward on
the plastic backrest.
e. (2) Side Frames
f. (1) Showerhead Holder
e. f.
PLEASE NOTE: For all push
buttons, you should hear
a "click" once the push
button is fully engaged.
Do not use until the push
button is fully engaged.
