Vernier LabQuest Mini Manual

®
LabQuest Mini
(Model 2)
(Order Code: LQ-MINI)

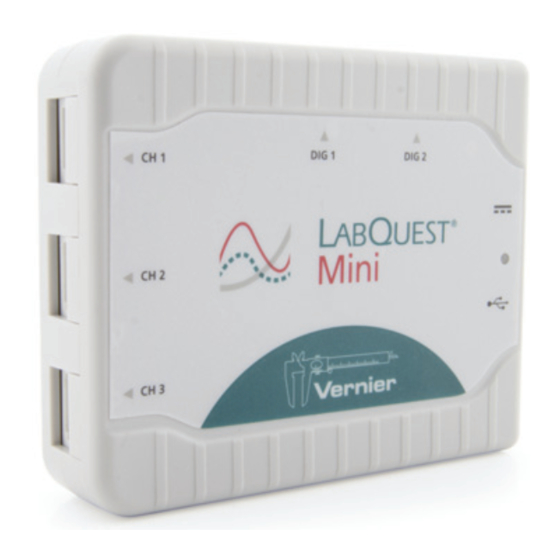

LabQuest Mini is a multi-channel, data-collection
interface that can be used to collect data from Vernier
sensors on various platforms, such as Windows
®
macOS computers and Chromebook™ computing devices. LabQuest Mini
supports a wired (USB) connection only.
The LabQuest Mini interface contains three analog ports (CH 1–CH 3), two digital
ports (DIG 1 and DIG 2), and a micro USB connection.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: Vernier products are designed for educational use. Our products are not
designed, nor are they recommended, for any industrial, medical, or commercial
process such as life support, patient diagnosis, control of a manufacturing
process, or industrial testing of any kind.
®
and
What's Included
LabQuest Mini (Model 2) interface
l
Computer connection cable (USB-A to USB Micro)
l
Getting Started
Follow these general procedures when using LabQuest Mini. For instructions on
getting started with a specific sensor, see
1. Install software appropriate for the data-collection platform you are using.
2. Connect a supported sensor to LabQuest Mini.
3. Connect the small end of the USB cable to the USB port on LabQuest Mini.
4. Connect the other end of the cable to a USB port on your computer or
Chromebook. The LED will glow orange.
5. Start the software. The LED will change to green. You are now ready to
continue your experiment.
Compatible Platforms, Software, and Sensors
See
www.vernier.com/manuals/lq-mini
compatible with LabQuest Mini.
Providing Power
Power for LabQuest Mini is supplied by the USB port of the computer or
Chromebook to which it is connected. LabQuest Mini does not need batteries or
an external AC power supply.
In rare cases, underpowered computer USB ports can prevent your LabQuest Mini
from working as designed. In those situations, we recommend using a powered
USB hub with your LabQuest Mini.
1
www.vernier.com/start/lq-mini
for a list of platforms, software, and sensors
