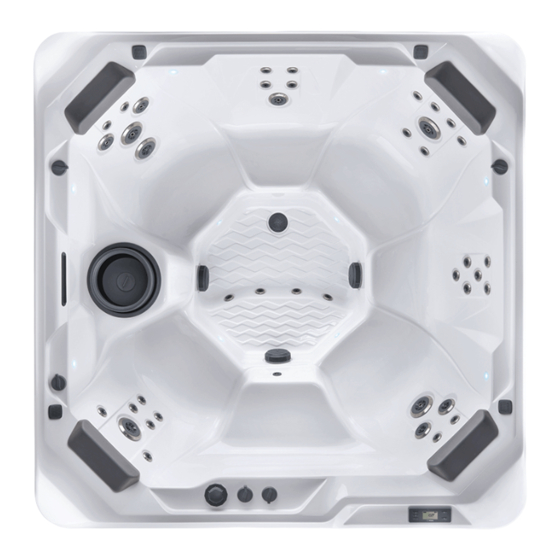

HotSpring Rhythm Manual

Hot Spot Rhythm 230 Volt
WELCOME TO WARM WATER!
We appreciate your business and look forward to providing you with years of relaxation and
enjoyment. To ensure a seamless delivery of your new hot tub, please use these documents in
preparation for the delivery of your new hot tub. Provided below are additional specifications
for proper electrical setup.
Electric Installation
There are many ways that a hot tub can be wired depending on the exact model and/or brand that you purchase. This
means that pre-existing wiring and electrical setups are not sufficient unless it is the exact same setup and model,
assuming: 1) the manufacturer has not made any changes to the tub, and 2) the existing wiring is still in excellent
condition. Electrical disconnect breakers must always be replaced when installing a new tub.
You will find the electrical schematics for your new hot tub further in this booklet. Wiring schematics should
be given to your electrician to ensure proper wiring of your hot tub.
220V hardwired hot tubs need a "whip" (a flexible or hard ¾" conduit containing wires as specified on your tub wiring
schematic) from your subpanel to the electrical cutout on the hot tub. You or your electrician MUST add additional
length in wiring from the opening, or where the electrical cutout is shown as an entry point on the hot tub, PLUS the
width and height to the equipment compartment for the final connection to be made. EX. Grandee with back corner
entry requires approximately 15' of wiring to electrical board. There is an electrical
board inside the equipment compartment where the wires are meant to be
connected and installed to run the hot tub (wires don't just go into the electrical
opening). This ensures that your electrician will have enough slack to connect the
wires inside the hot tub. Too long is better than too short (the excess can be wound
up in the equipment compartment). If the wires are too short your electrician will
have to run an entire new set of wires for the hot tub to run properly and we will not
be able to start your hot tub on delivery. Please have your electrician reach out to
your local store or salesperson for any clarity needed.
WHIP
PLEASE NOTE (common error): The neutral wire in the subpanel needs to be attached to the breaker, NOT onto the
grounding bar. The hot tub may not start, or the breakers may trip if the neutral wire is not connected properly.
PER WATKINS MANUFACTURING – To ensure you will have an opportunity to use your spa soon after delivery, it is
very important that the required electrical service has been installed. Unless otherwise stipulated by Allen Pools
and Spas, THIS IS YOUR RESPONSIBILITY.
IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician.
You can NOT run a hot tub on an extension cord.
