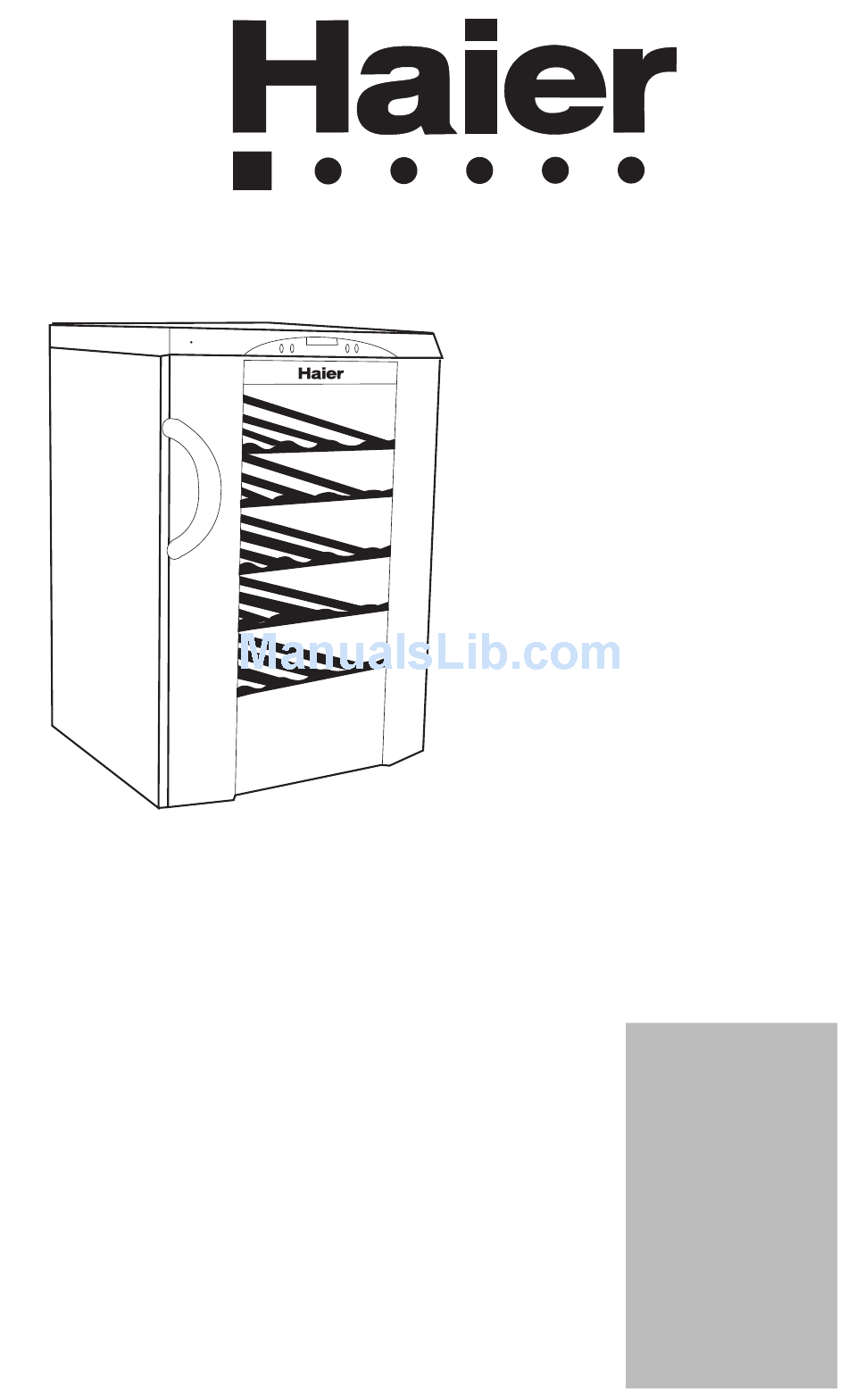

Wine Cellar Reserve Series Cave à Vin Serie Para Reserve Cava de Vinos User Manual- Model # (Features and size may vary per model) HVR035 Guide de l’Utilisateur- HVR042 Modèle (Les caractéristiques et la taille HVR049 Peuvent Varier par le Modèle)
Read all of the instructions before using this appliance. 2. Use this appliance only for its intended purpose as described in this use and care guide. 3. This wine cellar must be properly installed in accordance with the installation instructions before it is used.
English DANGER Risk of child entrapment. Before you throw away your old wine cellar, take off the doors. Leave the shelves in place so that children may not easily climb inside. Thank you for using our Haier product. This easy-to-use manual will...
Humidity Display and Control..............8 Shelving ....................8 Lock and Key ..................9 Deodorizer ....................9 Interior Light ..................9 Normal Operating Sounds ..............9 Proper Wine Cellar Care and Cleaning ........10 Cleaning and Maintenance ..............10 Changing Light Bulb ................10 Power Interruptions ................11 Vacation and Moving Care ..............11 Troubleshooting................12...
English Parts And Features ˚F WHITE LIGHT Wire Shelf - HVR042 & HVR060 (Features may vary per model) 1. Red Wine Button / Temperature 9. Adjustable Door Support Adjust Up 10. Adjustable Leveling Legs 2. White Wine Button / Temperature 11.
Proper Air Circulation • To assure your wine cellar works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections. • The following are recommended clearances around the wine cellar: Sides……………2"...
• Make sure there is a suitable power Outlet (120 volts, 15 amps outlet) with proper grounding to power the wine cellar. • Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the wine cellar and may result in shock hazard.
Wine Cellar Features And Use Initial Setup Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments. During this time the Red Wine light will stay on. Temperature inside the cellar, if not adjusted, will reach a range of 55˚-60˚F.
English Lock and Key • The wine cellar is equipped with a lock and key to secure your prized posessions. Deodorizer See fig. #3 • The deodorizer holes help to remove stale unwanted odor. Deodorizer • The deodorizer air holes are located on the rear of the unit.
Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your wine cooler. • Rinse with clean warm water and dry with a soft cloth. • Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,concentrated detergents, solvents or metal scouring pads.
When power has been restored, replug power cord to AC outlet. Vacation and Moving Care • For long vacations or absences, unplug the wine cellar and clean the wine cellar and door gaskets according to "General cleaning" section. Leave doors open, so air can circulate inside.
TroubleShooting Wine Cellar Does Not Operate: • Check if wine cellar is plugged in. • Check if there is power in the ac outlet, by checking the circuit breaker. Wine appears too warm: • Frequent door openings. • Allow time for recently added wine to reach desired temperature.
1. The mechanical and electrical parts, authorized dealer or service center. which serve as a functional, purpose Decorative trims or replaceable of this appliance for a period of 12 light bulbs. months. This includes all parts except Transportation and shipping.
IMPORTANTE No regrese este producto a la tienda Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A). NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA Made in China Fabriqué...
