Autonics UT-P Series Product Manual

TCD220052AB

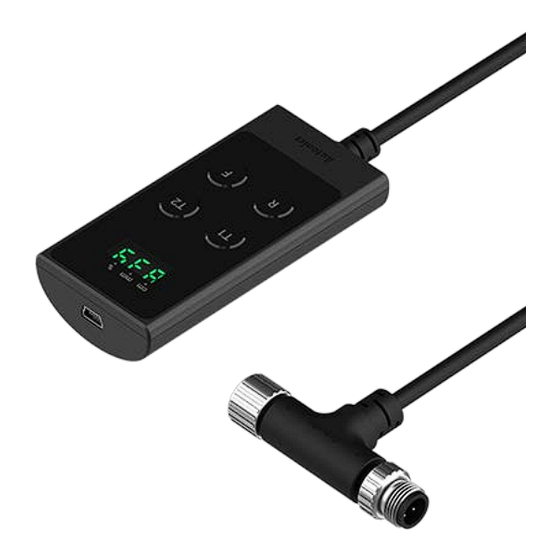

Ultrasonic Sensor
Programing Unit
UT-P Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
ᜢ ᜽ ᜣ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or
fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact, salinity,
moisture, or steam, or dust may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
04. Do not connect, repair, inspect, or replace the unit while connected to a
power source.
Failure to follow this instruction may result in fire.
05. Qualified personnel shall carry out installation, configuration.
Responsible person for use is an operator who:
- is fully knowledgeable about the installation, settings, use and
maintenance of the product.
Failure to follow this instruction may cause malfunction or result in accident.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the product within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Do not connect the load if only USB power is supplied.
Failure to follow this instruction may result in fire or product damage.
04. IO-Link and UT-P communications cannot be used simultaneously.
Do not connect wiring arbitrarily.
Cautions during Use
• Follow instructions in 'Cautions during Use'. Otherwise, it may cause unexpected
accidents.
• The 5 VDCᜡ, 12 - 30 VDCᜡ power input is insulated and limited voltage/current or
use SELV, Class 2 power supply.
• Use the product, after 3 sec of supplying power.
• Wire as short as possible and keep away from high voltage lines or power lines, to
prevent surge and inductive noise. Do not use near the equipment which generates
strong magnetic force or high frequency noise (transceiver, etc.).
In case installing the product near the equipment which generates strong surge
(motor, welding machine, etc.), use diode or varistor to remove surge.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 3
- Installation Category II
Cautions for Installation
• Install the unit correctly with the usage environment, location, and the designated
specifications.
• Do NOT impacts with a hard object or excessive bending of the wire lead-out. It may
cause damage the water resistance.
• Do NOT pull the cable with a tensile strength of 80 N or over. It may result in fire due
to the broken wire.
