Autonics LPD Series Product Manual

TCD230053AE

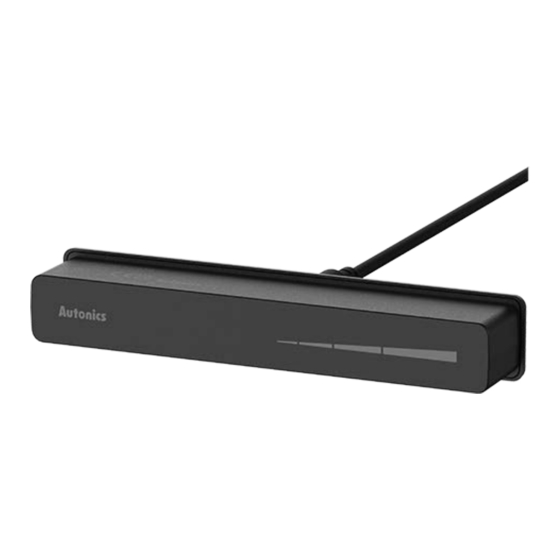

Inductive
Linear Positioning Sensors
LPD Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Detect linear movement of metallic objects using inductive detection method
• PCB circuit pattern to minimize risk of damage from impact
• Detection range: 14 mm, 103 mm
• Analog voltage / current output, IO-Link output
• Various functions: teaching mode, OOR (Out-of Range) output function, etc.
• Oil resistant cable
• IP67 protection rating (IEC standard)
ᜢ ᜽ ᜨ ᜬ ᜢ ᜽ ᜨ ᜬ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss.(e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
Cautions during Use
• Follow instructions in 'Cautions during Use'.
Otherwise, it may cause unexpected accidents.
• Power supply should be insulated and limited voltage/current or Class 2, SELV
power supply device.
• Use the product, after about 15 min of supplying power. Temperature compensation
stabilizes the device. If device stabilization is not completed, sensing performance
deteriorate.
• When teaching, the [Teach-in] button axis must be pressed correctly for operation.
Do not press the button with a sharp object. If the button is damaged, there may be
operational or functional problems.
• Wire as short as possible and keep away from high voltage lines or power lines, to
prevent surge and inductive noise.
Do not use near the equipment which generates strong magnetic force or high
frequency noise (transceiver, etc.).
In case installing the product near the equipment which generates strong surge
(motor, welding machine, etc.), use diode or varistor to remove surge.
• This unit may be used in the following environments.
- Indoors (UL Type 1 Enclosure)
- Altitude max. 2,000 m
- Pollution degree 3
- Installation category II
