- Page 3 © 2020 Sunrise Medical All rights reserved. The information provided herein may not be reproduced and/or published in any form, by print, photoprint, microfilm or any other means whatsoever (electronically or mechanically) without the prior written authorization of Sunrise Medical. The information provided is based on general data concerning the construction known at the time of the publication of this manual.
-
Page 5: Table Of Contents
Replacing the tyre of the rear wheel .................... 10 2.2.5 Adjusting the pressure brake ....................... 11 Replacement and repair activities for the Ibis with 12,5” or 16” rear wheels and PowerSupport ....11 2.3.1 Rear wheels ..........................11 Replacing the 12,5” rear wheel ....................12 2.3.2... -
Page 6: This Manual

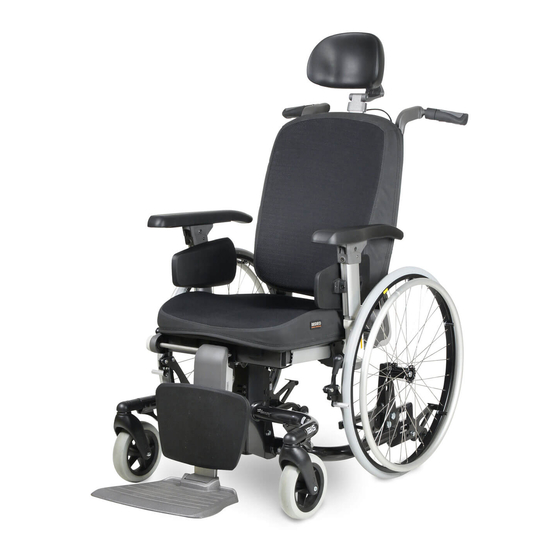

This manual This manual This manual contains the basic instructions for repairs and general maintenance of the Ibis manually operated wheelchair. Mechanics who do repairs on this wheelchair must be well trained and familiar with the repair methods and the maintenance of the Ibis wheelchair. - Page 7 This manual Warranty Definitions of terms Definitions of terms used in this warranty: After sales service part: Part purchased after the intial product that is durable and may be subjected to natural wear and tear or natural contamination during normal operation within the lifetime of the product.; Consumable part: Part that is subjected to natural wear and tear or natural contamination during normal operation within the lifetime of the product (section 9 of Sunrise Medical HCM B.V.’s general terms and conditions of sale);...
- Page 8 This manual This warranty does not cover: Tyres and inner tubes Batteries (covered by the battery manufacturer’s warranty). Clients and/or Users have legal (statutory) rights under applicable national laws relating to the sale of consumer products. This warranty does not affect statutory rights you may have nor those rights that cannot be excluded or limited, nor rights against the entity from whom the product was purchased.
-
Page 9: Maintenance
It is recommended to have your wheelchair serviced by your dealer at least once a year, or, in case of intensive use, once every six months. Replacement and repair activities for the Ibis with 20”, 22” and 24” rear wheels 2.2.1 Rear wheels To ensure proper operation of the wheelchair, it is very important that the tyres are kept at the correct pressure. -
Page 10: Replacing Rear Wheels
Maintenance 2.2.2 Replacing rear wheels The rear wheels should be removed as follows: • Remove locking nut (A) with a 17 mm box spanner. • Remove the complete rear wheel (B) from axle (C). Remove the tyres, see ‘Repairing the tyre of the rear •... -
Page 11: Adjusting The Pressure Brake
- towards the wheel: brake tighter. • Tighten the screw in the set position. Replacement and repair activities for the Ibis with 12,5” or 16” rear wheels and PowerSupport 2.3.1 Rear wheels To ensure proper operation of the wheelchair, it is very important that the tyres are kept at the correct pressure. -
Page 12: Replacing The 12,5" Rear Wheel
‘Replacing the tyre of the drive wheel’. Fit the new wheel in the reverse order. 2.3.4 Replacing the rear wheel of Ibis with PowerSupport (option) When replacing a rear wheel, the wheel may not be braked. Replace the rear wheel as follows: •... -
Page 13: Repairing The Tyre Of The Rear Wheel
Maintenance 2.3.5 Repairing the tyre of the rear wheel When repairing the inner tube of a rear wheel, the wheel should be braked, so that it does not rotate at the same time. Repair a flat tyre as follows: • Support the wheelchair in such a way that the wheel is elevated. -
Page 14: Adjusting The Brake Of The Ibis With 12,5" Rear Wheels
Maintenance Adjusting the brake of the Ibis with 12,5” rear 2.3.7 wheels The wheelchair is equipped with drum brakes on the rear wheels, which can be either operated by hand by the user, or with the foot by the person pushing the wheelchair. -
Page 15: Replacing The Controller Of The Ibis Powersupport (Option)
Maintenance 2.3.10 Replacing the controller of the Ibis PowerSupport (option) Replace the controller as follows: • Cut the Ty-Raps that hold the cable. • Loosen three cross-head screws (A). Remove the controller. Fit a new controller in the reverse order. -
Page 16: Replacing A Fork
Maintenance 2.4.2 Replacing a fork Replace the fork as follows: • Remove the wheel from the fork; see 'Replacing a wheel'. • Remove screw (A) with a Phillips screwdriver. • Remove cap (B). • Loosen bolt (C) using a 19 mm box spanner and prevent nut (D) from moving with a 19 mm ring spanner. -
Page 17: Technical Specification
Technical specifications Technical specification Description 12,5” / 16” 20” / 22” / 24” Diameter rear wheels 7” 7” Diameter front wheels Tyre pressure rear wheels 2,5 bar 7,5 bar Max. user weight 160 kg 160 kg Total length 1040 mm 1040 mm Total width 625 mm... -
Page 18: Software Upgrade Manual Powersupport
Software upgrade manual PowerSupport Software upgrade manual PowerSupport Installing the update software Start the “pssetup.exe” installation form the CD / USB stick. Choose English For an English Installation procedure and press “OK” . Press “Next >”. - Page 19 Software upgrade manual PowerSupport Select “Install for anyone using this computer” and press “Next >”. When “Install just for me” is selected, only the current user will be able to use the software. Select the destination folder for the software and press “Next >”.
- Page 20 Software upgrade manual PowerSupport Choose a Start Menu folder , for placing the shortcuts, and press “Next >”. Wait for the installation to finish and press “Next >”.
-
Page 21: Upgrading
Software upgrade manual PowerSupport Check the box in front of “Start PowerSupport Upgrader” off and press “Finish”. Upgrading 4.2.1 Why and when to upgrade The upgrade of the PowerSupport should be carried out when one of the following parts are replaced - Motor Left - Motor Right - Battery... -
Page 22: Connecting The Cables
Software upgrade manual PowerSupport 4.2.3 Connecting the cables Connect the COM-cable to the PowerSupport and to the laptop/pc. Activate the PowerSupport by turning the switch in to one of the levels and pressing the lever . 4.2.4 Upgrading the Software Star t the “PowerSupport Upgrader”... - Page 23 Software upgrade manual PowerSupport Now press on Communication and select the COM-Port that is used for the PowerSupport and press OK . Now select “File” and press “Open”. Now select the file you need for upgrading the PowerSupport , you can choose for a 5 or a 7- leveled version of the PowerSupport. These numbers correspond with the version of the PowerSupport you are upgrading.
- Page 24 Software upgrade manual PowerSupport When you get this error the version number of the PowerSupport is lower then 1.2. When this is the case you should first perform the PreUpgrade, therefore you should continue the upgrade from sect ion 3.2.5. Press “Start”...
-
Page 25: Upgrading With Preupgrade (Only For Version Number 1.1 And Older )
Software upgrade manual PowerSupport Press “OK” when the upgrade is completed to finish the upgrade. 4.2.5 Upgrading with PreUpgrade (Only for version number 1.1 and older ) Select “File” and the press “Open”. Now select the “PreUpgrade PMU.upk” and press “Open”. - Page 26 Software upgrade manual PowerSupport Press Start and wait for the PreUpgrade to finish. Now select “File” and the press “Open”. Now select the file you need for upgrading the PowerSupport, you can choose for a 5 or a 7- leveled version of the PowerSupport. These numbers correspond with the version of the PowerSupport you are upgrading.
- Page 27 Software upgrade manual PowerSupport Press Start and wait for the upgrade to finish. Press “OK” when the upgrade is completed to finish the upgrade.
-
Page 28: Checking The System
Software upgrade manual PowerSupport 4.2.6 Checking the system Disconnect the COM-Cable to the PowerSupport and check the following points - Turn the system on and check if the system goes on. - Does the system give support? - Is there a distinctive difference between the different levels? 4.2.7 Troubleshooting Has the check showed the system doesn’t function as it should or the Upgrade gave an... -
Page 29: Spare Parts
Spare parts Spare parts Use of the parts lists This document is meant as a reference book to be used to order parts for the wheelchair that is shown on the front cover. How to order When ordering parts, please specify: •... -
Page 30: Overview Spare Parts
07 Rear wheel 20” / 22” / 24” ..........................37 08 Rear wheel 12,5” ............................. 38 5.3 Rear wheel 16” and Ibis PowerSupport ......................39 11 Brake system 16" rear wheel .......................... 39 12 Brake system Ibis PowerSupport ........................40 14 Rear Wheel 16"... -
Page 31: Sedeo Pro Seating System Interface
Spare parts Interface 01 Sedeo Pro seating system interface Article number Units Description 1 - 3 1010958 Seat frame Sedeo Pro... -
Page 32: Carrier
Washer flat M8 D125A/vz 00000.4041 Hex bolt M8X55 9001140 Tube cap 1002789 Screw 4X16 1014931 Carrier front frame grey metallic 9006988 Label IBIS 1003247 Label back rest angle (sticker sheet) 16-17 1018551 Logo Breezy Identification plate 19-23 1008040 Anti tip (set) 00000.4311... -
Page 33: Seat Post
Spare parts 03 Seat post Article number Units Description 00000.4014 Cyl cap screw M6X50 02010.7682 Lower hinge block 22mm 1010958 Sedeo seating frame 00000.2002 Washer flat M6 DIN125A/VZ 1003247 Label seat height symbol (sticker sheet) 1015513 Seat angle indicator (P) 1008044 Seat angle indicator 1003247... -
Page 34: Brake System 20" / 22" / 24" Rear Wheel
Spare parts 04 Brake system 20” / 22” / 24” rear wheel Article number Units Description Lock nut M12 DIN 985 1,2,5,6,13 1015726 Wheel axle Washer flat M12 DIN 125-1a 3a,4,7-9,12,15 1015724 Wheel plate left 3b,4,7-9,12,15 1015725 Wheel plate right 1003247 Label wheels (sticker sheet) Lock nut M10 DIN 985... -
Page 35: Brake System 12,5" Rear Wheel
Spare parts 05 Brake system 12,5” rear wheel Article number Units Description 9000915 Wheel,12,5",air,with brake,assy,left 1002790 Wheel,12,5",PU,with brake,assy,left 9001076 Wheel,12,5",air,with brake,assy,right 1002791 Wheel,12,5",PU,with brake,assy,right 00000.1704 Locknut M12 D985/8/vz 9001199 Brake complete left 9001200 Brake complete right 00001.1409 Label footbrake 00000.1704 Lock nut M12 00000.2005 Washer flat M12... -
Page 36: Swivel Castor
Spare parts 06 Swivel Castor Article number Units Description 1008053 Front fork 00000.4310 Hex bolt M12X50 00000.6007 Shim 12X18X1 00000.1802 Cap lock nut M8 9002729 Lock nut M12 00000.4001 Cyl cap screw M8X75 1001446 Wheel,castor,7",air,assy 1001447 Wheel,castor,7",PU,assy... -
Page 37: Rear Wheel 20" / 22" / 24
Spare parts 07 Rear wheel 20” / 22” / 24” Article number Units Description 03877.0100 Wheel 20" air 1002746 Wheel 20" PU 03875.0100 Wheel 22" air 1002748 Wheel 22" PU 03860.1100 Wheel 24" air 1002750 Wheel 24" PU 1003690 Tube 20" 1003691 Tube 22"... -
Page 38: Rear Wheel 12,5
Spare parts 08 Rear wheel 12,5” Article number Units Description 1001138 Wheel 12,5" air 1001166 Wheel 12,5" PU 1003689 Tyre 12,5" 01010.3300 Tube 12,5" 00001.1461 Label tyre pressure 2.5 Bar (sticker sheet) -
Page 39: Brake System 16" Rear Wheel
Spare parts Rear wheel 16” and Ibis PowerSupport 11 Brake system 16" rear wheel Article number Units Description 00000.1704 Lock nut M12 00000.2005 Washer flat M12 9001254 Interface plate 9001183 Brake assy left - double action 9001184 Brake assy right - double action... -
Page 40: Brake System Ibis Powersupport
1018251 PowerSupport set complete, for of IBIS Sedeo Pro, incl. charger 1018580 PowerSupport set PU complete, for of IBIS X-Series, incl. charger 1018581 PowerSupport set PU complete, for of IBIS Sedeo Pro, incl. charger 1020859 PU tire for PowerSupport wheel... -
Page 41: Rear Wheel 16
Spare parts 14 Rear Wheel 16" Article number Units Description 9002038 Wheel 16" air 9002039 Wheel 16" PU 1003693 Tyre 16" 1003694 Tube 16" 00001.1461 Label tyre pressure 2.5 Bar... -
Page 42: Battery Pack
Spare parts 15 Battery pack Article number Units Description 00000.4036 Hex headcap screw m5x12 Din912 00000.2101 Washer flat 3xD M5 D9021/VZ 9005613 Frame mount Powersupport Battery pack 1003710 P-clip 7/8 00000.1700 Locknut M5 D985/8/VZ 1010223 Powersupport Battery pack 00000.3603 Screw cross recessed m6x16 Din965 00000.2102 Washer flat 3xD M6 D9021/VZ 00000.1701... -
Page 43: Remote Ibis Powersupport
Spare parts 16 Remote Ibis PowerSupport Article number Units Description 1010220 PowerSupport remote 1010224 PowerSupport remote housing (5 positions) 1008314 PowerSupport knob for speed potentiometer 1010221 PowerSupport throttle lever incl. spring 1015604 PowerSupport remote holder 9006240 Taptite M5x10 hex head flange... -
Page 44: Electrical Tilt
Spare parts Options 17 Electrical tilt Article number Units Description 1003391 Electrical tilt 00355.5573 AMP plug 2-polig 00000.1404 Shaft lock washer 7MM 9001398 Hinge block 9001509 Axle 9001282 Actuator for electrical tilt 9001128 Gasspring hinge block 00000.2203 Spring washer SW8 00000.4312 Hex bolt M8x16 00000.3608... -
Page 45: Electrical Lift
Spare parts 18 Electrical lift Article number Units Description 1-19 No longer available 00000.4014 Cyl cap screw M6X50 02010.6182 Upper block 00000.2002 Washer flat M6 DIN125A/VZ 02010.7682 Lower hinge block 22 mm No longer available 00000.3608 Screw M6X12 00000.1404 Shaft lock washer 7MM 9001398 Hinge block 9001154... -
Page 46: Supplementation Set For Electrical Adjustments
Spare parts 19 Supplementation set for electrical adjustments Article number Units Description 1-20 1015898 Supplementation set for electrical adjustments 008.00000.251 Sticker, Charger socket 00000.1700 Locknut M5 D985/8/VZ 00000.2101 Washer flat 3xD M5 D9021/VZ 4,5,6 1003284 Electrical control 00355.4301 Fuse holder 005.01190.000 Blade fuse 15A 9007369... -
Page 47: Coupled Push Brake 20" / 22" / 24" Rear Wheel
Spare parts 20 Coupled push brake 20” / 22” / 24” rear wheel Article number Units Description 1a,2,3a 9007291 Coupled push brake, left 1b,2,3b 9007292 Coupled push brake, right 9007280 Brake, passive, left 9007261 Brake, passive, right 9001515 Cable for coupled brake 9007260 Brake, active, left 9007279... -
Page 48: Tilt Operated By User
Spare parts 21 Tilt operated by user Article number Units Description 1008460 Self-tilt 60-90 kg 1-11 1008461 Self-tilt 90-120 kg Screw Cross recessed m5x12 Din965 1005144 Mounting plate tilt lever 1015330 Torx socket head screw M6x8 iso 14579 Precote 85 (100 pieces) 00000.6410 Handle tilt adjustment Nut M5 Self prevailing Din985... - Page 49 Drawing Position Changes Updated cover layout Update copyright text Update warranty text 17-18 Replaced articles numbers 9000872+9002232 with article number 1018551 Logo Breezy 21-09-2020 Version 2020v1.0 Page Drawing Position Changes Removed 900153 “Spacer 8x13x6” from table and drawing Changed 00000.4114 “Hexagon bolt M8x60” to 00000.4041 “Hexagon socket screw (DIN912) M8x55”...
- Page 50 PowerSupport set complete, for of IBIS Sedeo Pro, incl. charger...
