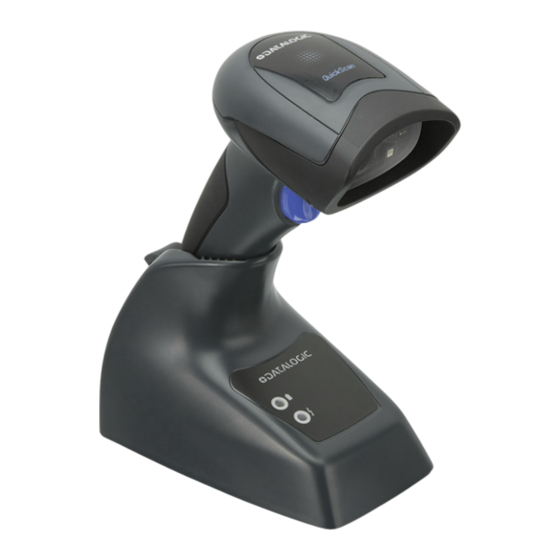

Datalogic QD21X1 Product Reference Manual

General purpose handheld linar imager barcode reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

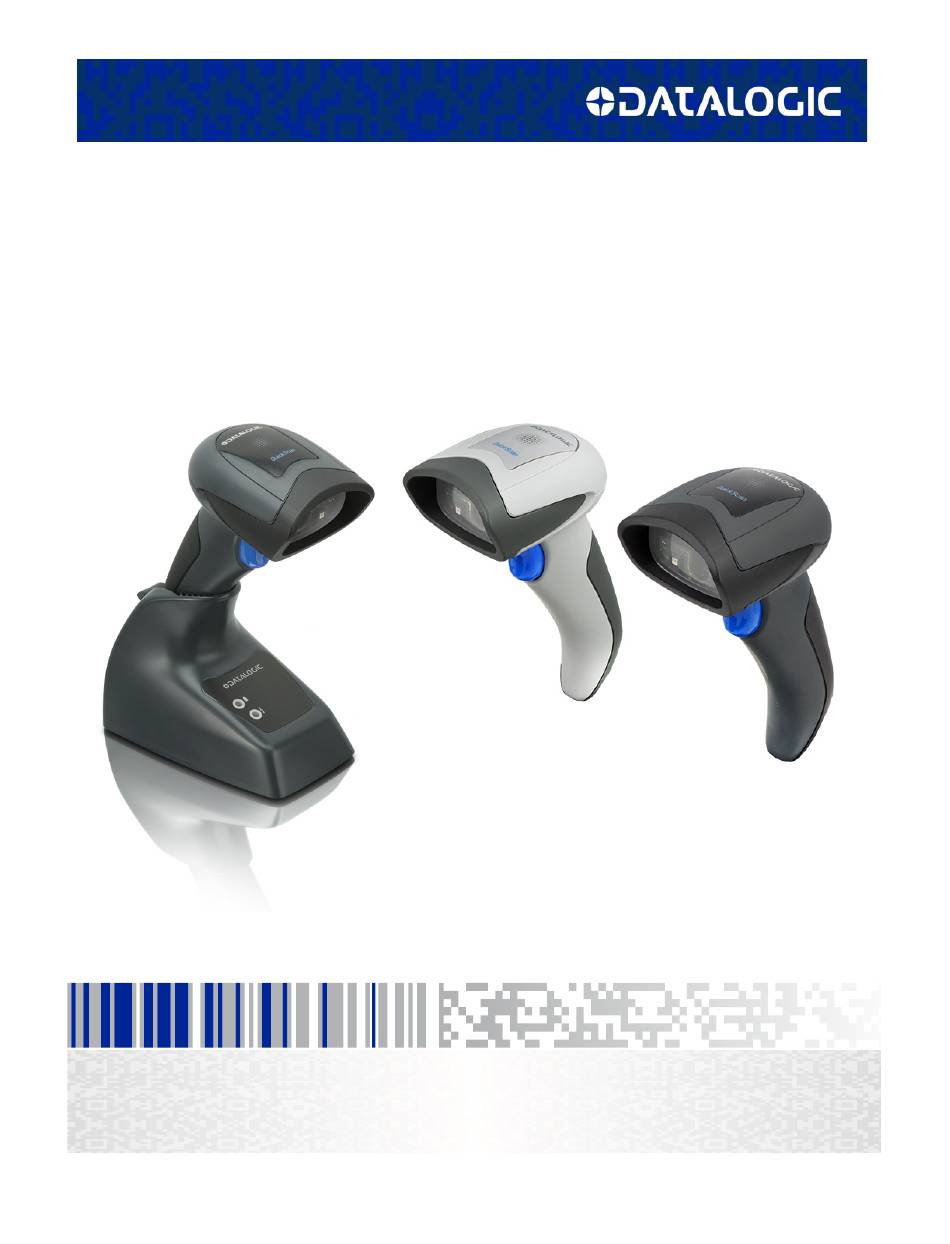

QuickScan
I
TM
QD21X1/QM21X1/QBT21X1
General Purpose Handheld
Linear Imager Barcode Reader
Product Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QD21X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datalogic QD21X1

Summary of Contents for Datalogic QD21X1

  • Page 1 All manuals and user guides at all-guides.com QuickScan QD21X1/QM21X1/QBT21X1 General Purpose Handheld Linear Imager Barcode Reader Product Reference Guide...
  • Page 2 Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U. QuickScan is a trademark of Datalogic S.p.A. and/or its affiliates, regis- tered in the U.S. All other brand and product names may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    About this Guide ........................................1 Manual Overview ........................................1 Manual Conventions ........................................ 2 Other Resources ........................................2 Technical Support ........................................2 Datalogic Website Support ..................................... 2 Reseller Technical Support ..................................... 2 Telephone Technical Support ..................................2 SETUP.......................................... 3 About the Reader ........................................3 Unpacking ..........................................
  • Page 4 Flash Off Time ....................................... 88 Green Spot Duration ......................................88 Symbologies ......................................89 Disable All Symbologies ......................................90 Coupon Control ........................................90 UPC-A ............................................91 UPC-A Enable/Disable ....................................91 UPC-A Check Character Transmission ................................ 91 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 5 All manuals and user guides at all-guides.com Expand UPC-A to EAN-13 ....................................92 UPC-A Number System Character Transmission ............................92 In-Store Minimum Reads .....................................93 UPC-E ............................................94 UPC-E Enable/Disable ....................................94 UPC-E Check Character Transmission ................................94 Expand UPC-E to EAN-13 .....................................95 Expand UPC-E to UPC-A ....................................95 UPC-E Number System Character Transmission ............................96 UPC-E Minimum Reads ....................................96 EAN 13 .............................................97...
  • Page 6 Interleaved 2 of 5 CIP HR Enable/Disable ..............................167 Datalogic 2 of 5 ........................................168 Datalogic 2 of 5 Enable/Disable ................................168 Datalogic 2 of 5 Check Character Calculation ............................168 Datalogic 2 of 5 Check Character Transmission ............................169 Datalogic 2 of 5 Minimum Reads ................................169 Datalogic 2 of 5 Decoding Level .................................170...
  • Page 7 All manuals and user guides at all-guides.com Datalogic 2 of 5 Length Control .................................170 Datalogic 2 of 5 Set Length 1 ..................................171 Datalogic 2 of 5 Set Length 2 ..................................172 Datalogic 2 of 5 Interdigit Maximum Ratio ..............................173 Datalogic 2 of 5 Character Correlation ..............................175 Datalogic 2 of 5 Stitching ....................................175...
  • Page 8 BC412 Enable/Disable ....................................240 BC412 Check Character Calculation ................................241 BC412 Minimum Reads ....................................241 BC412 Decoding Level ....................................242 BC412 Length Control ....................................243 BC412 Set Length 1 .....................................244 BC412 Set Length 2 .....................................245 Plessey ..........................................246 Plessey Enable/Disable ....................................246 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 9 All manuals and user guides at all-guides.com Plessey Check Character Calculation ................................247 Plessey Check Character Transmission ..............................247 Plessey Length Control ....................................248 Plessey Set Length 1 ....................................249 Plessey Set Length 2 ....................................250 Plessey Minimum Reads ....................................251 Plessey Decoding Level ....................................252 Plessey Stitching ......................................253 Plessey Character Correlation ..................................253 MESSAGE FORMATTING..................................
  • Page 10 Single Press and Release Keys ..................................339 Interface Type PC AT PS/2 or USB-Keyboard ..............................340 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ........................342 Digital Interface ........................................344 IBM XT ...........................................346 Microsoft Windows Codepage 1252 ..................................348 viii QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 11: Introduction

    Introduction With rich feature sets and extensive options, the QuickScan™ product series from Datalogic represents the premium level of data collection equipment for general purpose applications. The QuickScan 21X1 readers have enhanced optics with improved motion tolerance, allowing codes placed on fast moving objects to be easily and quickly captured.

  • Page 12: Manual Conventions

    Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information.

  • Page 13: Setup

    All manuals and user guides at all-guides.com Chapter 2 Setup About the Reader One distinctive feature offered by the reader is a very wide scan angle which can read long linear bar codes, such as utility bills. Whether used in Single Trig- ger or Continuous Mode, the ergonomic design of the reader will help to pro- mote comfortable handling during extended periods of use.

  • Page 14: Setting Up The Reader

    If not, contact Current versions of the Product Reference Guide (PRG), Quick Reference Guide (QRG), the Datalogic Aladdin™ Configuration application, software/firmware and any additional manuals, instruction sheets and utilities for this product can be downloaded from the website listed on the back cover of this manual.
  • Page 15 All manuals and user guides at all-guides.com Setting Up the Reader connector into the socket on the RS-232 cable connector and the AC Adapter plug into a standard power outlet. Connect the reader to a USB port on the terminal/PC using the USB Connection: correct USB cable for the interface type you ordered.

  • Page 16: Base Station Connection And Routing

    (I/F) Cable connectors into their respective ports in the underside of the Base Station. Power Cable Cable Cable Stopper 3. After the cables are plugged in, reinsert the Cable Stopper. Cable Stopper reinserted QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 17 All manuals and user guides at all-guides.com Setting Up the Reader 4. Connect the Base Station power adapter to an AC wall outlet. Figure 3. Connecting the Base Station Wall plug Connector I/F Cable AC/DC Adapter DC Power Cord Base Station Verify before connection that the reader’s cable type is com- Host Connection:...

  • Page 18: Locking The Reader To The Base

    To Lock the Reader in the Base 1. Insert the Reader into the Base. The lock lever rests in its natural disen- gaged position toward the bottom of the Base. Figure 5. Lock lever disengaged QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 19: System And Network Layout

    All manuals and user guides at all-guides.com Setting Up the Reader 2. Engage the locking mechanism by pushing up the lever as far as it will go. Figure 6. Lever in locked position It is good practice to put the reader in the locked condition at the end of the working shift, or when not in use for an extended period of time.

  • Page 20: Connecting The Base When Security Pin Is Enabled

    Station was discovered. Two green LED flashes after this tone indicates that more than one Base Station was discovered and the reader did not link. Three LED flashes after this tone indicate a security error. QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 21: Linking A Bt Reader To A Pc

    Link to a PC in Server Mode 3. Use the host computer’s Bluetooth manager to “Discover new devices” and select "Datalogic Scanner." If you receive an error message, it may be nec- essary to disable security on the device. 4. Select “connect” on the PC to link the reader to the PC. Use an RS-232 ter- minal program to see incoming data on the port designated by the com- puter's Bluetooth manager.
  • Page 22 Link to PC in HID 3. Use the host computer’s Bluetooth manager to “Discover new devices” and select “Datalogic Scanner.” If you receive an error message, it may be nec- essary to disable security on the device. 4. Use a text editor to see incoming data on the port designated by the com- puter's Bluetooth manager.

  • Page 23: Using The Bc20Xx™ Radio Base

    All manuals and user guides at all-guides.com Setting Up the Reader Using the BC20xx™ Radio Base Radio Base LEDs LEDs on the QuickScan Base provide information about the Base as well as bat- tery charging status, as shown in Figure Figure 8.

  • Page 24: Charging The Battery Pack

    The LEDs on the base (shown in Table 1 on page 13) will indicate the status of the battery. Before using the battery, read “Battery Safety” in the following section. Datalogic rec- ommends annual replacement of rechargeable battery packs to ensure maximum per- formance. NOTE...

  • Page 25: Battery Safety

    Always charge the battery at 32° – 104°F (0° - 40°C) temperature range. CAUTION Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage the device and void your warranty. CAUTION Do not disassemble or modify the battery.
  • Page 26 Collect and recycle waste batteries separately from the device to comply with European Directive 2006/66/EC, 2011/65/EU, 2002/96/EC, 2012/19/EU and subsequent modifications, US and China regulatory and other laws and regula- tions about the environment. QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 27: Replacing The Battery Pack

    All manuals and user guides at all-guides.com Setting Up the Reader Replacing the Battery Pack Before proceeding, read “Battery Safety” on the preceding pages. Datalogic recom- mends annual replacement of rechargeable battery packs to ensure maximum perfor- mance. NOTE 1. Using a coin or screwdriver, unscrew the captive screw located on the bot- tom of the scanner handle until the battery pack is disengaged.

  • Page 28: Programming

    These settings allow you to enable/disable symbologies, set label lengths, require check digit, etc. Software Version Transmission The software version of the device can be transmitted over the RS-232 and Keyboard interfaces by scanning the following label. Transmit Software Version QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 29: Resetting The Product Configuration To Defaults

    All manuals and user guides at all-guides.com Resetting the Product Configuration to Defaults Resetting the Product Configuration to Defaults If you aren't sure what programming options are in your reader, or you've changed some options and want to restore the Custom Default Configuration that may have been saved in the reader, scan the Restore Custom Default Configu- ration...
  • Page 30 All manuals and user guides at all-guides.com QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 31: Interfaces

    All manuals and user guides at all-guides.com Chapter 3 Interfaces Interface Selection Each reader model will support one of the following sets of host interfaces: USB Models (all are 2.0 full speed) USB KBD USB COM STD USB OEM USB Composite RS-232 / Keyboard Wedge Models RS-232 (Standard) Keyboard Wedge...
  • Page 32 $P,HA45,P  Set USB-OEM Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page Select USB-OEM a . Downloa d the corre ct US B Com drive r from www.da ta logic.com QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 33 All manuals and user guides at all-guides.com Configuring the Interface hbv_l ^oa cb^qr obp $P,HA29,P  AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT $P,HA11,P  Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK ...
  • Page 34 Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard Select KBD-IBM-MB Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx Select KBD-DIG-VT USB Keyboard for Apple computers Select USB-KBD-APPLE Select USB Composite (KEYBOARD + COM) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 35: Configuration Using Bar Codes

    Datalogic Aladdin™ is a multi-platform utility program providing a quick and user-friendly configuration method via the RS-232/USB-COM interface. the Aladdin utility is available on the Datalogic website. Aladdin allows you to pro- gram the scanner by selecting configuration commands through a user-friendly graphical interface running on a PC.

  • Page 36: Configuration Parameters

    4. Complete the programming sequence by scanning the ENTER/EXIT PRO- GRAMMING bar code to exit Programming Mode. For more detailed descriptions, programming information and examples for setting selected configuration items, see References, starting on page 279. QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 37: Global Interface Features

    All manuals and user guides at all-guides.com Global Interface Features GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. Global Interface Features The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual: •...

  • Page 38: Usb Suspend Mode

    Global Interface Features USB Suspend Mode This setting enables/disables the ability of USB interfaces to enter suspend mode. $CUSSE00  USB Suspend Mode = Disable $CUSSE01  DEFAULT USB Suspend Mode = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 39: Rs-232 Only Interface

    All manuals and user guides at all-guides.com RS-232 ONLY Interface Use the programming bar codes in this section if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in Chapter 6, RS-232 and USB-COM Interfaces.

  • Page 40: Baud Rate

    Baud Rate = 1200 $CR2BA01  Baud Rate = 2400 $CR2BA02  Baud Rate = 4800 $CR2BA03  DEFAULT Baud Rate = 9600 $CR2BA04  Baud Rate = 19,200 $CR2BA05  Baud Rate = 38,400 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 41: Data Bits

    All manuals and user guides at all-guides.com RS-232 ONLY Interface Enter/Exit Programming Mode Baud Rate (continued) $CR2BA06  Baud Rate = 57,600 $CR2BA07  Baud Rate = 115,200 Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data.

  • Page 42: Stop Bits

    Set the number of stop bits to match host device requirements. $CR2ST00  DEFAULT 1 Stop Bit $CR2ST01  2 Stop Bits QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 43: Parity

    All manuals and user guides at all-guides.com RS-232 ONLY Interface Enter/Exit Programming Mode Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements.

  • Page 44: Handshaking Control

     DEFAULT Handshaking Control = RTS $CR2HC01  Handshaking Control = RTS/CTS $CR2HC02  Handshaking Control = RTS/XON/XOFF $CR2HC03  Handshaking Control = RTS On/CTS  $CR2HC04 Handshaking Control = RTS/CTS Scan Control QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 45: Rs-232 And Usb-Com Interfaces

    All manuals and user guides at all-guides.com RS-232 and USB-COM Interfaces The programming bar codes in this chapter allow modifications to the standard RS-232 and USB-COM interfaces. on page 36 NTERCHARACTER ELAY on page 37 ASCII BEL on page 37 OT ON on page 39 ACK C...

  • Page 46: Intercharacter Delay

    Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the begin- ning. CANCEL 00 = No Intercharacter Delay DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 47: Beep On Ascii Bel

    All manuals and user guides at all-guides.com RS-232 and USB-COM Interfaces Enter/Exit Programming Mode Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a <BEL> char- acter is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event.

  • Page 48: Ack Nak Options

    ACK/NAK Protocol = Disable ACK/NAK $CR2AE01  ACK/NAK Protocol = Enable for label transmission $CR2AE02  ACK/NAK Protocol = Enable for host-command acknowledge $CR2AE03  ACK/NAK Protocol = Enable for label transmission and host- command acknowledge QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 49: Ack Character

    All manuals and user guides at all-guides.com RS-232 and USB-COM Interfaces Enter/Exit Programming Mode ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See "ACK Character"...

  • Page 50: Ack Nak Timeout Value

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 ACK NAK Timeout value is 200ms DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 51: Ack Nak Retry Count

    All manuals and user guides at all-guides.com RS-232 and USB-COM Interfaces Enter/Exit Programming Mode ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmis- sion due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.

  • Page 52: Ack Nak Error Handling

    ACK NAK Error Handling = Ignore Errors Detected $CR2EH01  ACK NAK Error Handling = Process Error as Valid ACK Character  $CR2EH02 ACK NAK Error Handling = Process Error as Valid NAK Character QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 53: Indicate Transmission Failure

    All manuals and user guides at all-guides.com RS-232 and USB-COM Interfaces Enter/Exit Programming Mode Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indi- cate a transmission failure while in ACK/NAK mode $CR2TF00  Indicate Transmission Failure = Disable Indication $CR2TF01 ...

  • Page 54: Enable Character

    8-bit data is not recognized when the option Data Bits on page 31 has been set as 7 Data Bits. NOTE $CR2EC Select Enable Character Setting 0x45 = Enable Character is ‘E’ DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 55: Keyboard Interface

    All manuals and user guides at all-guides.com Keyboard Interface Use the programming bar codes in this chapter to select options for USB Key- board and Wedge Interfaces. on page 46 OUNTRY on page 49 TATE on page 50 UMLOCK on page 50 EYBOARD UMERIC EYPAD...

  • Page 56: Country Mode

    ● Italian ● French ● German ● English (British) ● Swedish ● Belgian ● Danish ● Norwegian ● Swiss $CKBCO00  DEFAULT Country Mode = English (USA) $CKBCO01  Country Mode = Belgian QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 57 All manuals and user guides at all-guides.com Keyboard Interface Enter/Exit Programming Mode Country Mode (continued) $CKBCO02  Country Mode = English (British) $CKBCO11  Country Mode = Croatian $CKBCO0E  Country Mode = Czech $CKBCO03  Country Mode = Danish $CKBCO04 ...
  • Page 58 Country Mode = Japanese 106-key $CKBCO07  Country Mode = Norwegian $CKBCO12  Country Mode = Polish $CKBCO08  Country Mode = Portuguese (Brazilian) $CKBCO10  Country Mode = Romanian $CKBCO0F  Country Mode = Slovakian QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 59: Caps Lock State

    All manuals and user guides at all-guides.com Keyboard Interface Enter/Exit Programming Mode Country Mode (continued) $CKBCO09  Country Mode = Spanish (Latin American) $CKBCO0A  Country Mode = Swedish $CKBCO0B  Country Mode = Swiss Caps Lock State This option specifies the format in which the reader sends character data. This applies to Keyboard Wedge interfaces.

  • Page 60: Numlock

    This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad. $CKBKP00  DEFAULT Keyboard Numeric Keypad = Standard Keys $CKBKP01  Keyboard Numeric Keypad = Numeric Keypad QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 61: Keyboard Send Control Characters

    All manuals and user guides at all-guides.com Keyboard Interface Enter/Exit Programming Mode Keyboard Send Control Characters This feature is used by the Keyboard Wedge and USB Keyboard interfaces. It specifies how the reader transmits ASCII control characters to the host. Refer- ence Appendix E, for more information about control characters.

  • Page 62: Wedge Quiet Interval

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL OA = Quiet Interval of 100 ms DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 63: Intercode Delay

    All manuals and user guides at all-guides.com Keyboard Interface Enter/Exit Programming Mode Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. See "Intercode Delay" on page 289 for more detailed programming instructions.

  • Page 64: Usb Keyboard Speed

    USB Keyboard Speed = 1ms $CKBSP02  USB Keyboard Speed = 2ms $CKBSP03  USB Keyboard Speed = 3ms $CKBSP04  USB Keyboard Speed = 4ms $CKBSP05  USB Keyboard Speed = 5ms QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 65 All manuals and user guides at all-guides.com Keyboard Interface Enter/Exit Programming Mode USB Keyboard Speed (continued) $CKBSP06  USB Keyboard Speed = 6ms $CKBSP07  USB Keyboard Speed = 7ms $CKBSP08  USB Keyboard Speed = 8ms $CKBSP09  USB Keyboard Speed = 9ms $CKBSP0A ...
  • Page 66 All manuals and user guides at all-guides.com Enter/Exit Programming Mode USB Keyboard Speed NOTES QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 67: Usb-Oem Interface

    All manuals and user guides at all-guides.com USB-OEM Interface on page 58 USB-OEM D EVICE SAGE on page 58 USB-OEM I NTERFACE PTIONS Introduction Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter to specif- ically configure for the USB-OEM interface.

  • Page 68: Usb-Oem Device Usage

    Options are: • Obey — Obey Reader Configuration Host Commands • Ignore — Ignore Reader Configuration Host Commands $CIFO101  USB-OEM Interface Options = Obey  $CIFO102 DEFAULT USB-OEM Interface Options = Ignore QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 69: Data Format

    All manuals and user guides at all-guides.com Data Format on page 60 LOBAL REFIX UFFIX on page 61 AIM ID LOBAL starting on page 62 ABEL Label ID: Pre-loaded Sets on page 62 • Label ID: Set Individually Per Symbology on •...

  • Page 70: Global Prefix/Suffix

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL No Global Prefix DEFAULT Global Suffix = 0x0D (CR) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 71: Global Aim Id

    All manuals and user guides at all-guides.com Data Format Enter/Exit Programming Mode Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See "Global AIM ID"...

  • Page 72: Label Id

    Any custom configuration or custom defaults will be lost. CAUTION  DEFAULT Label ID Pre-loaded Set = USA Set  Label ID Pre-loaded Set = EU Set QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 73: Label Id: Set Individually Per Symbology

    All manuals and user guides at all-guides.com Data Format Enter/Exit Programming Mode Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. This setting requires the scanning of bar codes from multiple sections. See "Label ID: Set Individually Per Symbology"...

  • Page 74: Label Id Symbology Selection

    Set UPC-A/P2 Label ID Character(s) $CA5ID Set UPC-A/P5 Label ID Character(s) $CA8ID Set UPC-A/GS1-128 Label ID Character(s) $CEBID Set UPC-E Label ID Character(s) $CE2ID Set UPC-E/P2 Label ID Character(s) $CE5ID Set UPC-E/P5 Label ID Character(s) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 75 All manuals and user guides at all-guides.com Data Format Enter/Exit Programming Mode Label ID Symbology Selection (continued) $CE8ID Set UPC-E/GS1-128 Label ID Character(s) $C3BID Set EAN 13 Label ID Character(s) $C32ID Set EAN 13/P2 Label ID Character(s) $C35ID Set EAN 13/P5 Label ID Character(s) $C38ID Set EAN 13/GS1-128 Label ID Character(s) $C8BID...
  • Page 76 Set GS1 DataBar Limited Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $CP3ID Set Code 32 Label ID Character(s) $CCCID Set Code 39 CIP Label ID Character(s) $CC8ID Set Code 128 Label ID Character(s) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 77 Set Interleaved 2 of 5 Label ID Character(s) $CHRID Set Interleaved 2 of 5 CIP HR Label ID Character(s) $CD2ID Set Datalogic 2 of 5 CIP HR Label ID Character(s) $CACID Set ABC Codabar Label ID Character(s) $CC1ID Set Code 11 Label ID Character(s)
  • Page 78 Set Concatenated ISBT 128 Label ID Character(s) $CMSID Set MSI Label ID Character(s) $CC9ID Set Code 93 Label ID Character(s) $CCFID Set Codablock F Label ID Character(s) $CCRID Set Code 4 Label ID Character(s) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 79 All manuals and user guides at all-guides.com Data Format Enter/Exit Programming Mode Label ID Symbology Selection (continued) $CCC5ID Set Code 5 Label ID Character(s) $CF2ID Set Follett 2 of 5 Label ID Character(s) $CISID Set ISBN Label ID Character(s) $CI8ID Set Concatenated ISBT Label ID Character(s) $CALID Set Anker Plessey Label ID Character(s)

  • Page 80: Set Global Mid Label Id Character(S)

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL No Global Mid Label ID DEFAULT Character(s) 00000000000000000000 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 81: Case Conversion

    All manuals and user guides at all-guides.com Data Format Enter/Exit Programming Mode Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case It may be necessary to switch device usage when connecting two readers/scanners of the same type to a POS system.

  • Page 82: Character Conversion

    If the character to convert in a pair is FF, then no conversion is done. See "Character Conversion" on page 297 for more detailed programming instructions. $CLFCH Configure Character Conversion 0xFFFFFFFFFFFFFFFF DEFAULT (No character conversion) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 83: Reading Parameters

    All manuals and user guides at all-guides.com Reading Parameters on page 74 on page 82 LED D OUBLE IMEOUT URATION on page 76 on page 83 ABEL IMEOUT on page TAND RIGGERED IMEOUT on page 77 EEPER NDICATORS on page 77 on page 85 OWER LERT...

  • Page 84: Double Read Timeout

    Double Read Timeout = 0.1 Second $CSNDR14  Double Read Timeout = 0.2 Second $CSNDR1E  Double Read Timeout = 0.3 Second $CSNDR28  Double Read Timeout = 0.4 Second $CSNDR32  Double Read Timeout = 0.5 Second QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 85 All manuals and user guides at all-guides.com Reading Parameters Enter/Exit Programming Mode Double Read Timeout (continued) $CSNDR3C  DEFAULT Double Read Timeout = 0.6 Second  $CSNDR46 Double Read Timeout = 0.7 Second $CSNDR50  Double Read Timeout = 0.8 Second $CSNDR5A ...

  • Page 86: Label Gone Timeout

    Select Label Gone Timeout Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Timeout of 160 ms DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 87: Led And Beeper Indicators

    All manuals and user guides at all-guides.com Reading Parameters Enter/Exit Programming Mode LED and Beeper Indicators Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. $CBPPU00  Power On Alert = Disable (No Audible Indication) $CBPPU01 ...

  • Page 88: Good Read: When To Indicate

    This option, which uses CTS, is only valid for Q21XX models with RS-232 interfaces. NOTE $CBPIN00  DEFAULT Indicate Good Read = After Decode $CBPIN01  Indicate Good Read = After Transmit $CBPIN02  Indicate Good Read = After CTS Goes Inactive, Then Active QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 89: Good Read Beep Type

    All manuals and user guides at all-guides.com Reading Parameters Enter/Exit Programming Mode Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. $CBPTY00  DEFAULT Good Read Beep Type = Mono $CBPTY01  Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high fre-...

  • Page 90: Good Read Beep Length

    Good Read Beep Length = 100 msec $CBPLE0C  Good Read Beep Length = 120 msec $CBPLE0E  Good Read Beep Length = 140 msec $CBPLE10  Good Read Beep Length = 160 msec QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 91: Good Read Beep Volume

    All manuals and user guides at all-guides.com Reading Parameters Enter/Exit Programming Mode Good Read Beep Length (continued) $CBPLE12  Good Read Beep Length = 180 msec $CBPLE14  Good Read Beep Length = 200 msec Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels.

  • Page 92: Good Read Led Duration

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 003 = Good Read LED stays on for DEFAULT 0.3 seconds. Indicators are dimmed during sleep. NOTE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 93: Scanning Features

    All manuals and user guides at all-guides.com Reading Parameters Enter/Exit Programming Mode Scanning Features Scan Mode "Scan Mode" on page 301 for more detailed programming instructions. $CSNRM00  DEFAULT Scan Mode = Trigger Single $CSNRM01  Scan Mode = Trigger Hold Multiple $CSNRM02 ...

  • Page 94: Stand Mode Triggered Timeout

    Stand Mode Triggered Timeout = 1.5 Seconds $CSNOT04  Stand Mode Triggered Timeout = 2 Seconds $CSNOT06  DEFAULT Stand Mode Triggered Timeout = 3 Seconds $CSNOT08  Stand Mode Triggered Timeout = 4 Seconds QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 95: Stand Detection

    All manuals and user guides at all-guides.com Reading Parameters Enter/Exit Programming Mode Stand Mode Triggered Timeout (continued) $CSNOT0C Stand Mode Triggered Timeout = 6 Seconds $CSNOT10 Stand Mode Triggered Timeout = 8 Seconds $CSNOT00 Stand Mode Triggered Timeout = Switch back to Trigger Single on trigger pull Stand Detection Specifies the behavior of the scanner when placed in a stand that contains...

  • Page 96: Stand Mode Sensitivity

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL DEFAULT 005 = Scanning is active for 5 Seconds QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 97: Stand Mode Flash

    All manuals and user guides at all-guides.com Reading Parameters Enter/Exit Programming Mode Stand Mode Flash Enables/disables the LED flash when the reader is in Stand Mode. $CSMFL00  DEFAULT Stand Mode Flash = Disable $CSMFL01  Stand Mode Flash = Enable Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode.

  • Page 98: Flash Off Time

    Green Spot Duration = Disable (Green Spot is Off) $CLSSP01  DEFAULT Green Spot Duration = Short (300 msec) $CLSSP02  Green Spot Duration = Medium (500 msec) $CLSSP03  Green Spot Duration = Long (800 msec) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 99: Symbologies

    The reader supports the following symbologies (bar code types). Options for each symbology are included in this chapter. • UPC-A on page 91 • Datalogic 2 of 5 on page 168 • UPC-E on page 94 • Codabar on page 176 •...

  • Page 100: Disable All Symbologies

    3. Complete the programming sequence by scanning the Enter/Exit bar code.  $CCPCL00 Coupon Control = Allow all $CCPCL01  DEFAULT Coupon Control = Enable only UPC/EAN  $CCPCL02 Coupon Control = Enable only GS1 DataBar QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 101: Upc-A

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A bar codes.  $CABEN00 UPC-A = Disable $CABEN01  DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code...

  • Page 102: Expand Upc-A To Ean-13

    UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system char- acter. $CABNS00  UPC-A Number System Character = Do not transmit $CABNS01  DEFAULT UPC-A Number System Character = Transmit QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 103: In-Store Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.

  • Page 104: Upc-E

    UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data. $CEBCT00  DEFAULT UPC-E Check Character Transmission = Don’t Send $CEBCT01  UPC-E Check Character Transmission = Send QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 105: Expand Upc-E To Ean-13

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13.  $CEB3B00 DEFAULT UPC-E to EAN-13 = Don’t Expand $CEB3B01 ...

  • Page 106: Upc-E Number System Character Transmission

     $CEBMR01 UPC-E Minimum Reads = 1 $CEBMR02  DEFAULT UPC-E Minimum Reads = 2  $CEBMR03 UPC-E Minimum Reads = 3 $CEBMR04  UPC-E Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 107: Ean 13

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode EAN 13 The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 bar codes.  $C3BEN00 EAN 13 = Disable $C3BEN01...

  • Page 108: Ean-13 Flag 1 Character

    This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels. $C3BIS00  DEFAULT EAN-13 ISBN Conversion = Disable $C3BIS01  EAN-13 ISBN Conversion = Convert to ISBN QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 109: Issn Enable/Disable

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels.  $C3BIN00 DEFAULT ISSN = Disable $C3BIN01  ISSN = Enable EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read.

  • Page 110: Ean 8

    Enable this option to transmit the check character along with EAN 8 bar code data. $C8BCT00  EAN 8 Check Character Transmission = Don’t Send $C8BCT01  DEFAULT EAN 8 Check Character Transmission = Send QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 111: Expand Ean 8 To Ean 13

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. $C8B3B00  DEFAULT Expand EAN 8 to EAN 13 = Disable $C8B3B01 ...

  • Page 112: Ean 8 Guard Insertion

    Enables/disables the ability of the reader to substitute guard pattern for even parity 6 when an EAN/JAN8 label is presented. $C8BGS00  EAN 8 Guard Substitution = Disable $C8BGS01  DEFAULT EAN 8 Guard Substitution = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 113: Ean 8 Minimum Segment Length Block

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode EAN 8 Minimum Segment Length Block Specifies the minimum number of characters necessary in an EAN/JAN8 label segment in order for the reader to accept the segment for decoding. $C8BSB05 ...
  • Page 114 EAN 8 Minimum Segment Length Block = 12 $C8BSB0D  EAN 8 Minimum Segment Length Block = 13 $C8BSB0E  EAN 8 Minimum Segment Length Block = 14 $C8BSB0F  EAN 8 Minimum Segment Length Block = 15 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 115: Ean 8 Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read. ...

  • Page 116: Ean 8 Stitch Exact Label Halves

    The label structure must be GddddCd... and ..dCddddG. The characters dCd must match between the two segments. NOTE  $C8BSU00 DEFAULT EAN 8 Stitch Unlike Label Halves = Disable $C8BSU01  EAN 8 Stitch Unlike Label Halves = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 117: Ean Two Label

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode EAN Two Label EAN Two Label Enable/Disable When disabled, the reader will not read EAN two label bar codes. $CN2EN00  DEFAULT EAN Two Label = Disable $CN2EN01  EAN Two Label = Enable EAN Two Label Combined Transmission This feature enables/disables transmission of an EAN two label pair as one...

  • Page 118: Ean Two Label Minimum Reads

     $CN2MR01 DEFAULT EAN 8 Minimum Reads = 1 $CN2MR02  EAN 8 Minimum Reads = 2 $CN2MR03  EAN 8 Minimum Reads = 3  $CN2MR04 EAN 8 Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 119: Upc/Ean Global Settings

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode UPC/EAN Global Settings This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each fea- ture description. UPC/EAN Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.

  • Page 120: Upc/Ean Correlation

    It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly. $CUNCO00  DEFAULT UPC/EAN Correlation = Disable $CUNCO01  UPC/EAN Correlation = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 121: Upc/Ean Price Weight Check

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits. Options are • Disabled • Enable 4-digit price-weight check-digit calculation • Enable 5-digit price-weight check-digit calculation •...

  • Page 122: Upc-A Minimum Reads

     $CABMR01 DEFAULT UPC-A Minimum Reads = 1 $CABMR02  UPC-A Minimum Reads = 2 $CABMR03  UPC-A Minimum Reads = 3  $CABMR04 UPC-A Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 123: Upc/Ean Guard Insertion

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode UPC/EAN Guard Insertion Enables/disables the ability to insert either a missing leading or trailing guard on an otherwise complete UPC-A/EAN-13 segment. segment must have structure GddddddCdddddd ddddddCddddddG. NOTE $CUNG100 ...

  • Page 124: Upc/Ean Stitch Unlike Label Halves

    The label half structures must have the structure GddddddC and CddddddG. The characters dCd must match between the two segments. NOTE $CUNSU00  DEFAULT UPC/EAN Stitch Unlike Label Halves = Disable $CUNSU01  UPC/EAN Stitch Unlike Label Halves = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 125: Upc/Ean Minimum Segment Length

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode UPC/EAN Minimum Segment Length Specifies the minimum number of characters necessary in an UPC/EAN/JAN label segment in order for the reader to accept the segment for decoding.  $CUNSL05 DEFAULT UPC/EAN Minimum Segment Length Block = 5 $CUNSL06...
  • Page 126 UPC/EAN Minimum Segment Length Block = 12 $CUNSL0D  UPC/EAN Minimum Segment Length Block = 13 $CUNSL0E  UPC/EAN Minimum Segment Length Block = 14 $CUNSL0F  UPC/EAN Minimum Segment Length Block = 15 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 127: Add-Ons

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Add-Ons The following features apply to optional add-ons. Contact Customer Support for advanced programming of optional and con- ditional add-ons. NOTE Optional Add-ons The reader can be enabled to optionally read the following add-ons (supple- mentals): •...
  • Page 128 All manuals and user guides at all-guides.com Enter/Exit Programming Mode Add-Ons Optional Add-ons (continued) $CADO501  Optional Add-Ons = Enable P5 $CADO800  DEFAULT Optional Add-Ons = Disable GS1-128 $CADO801  Optional Add-Ons = Enable GS1-128 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 129: Optional Add-On Timer

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01  Optional Add-on Timer = 10ms ...
  • Page 130 Optional Add-on Timer = 70ms $CADOT0A  Optional Add-on Timer = 100ms  $CADOT0C Optional Add-on Timer = 120ms $CADOT0E  Optional Add-on Timer = 140ms $CADOT10  Optional Add-on Timer = 160ms QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 131: P2 Add-Ons Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label $CADM201 ...

  • Page 132: P5 Add-Ons Minimum Reads

     $CADM501 DEFAULT P5 Add-Ons Minimum Reads = 1 $CADM502  P5 Add-Ons Minimum Reads = 2 $CADM503  P5 Add-Ons Minimum Reads = 3  $CADM504 P5 Add-Ons Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 133: Gs1-128 Add-Ons Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label ...

  • Page 134: Tm Omnidirectional

    When enabled, GS1 DataBar Omnidirectional bar codes will be translated to the GS1-128 label data format. $C4BU800  DEFAULT GS1 DataBar Omnidirectional GS1-128 Emulation = Disable $C4BU801  GS1 DataBar Omnidirectional GS1-128 Emulation = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 135: Gs1 Databar Omnidirectional Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode GS1 DataBar Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Omnidirectional label must be decoded before it is accepted as good read ...

  • Page 136: Tm Expanded

    When enabled, GS1 DataBar Expanded bar codes will be translated to the GS1- 128 label data format. $CXBU800  DEFAULT GS1 DataBar Expanded GS1-128 Emulation = Disable $CXBU801  GS1 DataBar Expanded GS1-128 Emulation = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 137: Gs1 Databar Expanded Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode GS1 DataBar Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Expanded label must be decoded before it is accepted as good read ...

  • Page 138: Gs1 Databar Expanded Length Control

    Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length:  $CXBLC00 DEFAULT GS1 DataBar Expanded Length Control = Variable Length $CXBLC01  GS1 DataBar Expanded Length Control = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 139: Gs1 Databar Expanded Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode GS1 DataBar Expanded Set Length 1 This feature specifies one of the bar code lengths for GS1 DataBar Expanded Length Control on page 128. Length 1 is the minimum label length if in Variable Length on page 128 Mode, or the first fixed length if in...

  • Page 140: Gs1 Databar Expanded Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 74 = Length 2 is 74 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 141: Tm Limited

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode GS1 DataBar Limited The following options apply to the GS1 DataBar Limited (formerly RSS Limited) symbology. GS1 DataBar Limited Enable/Disable When disabled, the reader will not read GS1 DataBar Limited bar codes. $CLBEN00 ...

  • Page 142: Gs1 Databar Limited Minimum Reads

    GS1 DataBar Limited Minimum Reads = 1 $CLBMR02  GS1 DataBar Limited Minimum Reads = 2 $CLBMR03  GS1 DataBar Limited Minimum Reads = 3  $CLBMR04 GS1 DataBar Limited Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 143: Code 39

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 bar codes.  $CC3EN00 Code 39 = Disable $CC3EN01 ...

  • Page 144: Code 39 Check Character Calculation

    Code 39 Check Character Calculation = Calculate Mod 7 Check $CC3CC04  Code 39 Check Character Calculation = Enable Italian Post Check $CC3CC03  Code 39 Check Character Calculation = Enable Daimler Chrysler Check QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 145: Code 39 Check Character Transmission

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00  Code 39 Check Character Transmission = Don’t Send $CC3CT01 ...

  • Page 146: Code 39 Full Ascii

    In Code 39 decoding, this enables/disables the translation of Code 39 charac- ters to Code 39 full-ASCII characters.  $CC3FA00 DEFAULT Code 39 Full ASCII = Disable $CC3FA01  Code 39 Full ASCII = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 147: Code 39 Quiet Zones

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label.

  • Page 148: Code 39 Minimum Reads

    $CC3MR01  Code 39 Minimum Reads = 1 $CC3MR02  DEFAULT Code 39 Minimum Reads = 2 $CC3MR03  Code 39 Minimum Reads = 3  $CC3MR04 Code 39 Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 149: Code 39 Decoding Level

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 39 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 305 for more detailed programming instruc- tions.

  • Page 150: Code 39 Length Control

    For fixed length decoding, two different lengths may be set. Fixed Length: $CC3LC00  DEFAULT Code 39 Length Control = Variable Length $CC3LC01  Code 39 Length Control = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 151: Code 39 Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 39 Set Length 1 This feature specifies one of the bar code lengths for Code 39 Length Control on page 140. Length 1 is the minimum label length if in Variable Length on page 140 Mode, or the first fixed length if in...

  • Page 152: Code 39 Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 153: Code 39 Interdigit Ratio

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. $CC3IR00  Code 39 Interdigit Ratio = Disable  $CC3IR01 Code 39 Interdigit Ratio = 1 $CC3IR02 ...
  • Page 154 Code 39 Interdigit Ratio = 6 $CC3IR07  Code 39 Interdigit Ratio = 7 $CC3IR08  Code 39 Interdigit Ratio = 8 $CC3IR09  Code 39 Interdigit Ratio = 9 $CC3IR0A  Code 39 Interdigit Ratio = 10 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 155: Code 39 Character Correlation

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 39 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the reader read labels that have some spots and/or voids. It may also help read labels that have damaged areas.

  • Page 156: Code 32 (Italian Pharmaceutical)

    "Code 39 Minimum Reads" on page 138 "Code 39 Decoding Level" on page 139 NOTE "Code 39 Interdigit Ratio" on page 143 "Code 39 Character Correlation" on page 145 "Code 39 Stitching" on page 145 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 157: Code 32 Check Character Transmission

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 32 Check Character Transmission Enable this option to transmit the check character along with Code 32 bar code data.  $CP3CT00 DEFAULT Code 32 Check Character Transmission = Don’t Send $CP3CT01 ...

  • Page 158: Code 39 Cip (French Pharmaceutical)

    The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 bar codes.  $CC8EN00 Code 128 = Disable $CC8EN01  DEFAULT Code 128 = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 159: Expand Code 128 To Code 39

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels. When enabled, the label identifier for a Code 128 label shall be set to Code 39 and all Code 39 formatting control shall be applied to the label.

  • Page 160: Code 128 Function Character Transmission

    Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding). $CC8SC00  DEFAULT Code 128 Sub-Code Change Transmission = Disable $CC8SC01  Code 128 Sub-Code Change Transmission = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 161: Code 128 Quiet Zones

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label.

  • Page 162: Code 128 Minimum Reads

     $CC8MR01 DEFAULT Code 128 Minimum Reads = 1 $CC8MR02  Code 128 Minimum Reads = 2 $CC8MR03  Code 128 Minimum Reads = 3  $CC8MR04 Code 128 Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 163: Code 128 Decoding Level

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 128 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 305 for more detailed programming instruc- tions.

  • Page 164: Code 128 Length Control

    For fixed length decoding, two different lengths may be set. Fixed Length: $CC8LC00  DEFAULT Code 128 Length Control = Variable Length $CC8LC01  Code 128 Length Control = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 165: Code 128 Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 128 Set Length 1 This feature specifies one of the bar code lengths for Code 128 Length Control on page 154. Length 1 is the minimum label length if in Variable Length on page 154 Mode, or the first fixed length if in...

  • Page 166: Code 128 Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 80 = Length 2 is 80 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 167: Code 128 Character Correlation

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 128 Character Correlation When correlation is enabled, the bar code reader will combine label data from multiple scans when decoding. Enabling correlation will help the reader read labels that have some spots and/or voids. It may also help read labels that have damaged areas.

  • Page 168: Gs1-128

    Do not transmit GS1-128 labels. $CU8EN00  DEFAULT GS1-128 = Transmit in Code 128 data format  $CU8EN01 GS1-128 = Transmit in GS1-128 data format $CU8EN02  GS1-128 = Do not transmit GS1-128 labels QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 169: Interleaved 2 Of 5 (I 2 Of 5)

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 bar codes. $CI2EN00 ...

  • Page 170: I 2 Of 5 Check Character Calculation

    I 2 of 5 Check Character Calculation = Check Daimler Chrysler $CI2CC10  I 2 of 5 Check Character Calculation = Check Bosch $CI2CC20  I 2 of 5 Check Character Calculation = Check Italian Post QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 171: I 2 Of 5 Check Character Transmission

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data. $CI2CT00  I 2 of 5 Check Character Transmission = Don’t Send $CI2CT01 ...

  • Page 172: I 2 Of 5 Decoding Level

    Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. NOTE Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.

  • Page 173: I 2 Of 5 Length Control

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set.

  • Page 174: I 2 Of 5 Set Length 1

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 06 = Length 1 is 6 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 175: I 2 Of 5 Set Length 2

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for I 2 of 5 Length Control on page 163. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.

  • Page 176: I 2 Of 5 Character Correlation

    It allows encoding of an odd number of ciphers with Interleaved 2 of 5. It must be enabled to decode Code 2 of 5 CIP/HR. $CI2ZP00  DEFAULT I 2 of 5 Zero Pattern = Disable $CI2ZP01  I 2 of 5 Zero Pattern = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 177: I 2 Of 5 Stitching

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode I 2 of 5 Stitching This option enables/disables stitching for I 2 of 5 labels. When parts of a I 2 of 5 bar code are presented to the reader with this feature enabled, the bar code parts will be assembled by the reader’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 178: Datalogic 2 Of 5

    Datalogic 2 of 5 Datalogic 2 of 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the reader will not read Datalogic 2 of 5 bar codes.  $CD2EN00 DEFAULT...

  • Page 179: Datalogic 2 Of 5 Check Character Transmission

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Datalogic 2 of 5 Check Character Transmission This option enables/disables transmission of an optional Datalogic 2 of 5 char- acter. $CD2CT00  Datalogic 2 of 5 Check Character Transmission = Don’t Send $CD2CT01 ...

  • Page 180: Datalogic 2 Of 5 Decoding Level

    Enter/Exit Programming Mode Datalogic 2 of 5 Datalogic 2 of 5 Decoding Level The Datalogic 2 of 5 Decoding Level feature is set using "I 2 of 5 Decod- ing Level" on page 162. NOTE Datalogic 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Datalogic 2 of 5 symbology.

  • Page 181: Datalogic 2 Of 5 Set Length 1

    306 for detailed programming instructions. $CD2L1 Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.

  • Page 182: Datalogic 2 Of 5 Set Length 2

    307 for more detailed programming instructions. $CD2L2 Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.

  • Page 183: Datalogic 2 Of 5 Interdigit Maximum Ratio

    Datalogic 2 of 5 Interdigit Maximum Ratio This feature specifies the maximum ratio between intercharacter space and module for Datalogic 2 of 5. $CD2IR01  Datalogic 2 of 5 Interdigit Maximum Ratio = 1  $CD2IR02 Datalogic 2 of 5 Interdigit Maximum Ratio = 2 $CD2IR03 ...
  • Page 184 All manuals and user guides at all-guides.com Enter/Exit Programming Mode Datalogic 2 of 5 Datalogic 2 of 5 Interdigit Maximum Ratio (continued) $CD2IR06  Datalogic 2 of 5 Interdigit Maximum Ratio = 6 $CD2IR07  Datalogic 2 of 5 Interdigit Maximum Ratio = 7 $CD2IR08 ...

  • Page 185: Datalogic 2 Of 5 Character Correlation

    This option enables/disables stitching for Datalogic 2 of 5 labels. When parts of a Datalogic 2 of 5 bar code are presented to the reader with this feature enabled, the bar code parts will be assembled by the reader’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 186: Codabar

    All manuals and user guides at all-guides.com Enter/Exit Programming Mode Codabar Codabar Codabar Enable/Disable When disabled, the reader will not read Codabar bar codes. $CCBEN00  DEFAULT Codabar = Disable $CCBEN01  Codabar = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 187: Codabar Check Character Calculation

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character. When disabled, any check characters in the label are treated as data character $CCBCC00 ...

  • Page 188: Codabar Check Character Transmission

    Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters $CCBSS00  Codabar Start/Stop Character Transmission = Don’t Trans- $CCBSS01  DEFAULT Codabar Start/Stop Character Transmission = Transmit QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 189: Codabar Start/Stop Character Set

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters $CCBSC00  Codabar Check Character Set = ABCD/TN*E $CCBSC01  Codabar Check Character Set = ABCD/ABCD $CCBSC02 ...

  • Page 190: Codabar Quiet Zones

    Codabar Quiet Zones = Quiet Zones on two sides $CCBLO03  DEFAULT Codabar Quiet Zones = Auto $CCBLO04  Codabar Quiet Zones = Virtual Quiet Zones on two sides $CCBLO05  Codabar Quiet Zones = Small Quiet Zones on two sides QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 191: Codabar Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read. $CCBMR01  Codabar Minimum Reads = 1 $CCBMR02 ...

  • Page 192: Codabar Decoding Level

    Codabar Decoding Level = 1 $CCBDL02  Codabar Decoding Level = 2 $CCBDL03  DEFAULT Codabar Decoding Level = 3 $CCBDL04  Codabar Decoding Level = 4 $CCBDL05  Codabar Decoding Level = 5 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 193: Codabar Length Control

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set.

  • Page 194: Codabar Set Length 1

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 03 = Length 1 is 3 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 195: Codabar Set Length 2

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codabar Set Length 2 This feature specifies one of the bar code lengths for Codabar Length Control on page 183. Length 2 is the maximum label length if in Variable Length on page 183 Mode, or the second fixed length if in...

  • Page 196: Codabar Interdigit Ratio

    Codabar Interdigit Ratio = 1 $CCBIR02  Codabar Interdigit Ratio = 2 $CCBIR03  Codabar Interdigit Ratio = 3  $CCBIR04 DEFAULT Codabar Interdigit Ratio = 4 $CCBIR05  Codabar Interdigit Ratio = 5 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 197 All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codabar Interdigit Ratio (continued) $CCBIR06  Codabar Interdigit Ratio = 6 $CCBIR07  Codabar Interdigit Ratio = 7 $CCBIR08  Codabar Interdigit Ratio = 8 $CCBIR09  Codabar Interdigit Ratio = 9 $CCBIR0A ...

  • Page 198: Codabar Character Correlation

    $CCBST00  DEFAULT Codabar Stitching = Disable $CCBST01  Codabar Stitching = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 199: Abc Codabar

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode ABC Codabar The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. $CCBAB00  DEFAULT ABC Codabar = Disable $CCBAB01 ...

  • Page 200: Abc Codabar Dynamic Concatenation Timeout

    ABC Codabar Dynamic Concatenation Timeout = 200 msec  $CCBDT32 ABC Codabar Dynamic Concatenation Timeout = 500 msec $CCBDT4B  ABC Codabar Dynamic Concatenation Timeout = 750 msec $CCBDT64  ABC Codabar Dynamic Concatenation Timeout = 1 Second QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 201: Abc Codabar Force Concatenation

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. $CCBFC00  DEFAULT ABC Codabar Force Concatenation = Disable $CCBFC01  ABC Codabar Force Concatenation = Enable Code 11 The following options apply to the Code 11 symbology.

  • Page 202: Code 11 Check Character Calculation

    Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check char- acter. $CC1CT00  Code 11 Check Character Transmission = Don’t Send  $CC1CT01 DEFAULT Code 11 Check Character Transmission = Send QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 203: Code 11 Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read. $CC1MR01  Code 11 Minimum Reads = 1 $CC1MR02 ...

  • Page 204: Code 11 Length Control

    For fixed length decoding, two different lengths may be set. Fixed Length: $CC1LC00  DEFAULT Code 11 Length Control = Variable Length $CC1LC01  Code 11 Length Control = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 205: Code 11 Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 11 Set Length 1 This feature specifies one of the bar code lengths for Code 11 Length Control on page 194. Length 1 is the minimum label length if in Variable Length on page 194 Mode, or the first fixed length if in...

  • Page 206: Code 11 Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 207: Code 11 Interdigit Ratio

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels. $CC1IR00  Code 11 Interdigit Ratio = Disable  $CC1IR01 Code 11 Interdigit Ratio = 1 $CC1IR02 ...
  • Page 208 Code 11 Interdigit Ratio = 6 $CC1IR07  Code 11 Interdigit Ratio = 7 $CC1IR08  Code 11 Interdigit Ratio = 8 $CC1IR09  Code 11 Interdigit Ratio = 9 $CC1IR0A  Code 11 Interdigit Ratio = 10 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 209: Code 11 Decoding Level

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 11 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 305 for more detailed programming instruc- tions.

  • Page 210: Code 11 Character Correlation

    $CC1ST00  DEFAULT Code 11 Stitching = Disable $CC1ST01  Code 11 Stitching = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 211: Standard 2 Of 5

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 bar codes. $CS2EN00 ...

  • Page 212: Standard 2 Of 5 Check Character Transmission

    Standard 2 of 5 Minimum Reads = 1 $CS2MR02  DEFAULT Standard 2 of 5 Minimum Reads = 2  $CS2MR03 Standard 2 of 5 Minimum Reads = 3 $CS2MR04  Standard 2 of 5 Minimum Reads = 4 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 213: Standard 2 Of 5 Decoding Level

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Standard 2 of 5 Decoding Level The Standard 2 of 5 Decoding Level feature is set using "I 2 of 5 Decoding Level" on page 162. NOTE Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology.

  • Page 214: Standard 2 Of 5 Set Length 1

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 08 = Length 1 is 8 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 215: Standard 2 Of 5 Set Length 2

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Standard 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control on page 203. Length 2 is the maximum label length if in Variable Length on page 203 Mode, or the second fixed length if in...

  • Page 216: Standard 2 Of 5 Character Correlation

    $CS2ST00  DEFAULT Standard 2 of 5 Stitching = Disable $CS2ST01  Standard 2 of 5 Stitching = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 217: Industrial 2 Of 5

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Industrial 2 of 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Industrial 2 of 5 labels. $CU2EN00 ...

  • Page 218: Industrial 2 Of 5 Check Character Transmission

    For fixed length decoding, two different lengths may be set. Fixed Length:  $CU2LC00 DEFAULT Industrial 2 of 5 Length Control = Variable Length $CU2LC01  Industrial 2 of 5 = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 219: Industrial 2 Of 5 Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control on page 208. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 220: Industrial 2 Of 5 Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 221: Industrial 2 Of 5 Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Industrial 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Industrial 2 of 5 label must be decoded before it is accepted as good read. ...

  • Page 222: Industrial 2 Of 5 Stitching

    Industrial 2 of 5 Character Correlation Enable/disables character correlation for Industrial 2 of 5. $CU2CO00  DEFAULT Industrial 2 of 5 Character Correlation = Disable $CU2CO01  Industrial 2 of 5 Character Correlation = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 223: Iata

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. $CIAEN00  DEFAULT IATA = Disable $CIAEN01  IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of IATA Industrial 2 of 5 check...

  • Page 224: Isbt 128

    This option is only valid when ISBT 128 Concatenation on page 214 is enabled (see page 11-214). NOTE $CI8CM00  DEFAULT ISBT 128 Concatenation Mode = Static $CI8CM01  ISBT 128 Concatenation Mode = Dynamic QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 225: Isbt 128 Dynamic Concatenation Timeout

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05  ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A  ISBT 128 Dynamic Concatenation Timeout = 100 msec $CI8DT14 ...

  • Page 226: Isbt 128 Force Concatenation

     ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options Use the Datalogic Aladdin™ configuration application or contact Cus- tomer Support to set up pairs of label types for concatenation. NOTE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 227: Msi

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. $CMSEN00  DEFAULT MSI = Disable $CMSEN01  MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check charac- ter.

  • Page 228: Msi Check Character Transmission

    For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CMSLC00  DEFAULT MSI Length Control = Variable Length $CMSLC01  MSI = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 229: Msi Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode MSI Set Length 1 This feature specifies one of the bar code lengths for MSI Length Control on page 218. Length 1 is the minimum label length if in Variable Length on page Mode, or the first fixed length if in Fixed Length on page 218...

  • Page 230: Msi Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 231: Msi Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode MSI Minimum Reads This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read. $CMSMR01  MSI Minimum Reads = 1 ...

  • Page 232: Msi Decoding Level

    MSI Decoding Level = 1 $CMSDL02  MSI Decoding Level = 2 $CMSDL03  DEFAULT MSI Decoding Level = 3 $CMSDL04  MSI Decoding Level = 4  $CMSDL05 MSI Decoding Level = 5 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 233: Code 93

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. $CC9EN00  DEFAULT Code 93 = Disable $CC9EN01 ...

  • Page 234: Code 93 Check Character Transmission

    Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length:  $CC9LC00 DEFAULT Code 93 Length Control = Variable Length $CC9LC01  Code 93 = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 235: Code 93 Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 93 Set Length 1 This feature specifies one of the bar code lengths for Code 93 Length Control on page 224. Length 1 is the minimum label length if in Variable Length on page 224 Mode, or the first fixed length if in...

  • Page 236: Code 93 Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 237: Code 93 Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 93 Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read.  $CC9MR01 DEFAULT Code 93 Minimum Reads = 1 $CC9MR02...

  • Page 238: Code 93 Decoding Level

    $CC9DL02  Code 93 Decoding Level = 2 $CC9DL03  DEFAULT Code 93 Decoding Level = 3 $CC9DL04  Code 93 Decoding Level = 4  $CC9DL05 Code 93 Decoding Level = 5 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 239: Code 93 Quiet Zones

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 93 Quiet Zones Enables/disables fixed length stitching for Code 93. $CC9LO00  Code 93 Quiet Zones = No Quiet Zones $CC9LO01  Code 93 Quiet Zones = Quiet Zone on one side $CC9LO02 ...

  • Page 240: Code 93 Stitching

    DEFAULT Code 93 Stitching = Enable Code 93 Character Correlation Enables/disables Character Correlation for Code 93. $CC9CO00  DEFAULT Code 93 Character Correlation = Disable  $CC9CO01 Code 93 Character Correlation = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 241: Codablock F

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codablock F The following options apply to the Codablock F symbology. Codablock F Enable/Disable Enables/Disables the ability of the reader to decode Codablock F labels. $CCFEN00  DEFAULT Codablock F = Disable $CCFEN01 ...

  • Page 242: Codablock F Aim Check

    Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length:  $CCFLC00 DEFAULT Codablock F Length Control = Variable Length $CCFLC01  Codablock F = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 243: Codablock F Set Length 1

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Codablock F Set Length 1 This feature specifies one of the bar code lengths for Codablock F Length Con- trol on page 232. Length 1 is the minimum label length if in Variable Length on page 232 Mode, or the first fixed length if in...

  • Page 244: Codablock F Set Length 2

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 100 = Length 2 is 100 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 245: Code 4

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of reader to decode Code 4 labels. $CCREN00  DEFAULT Code 4 = Disable $CCREN01 ...

  • Page 246: Code 4 Hex To Decimal Conversion

    The following options apply to the Code 5 symbology. Code 5 Enable/Disable Enables/Disables ability of reader to decode Code 5 labels. $CC5EN00  DEFAULT Code 5 = Disable $CC5EN01  Code 5 = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 247: Code 5 Check Character Transmission

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check charac- ter. $CC5CT00  Code 5 Check Character Transmission = Don’t Send $CC5CT01  DEFAULT Code 5 Check Character Transmission = Send Code 5 Hex to Decimal Conversion...

  • Page 248: Code 4 And Code 5 Common Configuration Items

     DEFAULT Code 4 and Code 5 Decoding Level = 3 $CC5DL04  Code 4 and Code 5 Decoding Level = 4 $CC5DL05  Code 4 and Code 5 Decoding Level = 5 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 249: Code 4 And Code 5 Minimum Reads

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read. ...

  • Page 250: Follett 2 Of 5

    Follett 2 of 5 = Enable BC412 The following options apply to the BC412 symbology. BC412 Enable/Disable Enables/Disables ability of reader to decode BC412 labels. $CBCEN00  DEFAULT BC412 = Disable $CBCEN01  BC412 = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 251: Bc412 Check Character Calculation

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode BC412 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional BC412 check character. When disabled, any check character in the label is treated as a data character ...

  • Page 252: Bc412 Decoding Level

    BC412 Decoding Level = 1 $CBCDL02  BC412 Decoding Level = 2 $CBCDL03  DEFAULT BC412 Decoding Level = 3 $CBCDL04  BC412 Decoding Level = 4  $CBCDL05 BC412 Decoding Level = 5 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 253: Bc412 Length Control

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode BC412 Length Control This feature specifies either variable length decoding or fixed length decoding for the BC412 symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set.

  • Page 254: Bc412 Set Length 1

    Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 255: Bc412 Set Length 2

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode BC412 Set Length 2 This feature specifies one of the bar code lengths for BC412 Length Control on page 243. Length 2 is the maximum label length if in Variable Length on page Mode, or the second fixed length if in Fixed Length on page 243...

  • Page 256: Plessey

    All manuals and user guides at all-guides.com Enter/Exit Programming Mode Plessey Plessey The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. DEFAULT Plessey = Disable Plessey = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 257: Plessey Check Character Calculation

    All manuals and user guides at all-guides.com Symbologies Enter/Exit Programming Mode Plessey Check Character Calculation Enables/Disables calculation and verification of an optional Plessey check char- acter. Plessey Check Character Calculation = Disable DEFAULT Plessey Check Character Calculation = Enable Plessey std. check char. verification Plessey Check Character Calculation = Enable Anker check char.

  • Page 258: Plessey Length Control

    For variable length decoding, a minimum and maximum length Variable Length. may be set. For fixed length decoding, two different lengths may be set. Fixed Length. DEFAULT Plessey Length Control = Variable Length Plessey = Fixed Length QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 259: Plessey Set Length 1

    All manuals and user guides at all-guides.com Plessey Plessey Set Length 1 This feature specifies one of the barcode lengths for Plessey Length Control on page 248. Length 1 is the minimum label length if in Variable Length on page Mode, or the first fixed length if in Fixed Length on page 248 Mode.

  • Page 260: Plessey Set Length 2

    Select Plessey Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 261: Plessey Minimum Reads

    All manuals and user guides at all-guides.com Plessey Plessey Minimum Reads This feature specifies the minimum number of consecutive times a Plessey label must be decoded before it is accepted as good read. Plessey Minimum Reads = 1 Plessey Minimum Reads = 2 Plessey Minimum Reads = 3 DEFAULT Plessey Minimum Reads = 4...

  • Page 262: Plessey Decoding Level

    Plessey Decoding Level = Disable Plessey Decoding Level = 1 (conservative) Plessey Decoding Level = 2 DEFAULT Plessey Decoding Level = 3 Plessey Decoding Level = 4 Plessey Decoding Level = 5 (aggressive) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 263: Plessey Stitching

    All manuals and user guides at all-guides.com Plessey Plessey Stitching Enables/disables fixed length stitching for Plessey. DEFAULT DEFAULT Plessey Stitching = Disable Plessey Stitching = Enable Plessey Character Correlation Enables/disables Character Correlation for Plessey. DEFAULT Plessey Character Correlation = Disable Plessey Character Correlation = Enable Product Reference Guide...
  • Page 264 All manuals and user guides at all-guides.com Symbologies NOTES QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 265 All manuals and user guides at all-guides.com WIRELESS FEATURES This section provides options and programming related to the reader’s wireless communication features. Reference Appendix B for a listing of standard factory settings. starting on page 256 IRELESS EEPER EATURES Good Transmission Beep on page 256 •...
  • Page 266 Adjusts radio-specific beep indications to sound at a low, medium or high fre- quency, selectable from the list below. (Controls the beeper’s pitch/tone.) DEFAULT Beep Frequency = Low Beep Frequency = Medium Beep Frequency = High QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 267 All manuals and user guides at all-guides.com Enter/Exit Programming Mode Beep Duration This feature controls the duration of beep indications. Beep Duration = 60 msec DEFAULT Beep Duration = 80 msec Beep Duration = 100 msec Beep Duration = 120 msec Beep Duration = 140 msec Beep Duration = 160 msec Beep Duration = 180 msec...
  • Page 268 Beep Volume = High Disconnect Beep Enables/disables the beep indication. The defaults are different for the STAR and BT models. NOTE DEFAULT Disconnect Beep = Disable STAR default DEFAULT Disconnect Beep = Enable BT default QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 269 All manuals and user guides at all-guides.com Enter/Exit Programming Mode Docking Beep Enables/disables a beep indication when the handheld is placed in the Base Station. Docking Beep = Disable DEFAULT Docking Beep = Enable Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range.
  • Page 270 Leash Alarm (continued) Leash Alarm = 3 Seconds Leash Alarm = 4 Seconds Leash Alarm = 5 Seconds Leash Alarm = 10 Seconds Leash Alarm = 25 Seconds Leash Alarm = 30 Seconds QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 271 All manuals and user guides at all-guides.com Enter/Exit Programming Mode CONFIGURATION UPDATES page 308 in “References” for detailed information and examples of these features. Automatic Configuration Update When this feature is enabled, a reader and its linked Base Station can automati- cally ensure they stay in sync with regard to application hardware and/or con- figuration.
  • Page 272 Do not scan an ENTER/EXIT PROGRAMMING MODE label with this barcode. NOTE Automatic Flash Update This feature enables/disables the automatic flash update of a reader. DEFAULT Automatic Flash Update = Disable Automatic Flash Update = Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 273 All manuals and user guides at all-guides.com Enter/Exit Programming Mode BATCH FEATURES Batch Mode This option specifies whether to store labels in the handheld while discon- nected from the base. Options are as follows: • Disabled — The handheld will not store/batch labels. •...
  • Page 274 When the scanner is configured in Manual Batch Mode, use the following bar code to erase any labels stored in batch memory. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunction with this barcode. NOTE Erase Batch Memory QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 275 All manuals and user guides at all-guides.com Enter/Exit Programming Mode RF Batch Mode Transmit Delay Specifies the delay in 10 msec increments between transmitting labels stored in batch memory. DEFAULT RF Batch Mode Transmit Delay = No Delay RF Batch Mode Transmit Delay = 50 mS RF Batch Mode Transmit Delay = 100 mS RF Batch Mode Transmit Delay = 0.5 seconds RF Batch Mode Transmit Delay = 1 second...
  • Page 276 This feature enables/disables the ability to link a wireless handheld to a base station without scanning the Unlink label first. DEFAULT Direct Radio Link = Unlink Label Required Direct Radio Link = Automatic Unlinking QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 277 All manuals and user guides at all-guides.com Enter/Exit Programming Mode Bluetooth-Only Features The features in this section are valid only for QuickScan Bluetooth models. RF ADDRESS STAMPING These features allow configuration of source radio data inclusion. Source Radio Address Transmission Enables/disables the ability of source radio address information to be transmit- ted to the host and, if so, at what position with respect to the label data.
  • Page 278 Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 02 Link Timeout value is 2 seconds DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 279 All manuals and user guides at all-guides.com Enter/Exit Programming Mode BT SECURITY FEATURES On the BT system, it is possible to set a (configurable) PIN code to authenticate/ connect BT devices, and encrypt the data. The BT PIN code can be enabled and configured by reading the bar codes in the following sections.
  • Page 280 Set 16-character BT PIN Code Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 31323334 = Default PIN Code is 1234 DEFAULT QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 281 All manuals and user guides at all-guides.com Enter/Exit Programming Mode BT HID FEATURES BT HID Variable PIN Code This feature specifies the selection available for Static or Variable Pin Code, when BT HID profile is configured. DEFAULT Use Static PIN Code Use Variable PIN Code BT HID ALT Mode This feature Enables/Disables the ability to transmit correctly a label content to...
  • Page 282 EXIT bar code to terminate the string. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL QUICKSCAN-QBT2131 DEFAULT [SERIAL_NUMBER_SCANNER] QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 283 All manuals and user guides at all-guides.com Enter/Exit Programming Mode OTHER BT FEATURES BT Poll Rate This feature specifies the time between BT polls. BT Poll Rate = Maximum BT Poll Rate BT Poll Rate = 10 ms DEFAULT BT Poll Rate = 20 ms BT Poll Rate = 50 ms BT Poll Rate = 100 ms BT Poll Rate = 200 ms...
  • Page 284 Powerdown Timeout = Disable Powerdown Timeout = 10 minutes Powerdown Timeout = 20 minutes DEFAULT Powerdown Timeout = 30 minutes Powerdown Timeout = 60 Minutes (1 Hour) Powerdown Timeout = 120 Minutes (2 Hours) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 285 All manuals and user guides at all-guides.com Features for Star Models Only The features in this section are valid only for the QuickScan QM21XX Star model: • STAR Radio Protocol Timeout on page 275 • STAR Radio Transmit Mode on page 276 STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the hand- held reader and Base Station is considered failed.
  • Page 286 ACK when sent to host. NOTE See "Message Formatting" on page 277 for details. The Base Station can receive a host message only if Host Com- page 27 ) is set to Ignore. mands Obey/Ignore ( NOTE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 287: Message Formatting

    All manuals and user guides at all-guides.com Chapter 5 Message Formatting Message Formatting Message Formatting should only be available for the QuickScan™ 21XX Star models. NOTE A message from the Host to the base must follow these rules: • If Address stamping options or address delimiter are enabled on the base, the Host replay must have address field and delimiter too.

  • Page 288: Led And Beeper Control

    ESC [ 6 q ESC [ 5 q ESC Turns on the green LED for 100 ms and then turns off the green LED. [ 7 q Escape sequences different from those listed will be ignored. QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 289: References

    All manuals and user guides at all-guides.com Chapter 6 References This section contains explanations and examples of selected bar code features. See the programming sections for the actual bar code labels used to configure the reader. on page 280 RS-232 P ARAMETERS on page 280 •...

  • Page 290: Rs-232 Parameters

    Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘5’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 291: Ack Character

    All manuals and user guides at all-guides.com RS-232 Parameters ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.

  • Page 292: Nak Character

    0x3E Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT NAK CHARACTER SETTING Scan Two Characters From ‘1’ and ‘5’ ‘2’ and ‘4’ ‘4’ and ‘0’ ‘3’ AND ‘E’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 293: Ack Nak Timeout Value

    All manuals and user guides at all-guides.com RS-232 Parameters ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.

  • Page 294: Ack Nak Retry Count

    Scan SELECT ACK NAK RETRY COUNT SETTING Scan Three Characters From ‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘3’ ‘0’, ‘5’ and ‘4’ ‘2’, ‘5’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 295: Disable Character

    All manuals and user guides at all-guides.com RS-232 Parameters Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.

  • Page 296: Enable Character

    Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT ENABLE CHARACTER VALUE SETTING Scan Two Characters From ‘6’ and ‘5’ ‘7’ and ‘D’ ‘4’ and ‘5’ ‘F’ AND ‘F’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 297: Keyboard Wedge

    All manuals and user guides at all-guides.com Keyboard Wedge Keyboard Wedge Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the reader breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments.

  • Page 298: Intercharacter Delay

    Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘5’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 299: Intercode Delay

    All manuals and user guides at all-guides.com Keyboard Wedge Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1.

  • Page 300: Data Editing

    00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced Formatting features in the Datalogic Aladdin Configuration Application or contact Current versions of the Product Reference Guide (PRG), Quick Reference Guide (QRG), the Datalogic Aladdin™ Configuration...

  • Page 301: Global Prefix/Suffix

    All manuals and user guides at all-guides.com Data Editing Enter prefixes and suffixes in the order in which you want them to appear on the output. Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indi- cated in Figure 10.

  • Page 302: Global Aim Id

    . UP C-A a nd UP C-E la be ls a re conve rte d to EAN 13 whe n a dding AIM IDs . b. IS BN (X with a 0 modifie r cha ra cte r) Figure 11. AIM ID Prefix Label ID AIM ID Bar Code Data Label ID Suffix QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 303: Label Id: Pre-Loaded Sets

    CODE11 434500 620000 CODE128 230000 540000 CODE32 410000 580000 CODE39 2A0000 560000 CODE4 340000 340000 CODE5 6A0000 6A0000 DATALOGIC 2OF5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN13 P8 460000 230000 EAN8 464600 410000...
  • Page 304 5A0000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCA P8 410000 510000 UPCE 450000 440000 UPCE P2 450000 480000 UPCE P5 450000 490000 UPCE P8 450000 450000 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 305: Label Id: Set Individually Per Symbology

    All manuals and user guides at all-guides.com Data Editing Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section "Label ID Control"...
  • Page 306 Scan theENTER/EXIT bar code (Reader exits Label ID entry) Scan the ENTER/EXIT bar code (Reader exits Programming Mode) once again DB*[bar code [bar code Result: +[bar code data] [bar code data]PH data] data]=C3 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 307: Set Global Mid Label Id Character(S)

    All manuals and user guides at all-guides.com Data Editing Set Global Mid Label ID Character(s) Specifies a mid-label ID that is added for transmission between the labels of a two label pair. The expected string is a maximum of 20 characters. When com- bining two label pairs into a single label for transmission to the host, this label ID can be added to the data, following the first label and preceding the second label.
  • Page 308 5. Scan the ENTER/EXIT bar code to exit Programming Mode. If less than the expected string of 16 characters are selected, scan the ENTER/EXIT bar code twice to accept the selections and exit Programming Mode. NOTE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 309: Reading Parameters

    All manuals and user guides at all-guides.com Reading Parameters Reading Parameters Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label. The timeout can be set within a range of 10 millisec- onds to 2,550 milliseconds (2.55 seconds) in 10ms increments.

  • Page 310: Good Read Led Duration

    Scan SELECT GOOD READ LED DURATION SETTING Scan Three Characters From ‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘2’ ‘0’, ‘1’ and ‘5’ ‘0’, ‘2’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 311: Scan Mode

    All manuals and user guides at all-guides.com Reading Parameters Scan Mode Selects the scan operating mode for the reader. Selections are: When the trigger is pulled, scanning is activated until one of the Trigger Single: following occurs: • Scanning Active Time on page 86 has elapsed •...

  • Page 312: Scanning Active Time

    Scan SELECT SCANNING ACTIVE TIME SETTING Scan Three Characters From ‘0’, ‘0’ and ‘1’ ‘0’, ‘9’ and ‘0’ ‘1’, ‘8’ and ‘0’ ‘2’, ‘5’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 313: Flash On Time

    All manuals and user guides at all-guides.com Reading Parameters Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments.

  • Page 314: Flash Off Time

    Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT FLASH OFF TIME SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘0’ ‘5’ and ‘2’ ‘9’ and ‘9’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 315: Symbology Settings

    All manuals and user guides at all-guides.com Symbology Settings Symbology Settings Decoding Levels Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.

  • Page 316: Set Length

    Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT LENGTH 1SETTING for the desired symbology Scan Two Characters From ‘0’ and ‘1’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ AND ‘4’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 317 All manuals and user guides at all-guides.com Symbology Settings Set Length 2 This feature specifies one of the bar code lengths for a given symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.

  • Page 318: Rf Features

    Scan ENTER/EXIT PROGRAMMING MODE Scan SET SOURCE RADIO ADDRESS DELIMiTER CHARACTER Scan Two Characters From ‘0’ and ‘0’ ‘2’ and ‘C’ ‘2’ and ‘D’ ‘2’ AND ‘F’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 319 All manuals and user guides at all-guides.com RF Features STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the hand- held reader and Base Station is considered failed. When setting this parameter, take into consideration the radio traffic (number of readers in the same area).

  • Page 320: Bt-Only Features

    53 54 4F 52 31 32 33 34 35 36 37 38 31 33 35 4D hexadecimal Scan ENTER/EXIT PROGRAMMING MODE Scan SET BT PIN CODE Scan 8 or 32 Alphanumeric Characters 44323534 53544F5231323334353637383133354D From Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 321: Technical Specifications

    All manuals and user guides at all-guides.com Appendix A Technical Specifications The following tables contain Physical and Performance Characteristics, User Environment and Regulatory information, and Standard Cable Pinouts. Item QD2131 QM21X1 QBT21X1 Physical Characteristics Height 6.4”/163 mm Dimensions Length 3.6”/91 mm Width 1.6”/41 mm Reader - 6.7 ounces (190 g) Weight (without...
  • Page 322 PPT; Code 32 (Italian Pharmacode 39); Code 128; Code 128 ISBT; Interleaved 2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Datalogic 2 of 5 (China Post Code/Chinese 2 of 5); IATA 2of5 Air cargo code; Code 11; Codabar; Codabar (NW7); ABC Codabar; Code 93; MSI;...
  • Page 323 All manuals and user guides at all-guides.com Item QD2131 QM/QBT21X1 User Environment Operating Tem- 32° to 122° F (0° to 50° C) perature Charging  32° to 104° F (0° to 40° C) Temperature Storage Tem- -40° to 70 °C (-40° to 158° F) perature Humidity Operating: 0% to 95% relative humidity, non-condensing...

  • Page 324: Standard Cable Pinouts (Corded Models)

    The signal descriptions in Table 27 apply to the connector on the reader and are for reference only. Table 27. Standard Cable Pinouts - Reader Side RS-232 Keyboard Wedge RTS (out) CLKIN (KBD side) DATAIN (KBD side) CLKOUT (PC side) DATAOUT (PC side) CTS (in) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 325: Led And Beeper Indications

    All manuals and user guides at all-guides.com LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various func- tions or errors on the reader. An optional “Green Spot” also performs useful functions.

  • Page 326: Programming Mode

    LED flashes/beep codes associated with an error found. NUMBER OF LED ERROR CORRECTIVE ACTION FLASHES/BEEPS Configuration Interface PCB Reader Module Contact Helpdesk for assis- tance [Reserved] Digital PCB CPLD/Code Mismatch QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 327: Standard Defaults

    All manuals and user guides at all-guides.com Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of Table 28. The settings in this table are as applied to a standard RS-232 inter- face. See Table 29 for a listing of default exceptions to this list as applied to other interface types.
  • Page 328 Label ID Control Disable Set Global Mid Label ID Character(s) No Characters Case Conversion Disable No Char  Character Conversion Conversion Reading Parameters Double Read Timeout 0.4 Second Label Gone Timeout 160 ms QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 329 All manuals and user guides at all-guides.com Parameter Default Your Setting LED and Beeper Indicators Enabled Power On Alert 4 Beeps Good Read: When to Indicate After Decode Good Read Beep Type Mono Medium for corded Good Read Beep Frequency High for cordless 100 ms for corded Good Read Beep Length...
  • Page 330 Disable EAN Two Label Combined Transmission Disable EAN Two Label Minimum Reads 1 Read UPC/EAN Global Settings UPC/EAN Decoding Level UPC/EAN Correlation Disable UPC/EAN Price Weight Check Disable UPC-A Minimum Reads 1 Read QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 331 All manuals and user guides at all-guides.com Parameter Default Your Setting UPC/EAN Guard Insertion Disable UPC/EAN Stitch Exact Label Halves Disable UPC/EAN Stitch Unlike Label Halves Disable UPC/EAN Minimum Segment Length Add-Ons Disable P2, P5  Optional Add-ons and P8 Optional Add-On Timer 70 ms P2 Add-Ons Minimum Reads...
  • Page 332 Code 128 Length Control Variable Code 128 Set Length 1 Code 128 Set Length 2 Code 128 Character Correlation Disable Code 128 Stitching Enable GS1-128 Transmit in Code GS1-128 Enable 128 Data Format QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 333 Interleaved 2 of 5 CIP HR Enable/Disable Disable Datalogic 2 of 5 Datalogic 2 of 5 Enable/Disable Enable Datalogic 2 of 5 Check Character Calculation Disable Datalogic 2 of 5 Check Character Transmission Don’t Send Datalogic 2 of 5 Minimum Reads...
  • Page 334 Code 11 Interdigit Ratio Code 11 Decoding Level Code 11 Character Correlation Disable Code 11 Stitching Disable Standard 2 of 5 Standard 2 of 5 Enable/Disable Disable Standard 2 of 5 Check Character Calculation Disable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 335 All manuals and user guides at all-guides.com Parameter Default Your Setting Standard 2 of 5 Check Character Transmission Send Standard 2 of 5 Minimum Reads Standard 2 of 5 Decoding Level Standard 2 of 5 Length Control Variable Standard 2 of 5 Set Length 1 Standard 2 of 5 Set Length 2 Standard 2 of 5 Character Correlation Disable...
  • Page 336 100 Characters Code 4 Code 4 Enable/Disable Disable Code 4 Check Character Transmission Enable Code 4 Hex to Decimal Conversion Enable Code 5 Code 5 Enable/Disable Disable Code 5 Check Character Transmission Enable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 337 All manuals and user guides at all-guides.com Parameter Default Your Setting Code 5 Hex to Decimal Conversion Enable Code 4 and Code 5 Common Configuration Items Code 4 and 5 Decoding Level Code 4 and Code 5 Minimum Reads Follett 2 of 5 Follett 2 of 5 Enable/Disable Disable BC412...

  • Page 338: Default Exceptions

    Interfaces: USB-OEM Global Suffix No Global Suffix Double Read Timeout 500 msec Interfaces: All Keyboard Wedge, USB Keyboard No unique settings Interface: RS-232 WN Expand UPC-A to EAN-13 Enable UPC-E Check Character Transmission Disable QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 339 Code Standard 2/5 Label ID Character(s) Codabar Label ID Character(s) Code 128 Label ID Character(s) GS1-128 Label ID Character(s) Datalogic 2 of 5 Label ID Character(s) ISBT 128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s)
  • Page 340 EAN8/GS1-128 Label ID Character(s) EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 341: Sample Bar Codes

    All manuals and user guides at all-guides.com Appendix C Sample Bar Codes The sample bar codes in this appendix are typical representations for their symbology types. UPC-A 12345 67890 EAN-13 3 4 5 67 8 9 0 1 2 3 4 0 Code 39 123ABC Code 128...
  • Page 342 All manuals and user guides at all-guides.com Code 32 Codabar Code 93 Code 11 QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 343: Gs1 Databar (Rss)

    All manuals and user guides at all-guides.com GS1 DataBar (RSS) GS1 DataBar (RSS) GS1 DataBar variants must be enabled to read the bar codes below (see "GS1 DataBar (RSS)" on page 333). NOTE 10293847560192837465019283746029478450366523 (GS1 DataBar Expanded Stacked) 1234890hjio9900mnb (GS1 DataBar Expanded) 08672345650916 (GS1 DataBar Limited) GS1 DataBar-14...
  • Page 344 All manuals and user guides at all-guides.com NOTES QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 345: Keypad

    All manuals and user guides at all-guides.com Appendix D Keypad Use the bar codes in this appendix to enter numbers as you would select digits/ characters from a keypad. Product Reference Guide...
  • Page 346 All manuals and user guides at all-guides.com QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 347 All manuals and user guides at all-guides.com Product Reference Guide...
  • Page 348 All manuals and user guides at all-guides.com NOTES QuickScan™ I QD21X1 / QM21X1 / QBT21X1...

  • Page 349: Scancode Tables

    All manuals and user guides at all-guides.com Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms.

  • Page 350: Interface Type Pc At Ps/2 Or Usb-Keyboard

    ö ÷ ø ù ú û ü ý þ ÿ Extended characters (sky blue) are sent through dedicated keys (when available in the selected country mode) or by using an Alt Mode sequence. QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 351 All manuals and user guides at all-guides.com Interface Type PC AT PS/2 or USB-Keyboard (continued) Table 31. Scancode Set When Control Character is 02 Enter Ar Ar Al Al  Cl  Cl  Cr  Cr  à S+ Tab Enter Pg Up Keypd...

  • Page 352: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode

    All manuals and user guides at all-guides.com Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode Table 32. Scancode Set When Control Character is 00 or 01 Alt+000 Alt+001 Alt+002 Alt+003 Alt+004 Alt+005 Alt+006 Alt+007 Alt+008 Alt+010 Alt+011 Alt+012 Alt+014 Alt+015...
  • Page 353 All manuals and user guides at all-guides.com Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) Table 33. Scancode Set When Control Character is 02 Enter Ar Ar Al Al Cl Cl Cr Cr à S+ Tab Enter Pg Up Keypd...

  • Page 354: Digital Interface

    All manuals and user guides at all-guides.com Digital Interface Table 34. Scancode Set When Control Character is 00 or 01 NULL C(S)+@ C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W...
  • Page 355 All manuals and user guides at all-guides.com Digital Interface (continued) Table 35. Scancode Set When Control Character is 02 Enter Cl Cl à S+ Tab Enter Keypd ß â á Space “ & ‘ < > Product Reference Guide...

  • Page 356: Ibm Xt

    All manuals and user guides at all-guides.com IBM XT Table 36. Scancode Set When Control Character is 00 or 01 NULL C(S)+@ C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W...
  • Page 357 All manuals and user guides at all-guides.com IBM XT (continued) Table 37. Scancode Set When Control Character is 02 Enter Ar Ar Al Al Cl Cl Cr Cr à S+ Tab Enter Pg Up Keypd Pg Dwn Home ß â á...

  • Page 358: Microsoft Windows Codepage 1252

    All manuals and user guides at all-guides.com Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages. QuickScan™ I QD21X1 / QM21X1 / QBT21X1...
  • Page 359 All manuals and user guides at all-guides.com ASCII Chart ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < >...
  • Page 360 All manuals and user guides at all-guides.com www.datalogic.com ©2015-2017 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic USA, Inc. 959 Terry Street Eugene |OR 97402...
