Features
· Use as a cabinet alert, door alert,
link with push button/switch or as a
burglar alert.
· Independent strobe and siren timing
of 15 seconds, 30 seconds, 60
seconds or continuous.
· Durable, polycarbonate construction.
· Includes ten high intensity LEDs.
· Siren offers 32 user selectable tones.
· Choose piercing 100 or 85 dB alert.
· For indoor use only.
We protect the things that protect you.

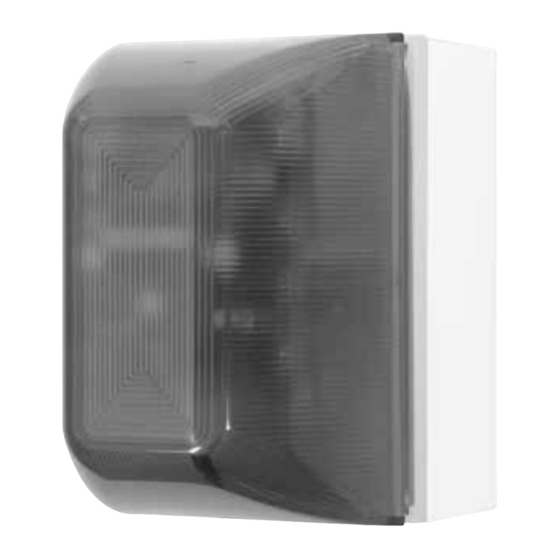

Select-Alert
Mini Controller
STI-SA5000 SERIES
· Available with amber, green, blue,
red or white lens.
· Includes a tamper switch which
triggers the alert when unit is
being removed from a wall.
· Low battery indicator.
· Powered by a 9 VDC battery
(not included) or external 12 – 24
volts.
· One Form "C" dry relay contact
output.
®
Advertisement
Table of Contents
Related Manuals for STI Select-Alert STI-SA5000 Series
Summary of Contents for STI Select-Alert STI-SA5000 Series
- Page 1 Select-Alert Mini Controller STI-SA5000 SERIES Features · Available with amber, green, blue, · Use as a cabinet alert, door alert, red or white lens. link with push button/switch or as a · Includes a tamper switch which burglar alert. triggers the alert when unit is ·...
- Page 2 CONTENTS Warnings and Cautions ................page 3 Warranty Information ..................page 3 Dimensions ....................page 3 Specifications ....................page 4 Electronic Setup ................... page 4 Alert Tones ....................page 5 Alert Timing and Volume ................page 5 Terminal Strip Connections ................page 6 Mounting Options ..................
- Page 3 All units are recommended for indoor use. Unit must be tested periodically to verify the life of battery. STI recommends you change the 9 Volt battery twice a year. When purchasing a Select-Alert, you will need to periodically test the connections to make sure audibles function at a sound level to alert staff. Installer...
- Page 4 SPECIFICATIONS Operating Voltage Internal power 9 VDC battery (not included) Operating Temperature 32°F-120° Power Consumption Stand by: 50µA Siren low volume: 85mA Siren high volume: 90mA Strobe: 25mA Siren Volume Low: 85 dB High: 100 dB Alert Timing Independent control for siren and strobe: 15s, 30s, 60s, continuous Low Battery Warning LED flash once every 30 seconds...
- Page 5 Step 2 - Alert Tones - S1 1 2 3 4 5 1 2 3 4 5 0 0 0 0 0 BUZZ 0 0 0 0 1 STANDARD Alert 1 0 0 0 0 SLOW ON/OFF 1 0 0 0 1 #3 FAST 0 1 0 0 0 SLOW SIREN...
- Page 6 2.Place back box on wall and mark the mounting hole positions. 3.If using #8-10 anchors, drill 3/16 dia. holes 1 in. deep into wall and press anchor into hole. If using #6 screws only, drill 3/32 dia. holes 1 ¼ in. deep. 4.Mount back box to wall using #6 x 1 ¼ in. screws. 5.Mount base plate as shown using (2) #6-32 x 1 in. screws. Note: If not using STI back box, make sure surface will depress tamper switch. DRILL (4) 3/16 in. DIA. HOLES IF USING #8-10 ANCHORS DETAIL A DRILL (4) 3/32 in. DIA. HOLES WHEN USING #6 SCREWS ONLY...
- Page 7 (4) PROVIDED 05050- LENS COLORS A - AMBER B) To Key Mount Plate or into Wall without Electrical Box ALERT TONES B - BLUE G - GREEN R - RED DRILL W - WHITE LED QTY 10 3/16 DIA HOLES KIT-SA505 KEY SWITCH MOUNTING BRACKET TAMPER-PROOF SCREW...
- Page 8 Phone: 248-673-9898 • info@sti-usa.com • www.sti-usa.com Taylor House • 34 Sherwood Road • Bromsgrove, Worcestershire • B60 3DR • England Tel: +44 (0)1527 520 999 • info@sti-emea.com • www.sti-emea.com Unit 7A • Lockhead Avenue • Airport Business Park • Waterford • X91 HWF2 • Ireland info@sti-emea.com •...
