A F E T Y A R N I N G S The QuadSafe RM-4 module is a “Type 4” safety device. It is designed to work with safety devices to guard personnel working around moving machinery. Whether a specific machine application and QuadSafe RM-4 installation complies with safety regulations depends on several items, including the proper application, installation, maintenance and operation of the QuadSafe RM-4.

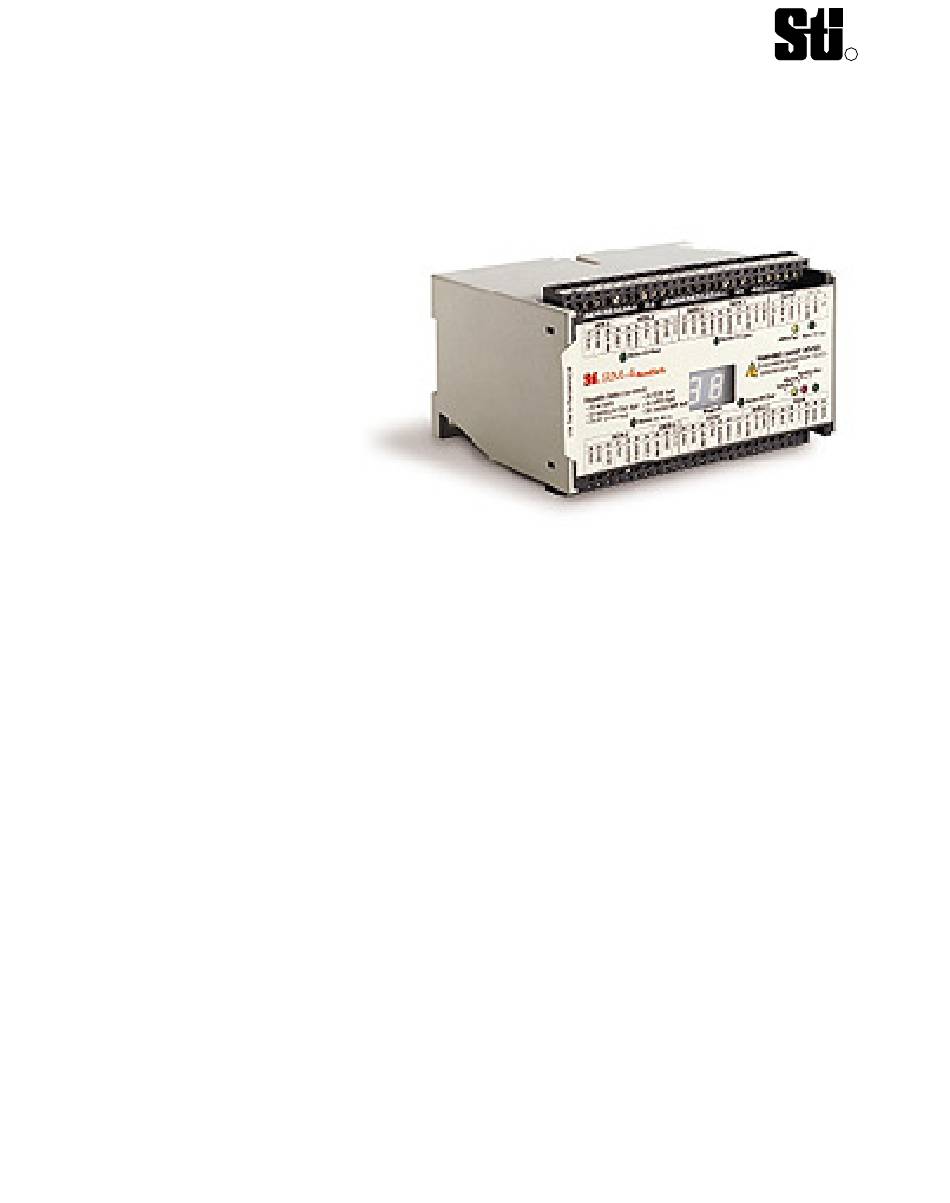

STI 4600 family of light curtains. The QuadSafe RM-4 is enclosed in a 3"W X 5.8"L X 4.3"H DIN box with two rows of removable terminal blocks. The mode and configuration DIP switches are located inside the box.
Page 7
STI products: the MC4700 Light Curtain and the BeamSafe II solid state unit (BS2RC24). For the QuadSafe RM-4 to act as the primary safety device, the safety devices used with the QuadSafe RM-4 module must be configured in the Automatic Start mode and have their MPCE function disabled.
P E R A T I N G A N D I R I N G N S T R U C T I O N S Configuration of 4600 Light Curtains QuadSafe RM-4 Installation and Operation Manual PERATING AND IRING NSTRUCTIONS 4 .1 .
Page 11
P E R A T I N G A N D I R I N G N S T R U C T I O N S Wiring Connections QuadSafe RM-4 Installation and Operation Manual +24VDC Start Required Lamp Start Switch...
Page 13
P E R A T I N G A N D I R I N G N S T R U C T I O N S Wiring Connections QuadSafe RM-4 Installation and Operation Manual Figure 4-3 Connecting RM-4 to MS4600 Series Light Curtain A-11 STI SCIENTIFIC TECHNOLOGIES GmbH SCIENTIFIC TECHNOLOGIES INC.
Page 15
O N F I G U R A T I O N W I T C H E S The following table defines the setting of the redundant 7-position DIP switches (labeled SWA and SWB) used on the QuadSafe RM-4 module to select from the configuration options. 4.3.1...
Page 16
EQUIREMENTS ONNECTIONS The QuadSafe RM-4 system operates directly from 24 VDC ±10%. Power to the QuadSafe system must come from a dedicated power supply which must meet the requirements of IEC 60204-1 and IEC 61496-1, STI part number 42992 or equivalent.
YSTEM PERATION The QuadSafe RM-4 module receives ouputs from up to four safety devices and produces a single pair of OSSD outputs. The system consists of a DIN box with two rows of removable terminal blocks, and is wired to up to four safety devices.
Page 18
This state does not allow the protected machine to operate until the fault is removed and the START button is pressed and released or power is cycled. Table 5-1 QuadSafe RM-4 operating states and corresponding outputs Machine Machine...
— OSSD A and OSSD B outputs and return: Use 20 AWG unshielded wire with cable capacitance < 100 pF/ft., max length 10m (33 ft) — QuadSafe RM-4 Auxiliary outputs (PNP Out and NPN Out): Use 20 AWG unshielded wire, max length 10m (33 ft) —...
ISTANCE WARNING! Never install a QuadSafe RM-4 safety device system without regard to the safety distance. If the safety devices connected to the QuadSafe RM-4 system are mounted too close to the point of operation hazard, the machine may not stop in time to prevent an operator injury.
I A G N O S T I C I S P L A Y Operational Codes QuadSafe RM-4 Installation and Operation Manual IAGNOSTIC ISPLAY The controller contains a two-digit diagnostic display, which presents numeric codes indicating both normal operation and system fault status. .
Page 25
A F E P E C I F I C A T I O N S Mechanical DrawinG QuadSafe RM-4 Installation and Operation Manual 9 .2 . M E C H A N I C A L R A W I N 5.85 in...
STI’s liability hereunder, in any case, is expressly limited to repair or replacement (at STI’s option) of goods.
Page 27
Scientific Technologies Inc. 1 0 .3 . R E P A I R S STI offers product repair service at our factory. If you need repairs made to any STI product contact our Customer Service Department. 1 0 .4 . R...
