Micro Bar IP LED 24 Warm White
SG IPLEDMCBAR24WW
MANUALE UTENTE
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG IPLEDMCBAR24WW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sagitter SG IPLEDMCBAR24WW

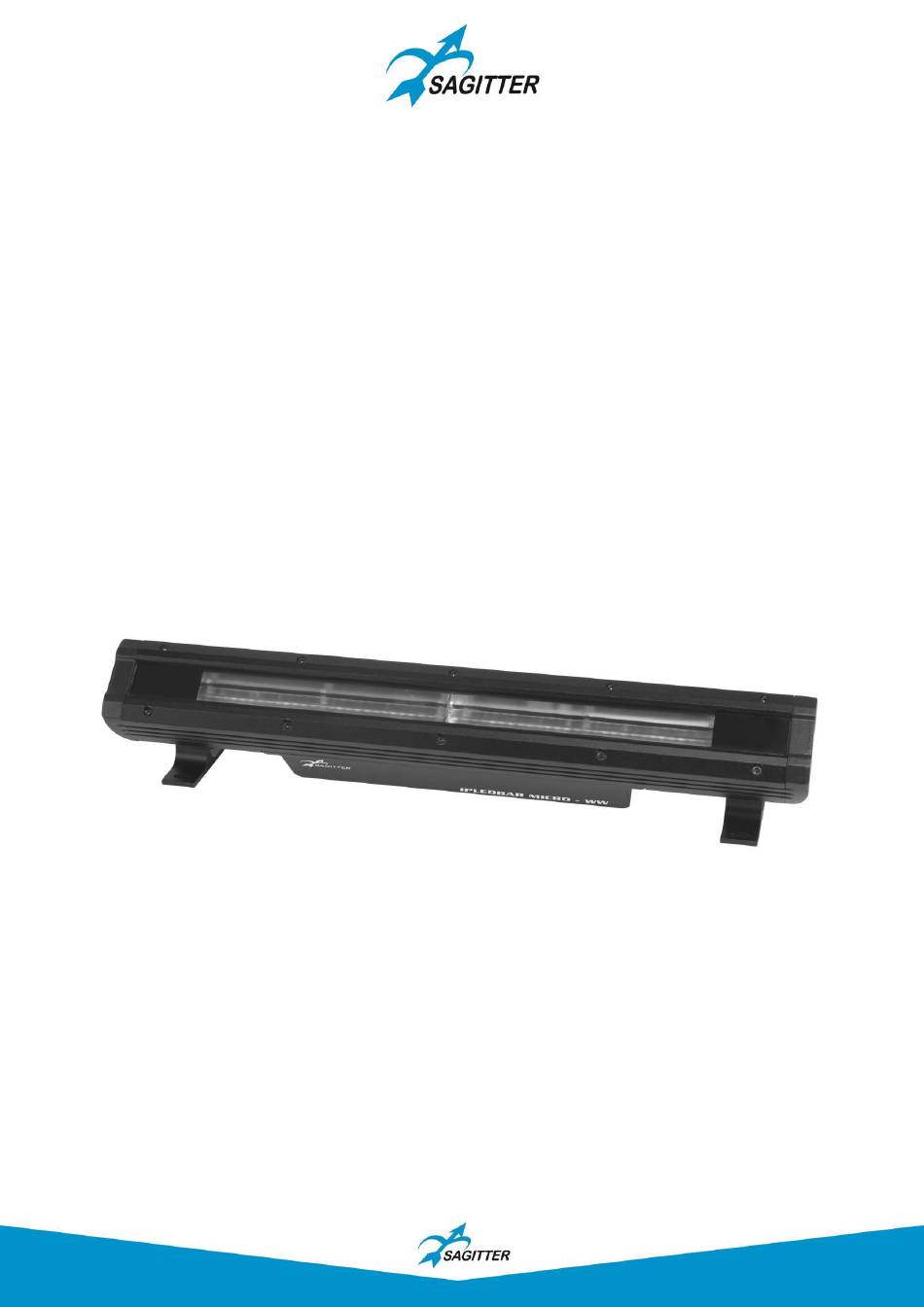

  • Page 1 Micro Bar IP LED 24 Warm White SG IPLEDMCBAR24WW MANUALE UTENTE USER MANUAL...
  • Page 2: Table Of Contents

    Rev. 01-10/17 INDICE: 1. INTRODUZIONE p. 3 2. ISTRUZIONI DI SICUREZZA p. 4 3. APERTURA CONFEZIONE E CONTROLLO p. 7 4. INSTALLAZIONE ED ACCENSIONE p. 8 5. ISTRUZIONI PER L'USO p. 9 6. MANUTENZIONE p. 9 7. SPECIFICHE TECNICHE p. 9 INDEX: 1.
  • Page 3: Introduzione

    1. INTRODUZIONE Grazie per avere scelto un nostro prodotto! Vi preghiamo di fare riferimento alle istruzioni e alle avvertenze contenute nel presente manuale per l’utilizzo del dispositivo e di conservarlo per future consultazioni. Il presente manuale contiene informazioni riguardanti l’installazione e l’utilizzo del dispositivo.
  • Page 4: Istruzioni Di Sicurezza

    2. ISTRUZIONI DI SICUREZZA Attenzione! Questo prodotto non è adatto ad un uso domestico. Leggere il presente manuale prima di installare e dare corrente all’apparecchiatura, seguire le precauzioni di sicurezza elencate di seguito ed osservare tutti gli avvertimenti indicati nel presente manuale e stampati sull’apparecchiatura.
  • Page 5 Nell’ultima barra della catena il tappo, installato sull’uscita NON DEVE ESSERE RIMOSSO, al fine di garantire il grado di protezione IP65. Per i cavi di prolunga è possibile inoltre utilizzare direttamente specifici cavi SAGITTER, venduti separatamente: SG IPCPLU3 (mt.3) - SG IPCPLU5 (mt.5) - SG IPCPLU10 (mt.10).
  • Page 6: Apertura Confezione E Controllo

    Controllare che la scatola contenga i seguenti articoli: N° 1 SG IPLEDMCBAR24WW N° 1 Cavo adattatore ingresso N° 2 Tappo su connettore di uscita N°...
  • Page 7: Installazione Ed Accensione

    4. - INSTALLAZIONE ED ACCENSIONE 4.1 - INSTALLAZIONE PRODOTTO - Non scuotere l'apparecchio. Evitare l'utilizzo di forza eccessiva durante le operazioni di installazione o fissaggio dell'unità. - L'unità può essere installata a pavimento in appoggio sugli appositi piedini in gomma, a parete, a soffitto o su truss.
  • Page 8 4.2 – COLLEGAMENTO IN CATENA AC 230V: collegare al massimo 40 barre in catena AC 230V AC 110V: collegare al massimo 20 barre in catena AC 110V Il dispositivo deve essere collegato ad un sistema di alimentazione dotato di un’efficiente messa a terra.
  • Page 9: Istruzioni Per L'uso

    5. - ISTRUZIONI PER L'USO 5.1 – ACCENSIONE Collegare la barra alla rete di alimentazione per l’accensione Scollegare dalla rete per lo spegnimento Per assicurare prestazioni ottimali, l'unità deve essere pulita frequentemente. Scollegare l'unità dalla rete elettrica ed attendere almeno 35 minuti affinchè essa si sia reffreddata. Utilizzare un aspiratore oppure un compressore oppure un panno morbido per rimuovere la polvere depositata.
  • Page 10: Introduction

    1. - INTRODUCTION Thank You for choosing one of Our products! Please refer to the instructions and warnings contained in this user manual, please retain it for future reference. This manual contains information about the installation and use of the device. The information contained in this publication has been carefully prepared and checked.
  • Page 11: Safety Instructions

    2. - SAFETY INSTRUCTIONS Caution! This product is not suitable for household illumination. Please read this manual before installing and applying power to the equipment, follow the safety precautions listed below and observe all warnings in this manual and printed on. Please contact a PROEL distributor for assistance with any questions about how to activate the equipment safely.
  • Page 12 In the last bar of the chain DON'T REMOVE the IP65 cap, in order to guarantee the IP65 protection degree. For extension cables it is possible also to use specific Sagitter extension cables SG IPCPLU3 (mt.3) - SG IPCPLU5 (mt.5) - SG IPCPLU10 (mt.10) sold separately.
  • Page 13: Opening And Control

    Verify that the box contains the following items: N° 1 SG IPLEDMCBAR24WW N° 1 Adapter cable input N° 1 Output IP65 cover cap N°...
  • Page 14: Installation And Switch On

    4. - INSTALLATION AND SWITCH ON 4.1 - PRODUCT INSTALLATION - Do not shake the device. Avoid the use of too much force during installation or unit fixing. - The unit can be installed on the floor, on the wall, ceiling or on a truss. WARNING! IT'S REQUIRED the mounting of the safety rope (PLH232 - PLH248 sold separately) in the case where the product is...
  • Page 15 4.2 - CONNECTION IN A CHAIN AC 230V: connect maximum 40 bars in a chain AC 230V AC 110V: connect maximum 20 bars in a chain AC 110V The device must be connected to a power supply system with a proper earth system. Moreover, it is recommended to protect power supply lines of the products from indirect contact and / or shorting to earth by using appropriately sized anti electrical shock switch.
  • Page 16: Setup

    5. - SETUP 5.1 –CONTROL BOX MENU Switch ON the bar: connect to the mains Switch Off the bar: disconnect from the mains To ensure optimal performance, the unit must be frequently cleaned. Unplug the device from the mains and let it cool for at least 35 minutes to avoid the risk of burns. Use a vacuum cleaner or an air compressor and a soft brush or a lens cloth to remove the dust deposited.
  • Page 20 Proel S.p.A. Via alla Ruenia 37/43 64027 Sant'Omero (TE) ITALY Tel. +39 0861 81241 Fax. +39 0861 887862 Mail: info@proel.com Web: www.proel.com...
