PowerTec 71714 Instruction Sheet

INSTRUCTION SHEET
Complete Doweling Jig Kit
QUESTION...
1•847•780•6120
NOTE: These doweling jigs can be used
with any size stock, but each individual jig
is designed for a specific size stock.
71715: 1/4" doweling jig to center dowels in
1/2" stock
71716: 3/8" doweling jig to center dowels in
3/4" stock
71717: 1/2" doweling jig to center dowels in
1" stock.
NOTE: Failure to follow these instructions
could result in misalignment
PACKAGING CONTENTS
1 - 71715:1/4" dowel drilling jig with
alignment mark, included depth scale,
cobalt M-35 drill bit and split ring
stop collar
1 - 71716: 3/8" dowel drilling jig with
alignment mark, included depth scale,
cobalt M-35 drill bit and split ring
stop collar
1 - 71717: 1/2" dowel drilling jig with
alignment mark, included depth scale,
cobalt M-35 drill bit and split ring
stop collar
WARNING
• To avoid serious injury, keep hands and
fingers away from the spinning bit during
drilling operations. Always be aware of
the bit when drilling.
MODEL NO. 71714
• Before drilling, make sure the dowel
drilling jig is clamped securely to the
workpiece and the workpiece is secured
in a vise or clamp. Failure to do so
could result in unexpected shifting of the
project during drilling, which could cause
damage to the project.
TO USE
1. Align the workpieces exactly as they
will be joined. Make sure all faces and
edges are flush.
2. Decide how many dowels will be
needed to join the workpieces.
NOTE: The dowel drilling jig has
reference lines on the jig body for
centering two dowel holes or aligning
single dowel holes. In most cases,
two dowels are centered on the
narrowest workpiece.
3. Use a combination or try square to
draw a straight line where the two
workpieces will be joined. This will be
the line used to align the dowel drilling
jig to the workpieces. See Figure1.
NOTE: A straight edge can be used if a
square is not available.

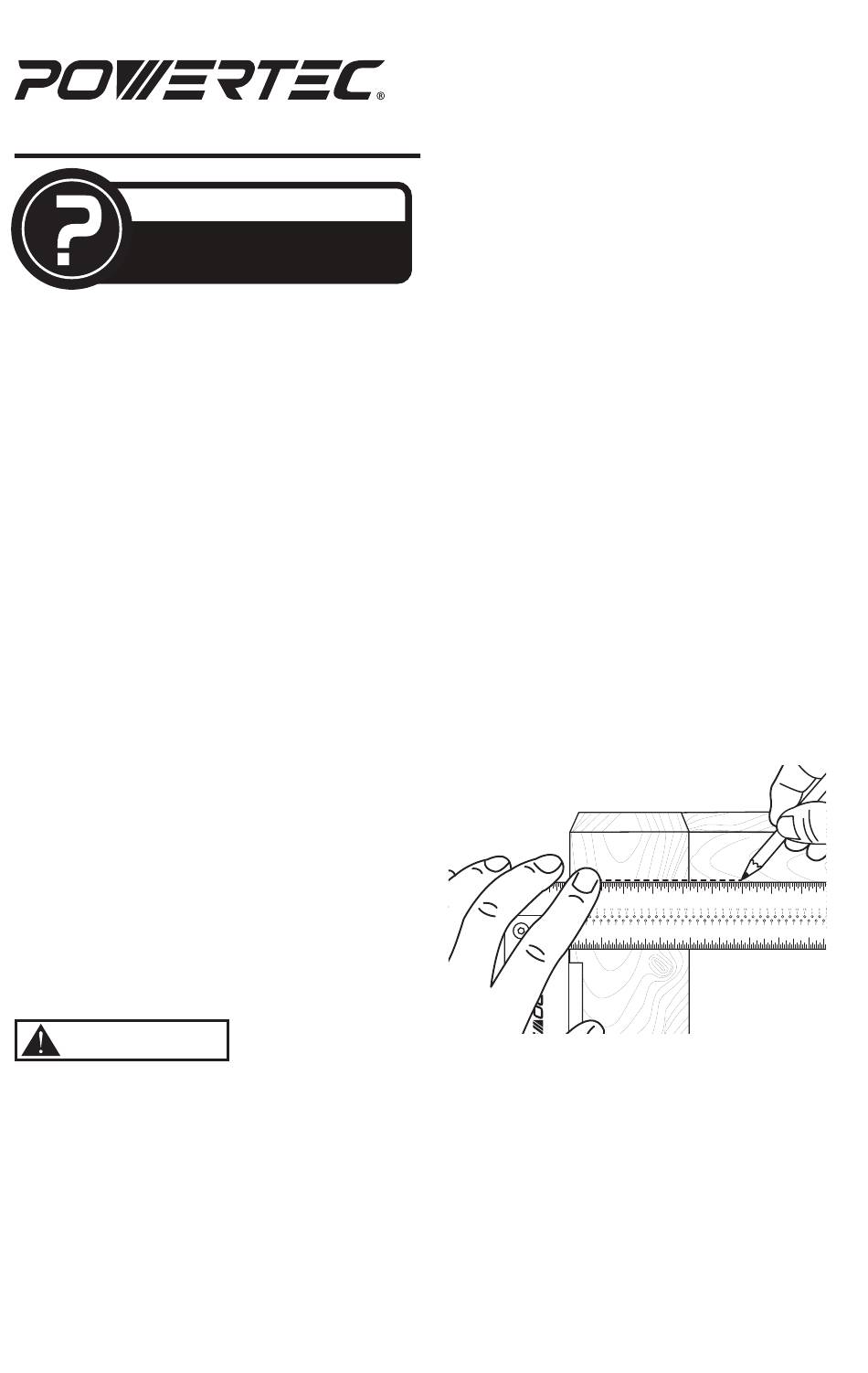

Figure 1
1
1/4 1/2 3/4 1/4 1/2 3/4
1/4 1/2
2 3 4
1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2
1 2 3
1/2
3/4 1/4 1/2 3/4 1/4 3/4 1/4 1/2
5
3/4 1/4 1/2
4
3/4 1/4
