INSTRUCTION SHEET
15" Dovetail Jig
QUESTION...
1•847•780•6120
Visit us on the web at www.powertecproducts.com
Put these instructions and the original sales invoice
in a safe, dry place for future reference.
WARNING
To reduce the risk of injury, turn router off and disconnect it from
power source before installing and removing accessories. An
accidental start-up can cause injury.
WARNING
For your own safety, read and follow all safety procedures listed in
the router instruction manual.
WARNING
• Wear eye protection. Always use safety glasses.
Eye protection equipment should comply with ANSI
Z87.1 standards.
CAUTION
Think safety! Safety is a combination of operator common sense
and alertness at all times when tool is being used.
WARNING
Some dust created by operation of power tool contains chemicals
known to the State of California to cause cancer, birth defects
or other reproductive harm. To reduce your exposure to these
chemicals, work in a well ventilated area and work with approved
safety equipment. Always wear OSHA/NIOSH approved, properly
fitting face mask or respirator when using such tools.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
PACKAGING CONTENTS
DESCRIPTION
Dovetail jig template
Dovetail bit with guide (for cutting tails)
Straight bit with guide (for cutting pins)
Pan head wood screws #8 x 1-1/4"
Washers 5/32"
Instruction Sheet
NOTE: Contact the customer service center if any of these parts
are missing.
NOTE: After unit is assembled dispose of all packaging material in
an environmentally safe way.
REQUIRED TOOLS
• 7/8 HP Router with a 1/4" collet (minimum)
• Drill/9/64" drill bit
MOUNTING THE DOVETAIL JIG TEMPLATE
NOTE: The jig with the included bits, cuts dovetails in wood 1/2"
to 3/4" thick.

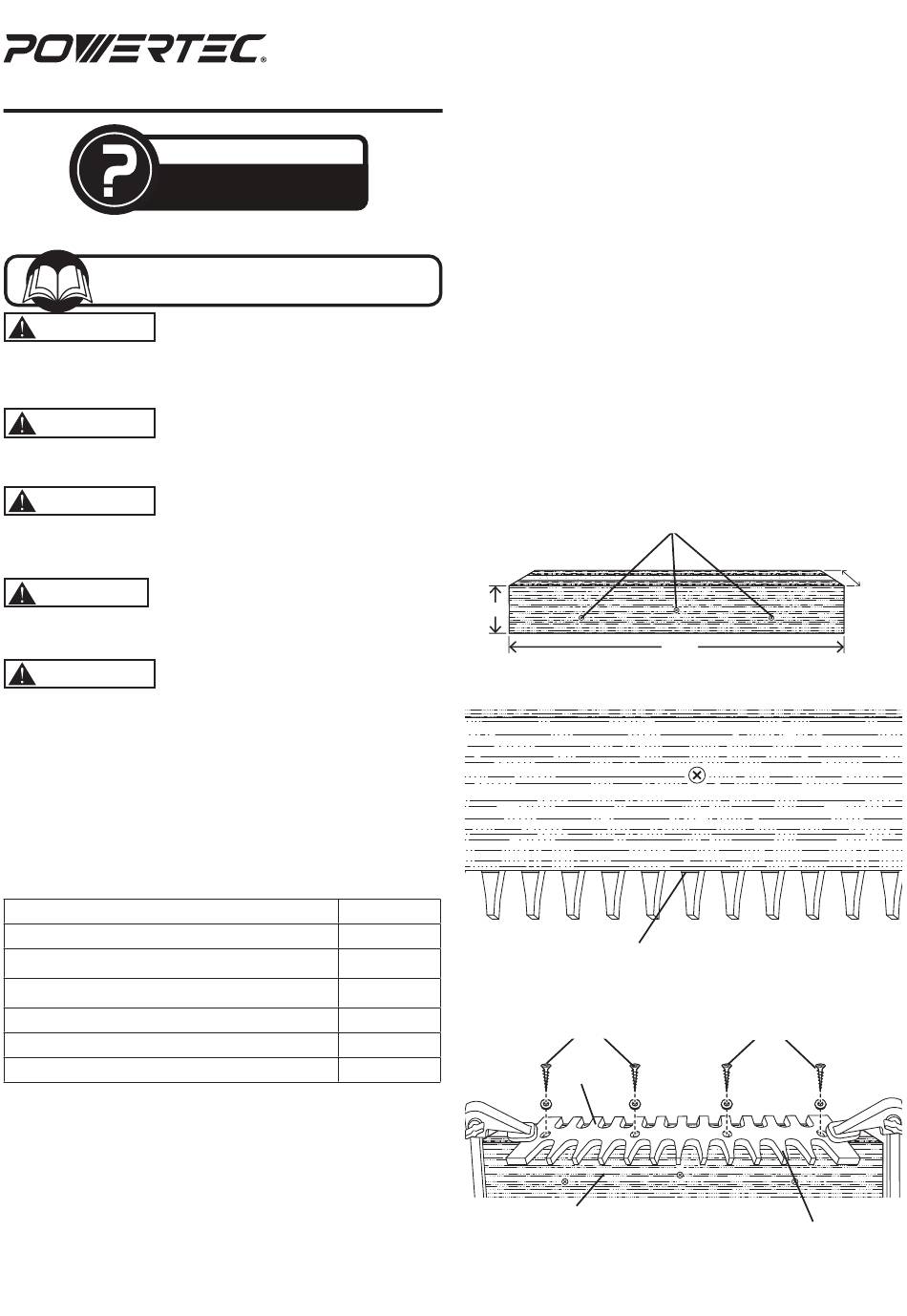

Refer to Figure 1–3
1. Make a 2-1/4" x 3-1/2" x 18" backing block to mount the
dovetail jig template.
• The backing block can be made from a solid piece of wood
or laminate.
• Make sure the backing block is machined 90° to the
dovetail jig template.
2. On the pin side of the jig there is a scribe line running along
the bottom side. Turn the jig over and place the backing block
onto dovetail jig template, align the scribe line with the top
edge of the backing block and clamp into place.
3. Drill through the four holes in the jig and attach the jig to the
backing block with the four screws and washers supplied.
IMPORTANT: Make sure the scribe line is lined up all the way
across the backing block.
Figure 1
If using screws to laminate the backing block, make sure the screws are 1" or
more of the backing block's edge. The router bit will cut into the top corners
of both backing block faces and could hit the screws. The top edges of the
backing block needs to be even and square with the faces. Joint if needed.
3-1/2" 3-½"
Figure 2
QUANTITY
1
Scribe mark aligned with backing block
1
Figure 3
1
4
4
1
Backing Block
2-1/4" x 3-1/2" x 18"
18"
18"
Pan head
wood screws
and washers
Tail Side
Model No. 71529
2-1/4"
2-¼"
Pan head
wood screws
and washers
Pin Side
