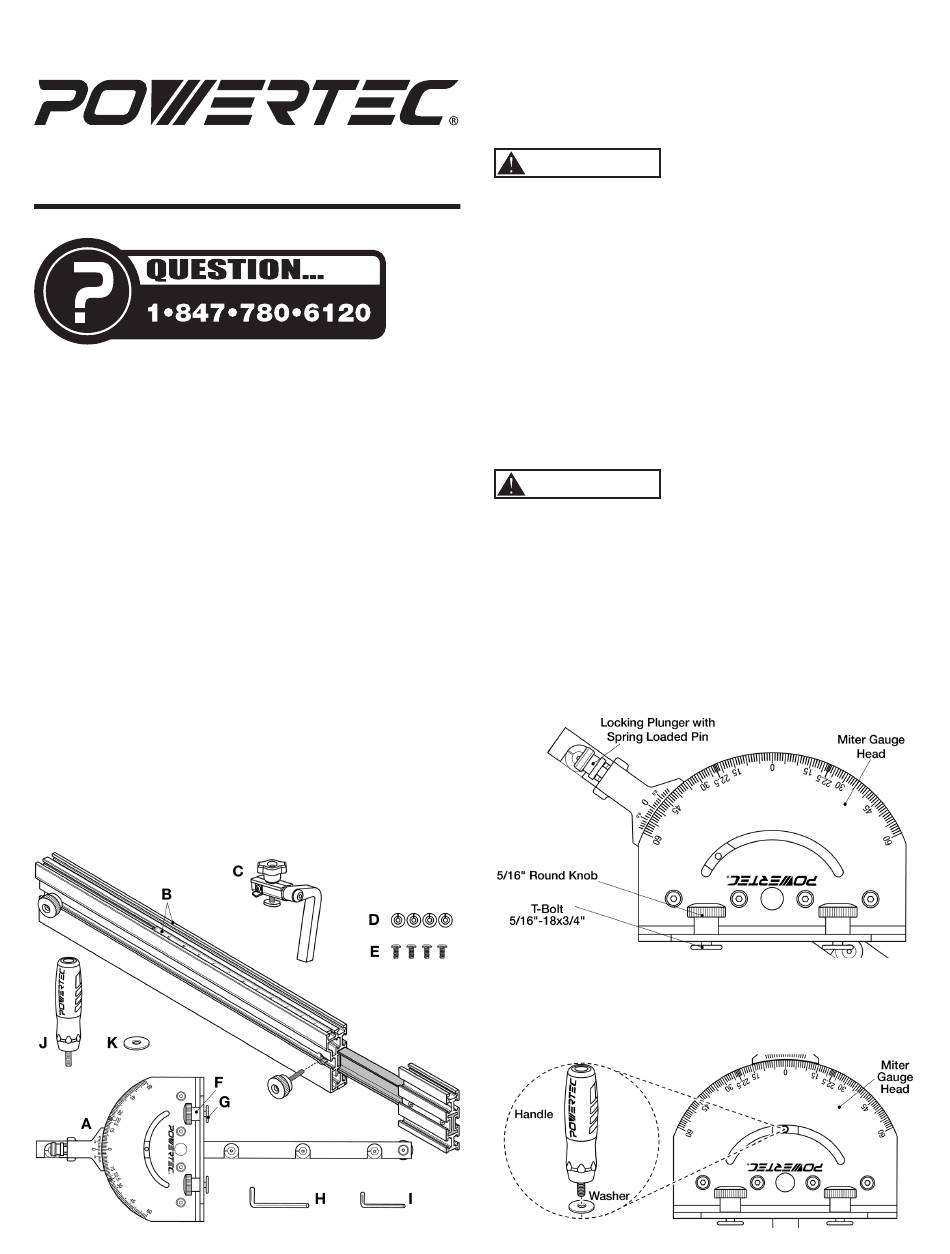

INSTRUCTION SHEET
Precision Miter Gauge Fence System
UNPACKING CONTENTS
NOTE: Check for shipping damage. Check immediately whether
all parts and accessories are included.
ITEM
DESCRIPTION
A
Miter Gauge
Telescoping Fence, 3" x 1-3/8" x 20"
B
with 12" Movable Scale
C
3" Fence Flip Stop with Pointer
D
Extra Expansion Discs (Retain for future use)
E
M4 Screws (for Expansion Discs)
F
5/16" Round Knobs
G
T-Bolt 5/16"-18x3/4"
H
3 mm Hex Wrench
I
2.5 mm Hex Wrench
J
Handle
K
Washer for Handle
WARNING
For your own safety, read the machine's instruction manual before
using any accessory. Failure to heed these warnings may result in
serious personal injury and damage to the tool and the accessory.
• Before using the Precision Miter Gauge Fence System, read
and follow all instructions and safety information provided.
• Always keep hands clear of the blade, cutter, sanding disc/belt.
• Before making adjustments to the Precision Miter Gauge
Fence System, turn off the power, allow the blade, cutter or
sanding disc/belt to come to a complete stop and unplug
the machine.
• Ensure handle and lock knob are tight before using.
• Before turning on the power after adjustments, ALWAYS
verify there is a safe clearance between the blade and fence.
WARNING
Risk of accidental starting and serious personal injury.
Unplug the machine before attaching the Precision Miter Gauge
QTY
Fence System.
1
ASSEMBLY
1
NOTE: This miter gauge is equipped with a Locking Plunger
1
with spring loaded pin. The most commonly used angles are
notched with positive stops 0°, 15°, 22.5°, 30°, 45° and 60°.
4
To set or change the angles see TO USE on page 4.
4
Figure 1
2
2
1
1
1
1
See Figure 2. Place washer onto handle threads and thread the
handle onto the guide bar. Tighten handle.
Figure 2
Model No. 71766
Refer to Figures 1, 2
23-0216

Advertisement

loading
Need help?

Need help?

Do you have a question about the 71766 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PowerTec 71766

  • Page 1 INSTRUCTION SHEET Model No. 71766 WARNING Precision Miter Gauge Fence System For your own safety, read the machine's instruction manual before using any accessory. Failure to heed these warnings may result in serious personal injury and damage to the tool and the accessory.
  • Page 2 SETTING THE GAUGE TO 90° If adjustment is needed: See Figure 3 NOTE: The Miter Gauge arrives factory calibrated. Use the four expansion discs located on the top of the For convenience, the assembled Fence can also be used to verify miter bar to adjust any side movement.
  • Page 3 INSTALL THE FENCE INSERT THE FLIP STOP 1. See Figure 12. Slide the T-Bolt into the slot on the top of the Figure 8 Fence or 3" Fence End (shown with 3" Fence End). Position the arm as needed and tighten the Adjustment Knob. NOTE: When clamped, the unique cylindrical shape of the body wedges into the top of the T-Track allowing the flip stop to work with different size of T-Tracks and eliminates slack or movement.
  • Page 4 FEATURES If desired angle is a positive stop, pull Adjustment Plunger and twist right (clockwise). Allow set pin to drop into notch of the The Fence is equipped with a high quality 12" Movable Scale. desired positive stop. Release the spring loaded plunger to Calibrate the scale by using the pointer on the flip stop to provide secure into place.
