SSET CE-IJ31 DS5-0.5 Series Quick Start Manual

3-phase AC Current Transducer
Istructions
CE-IJ31-##DS5-0.5
1 Overview
This device is a 3-phase AC current isolation transducer. Using the
principle of electromagnetic isolation, can sampling the
three-phase AC current, isolate and linearly output standard DC
voltage or DC current signal. The signal of input and output are
electrically isolated from each, there is a complete linear
relationship between them. The product is with good precision,
high isolation pressure, low temperature drift, small size, easy
installation, etc., can be widely used in electric power,
communications, railway, industrial control and other fields.
Features:
Ø
High precision: better than 0.5
Ø Frequency response: 40Hz ~ 400Hz
Ø High stability: obvious advantages of temperature drift,
bandwidth and accuracy
Ø Easy to use: standard industrial signal output can be directly
connected with the PLC device
Ø Easy installation: the use of standard rail mounting and
screw mounting
2 Case Style

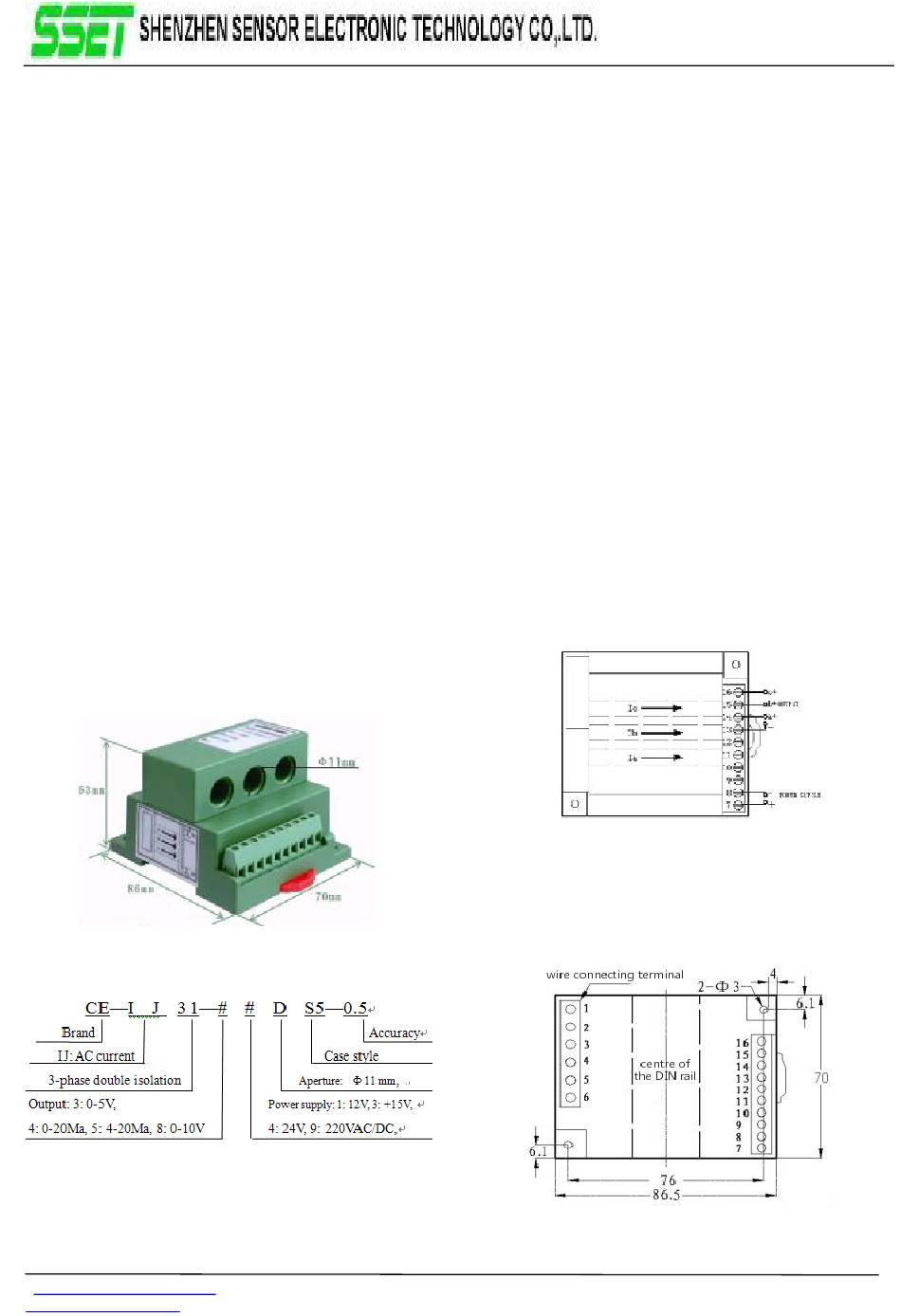

Figure 1 product outline
3 Part Number
Figure 2 Product Selection Table
4 Specifications
Power supply: 12VDC, 15VDC, 24VDC, 220VAC (optional);
Input range: 0~200AAC;
http://www.ce-transducer.com
sales@ce-transducer.com
3rd Floor, building 1, Zaimao industrial park, Baoji road, Bantian, Longgang district,
Shenzhen City, China Post code: 518049
Output: 0～5V ,0～20mA,4～20mA, 0～10V（optional）;
Accuracy: 0.5;
Load capacity: voltage output ≥ 1KΩ, current output ≤ 300Ω;
Temperature drift: <300ppm/℃;
Isolation voltage: DC 2500V;
Response time: ≤300 mS;
Rated power consumption
Output ripple: ≤10mV
Frequency range: 45~65Hz (up to 5K, please specify when
ordering)
Surge Immunity:
Power port level± 0.5KV (L-N / 2Ω / integrated)
Analog I / O port a ± 0.5KV (L-N / 40Ω / integrated wave);
Impulse immunity: input / power port ± 2KV
Analog I / O port ± 1KV
Input overload capacity: 20 times the nominal value of the measured
current (maximum 500A), apply a second (repeat 5 times, interval
Operating temperature: -20℃～+70℃;
Storage temperature: -55 ~+65°C
Installation: rail or screw installation.
5 Connections Diagram
Figure 3 Product wiring diagram (current punch input)
6 Mounting Diagram
Rail mounting dimensions: 35mm; screw mounting dimensions:
76X57.8mm. As shown in Figure 5 (in mm).
Figure 4 installation dimensions
≤1W, ≤2W
:
300S).
humidity: ≤95% (no dew).
;
