Frequency Signal Transducer
Istructions
CE-F01-**MS*-0.5
1 Overview
This product is an arbitrary waveform of the frequency signal
detection
isolation
transducer.
photoelectric isolation can convert the input frequency signal into
a linear output of 0 ~ 5V, 0 ~ 20mA, 4 ~ 20mA and other standard
signals. The input frequency signal can be a sine wave, square
wave and zero-crossing wave, and its amplitude can reach
1000Vpp. This product is double-isolation, the input and output
are isolated from the power supply. Product installation is simple,
can be widely used in communications, power, railway, industrial
control and other fields.
Features:
Ø
With waveform shaping function, can be arbitrary
waveform input measurement;
Ø
Amplitude variation can be as low as 5%;
Ø
Frequency measurement up to 10KHz;
Ø
Good stability and high precision.

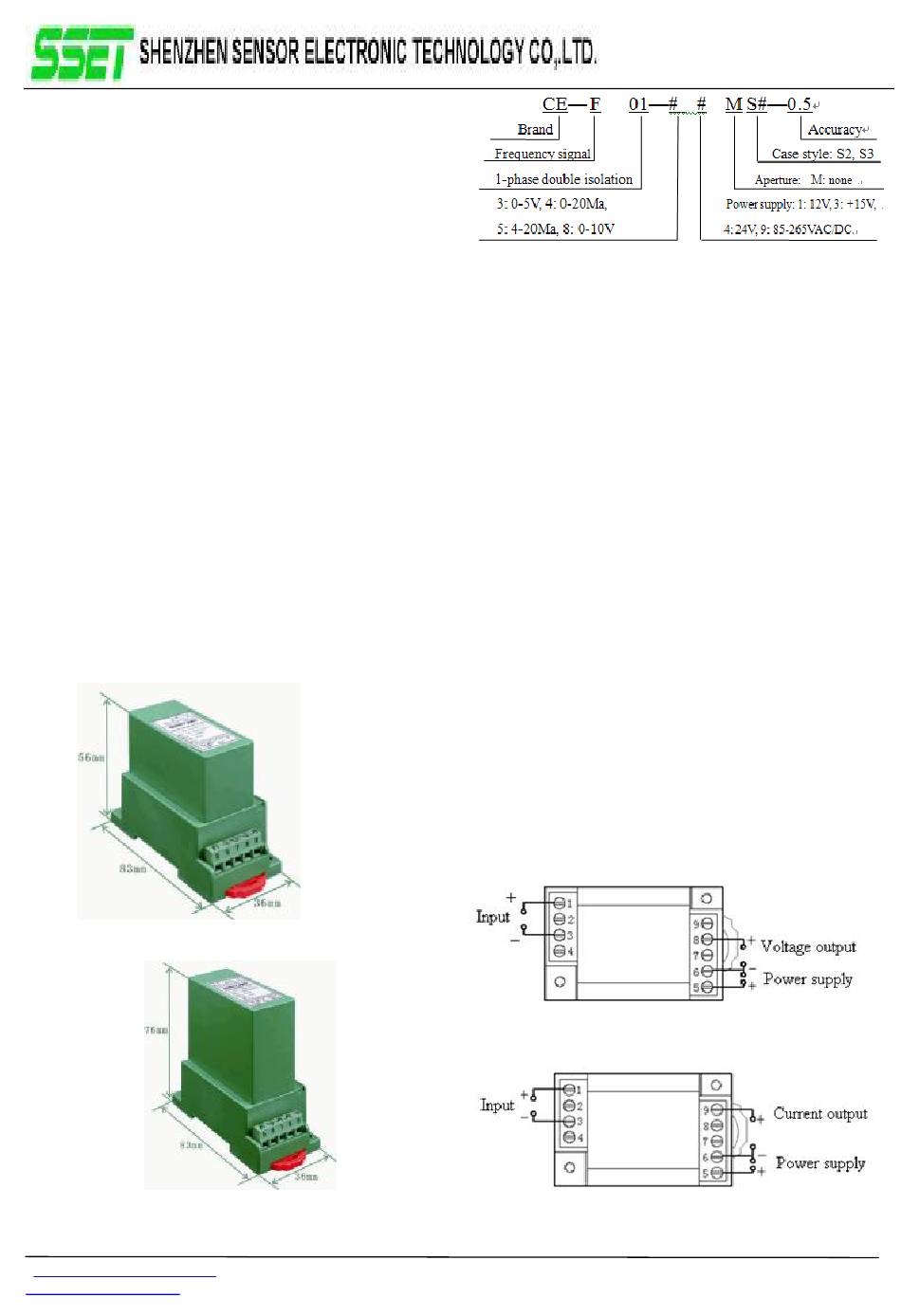

2 Case Style
Figure 1, DC power supply (MS2) product appearance
Figure 2, 220V power supply (MS2) product appearance
3 Part Number
http://www.ce-transducer.com
sales@ce-transducer.com
Using
the
principle
of
3rd Floor, building 1, Zaimao industrial park, Baoji road, Bantian, Longgang district,
Shenzhen City, China
Figure 3 Product Selection Guide
4 Specifications
Test conditions: auxiliary power: +12 V, room temperature: 25°C.
Input range: frequency: 0-50Hz~10KHZ, Amplitude: 5-500V;
Output: 0-5V, 0-20mA, 1-5V, 4-20mA, 0-10V;
Power supply: DC 12V,15V,24V,AC/DC 85V～265V;
Accuracy: 0.5;
Load capacity: ≥2KΩ (voltage output); ≤250Ω (current output);
Temperature drift: <500ppm/°C;
Isolation voltage: DC 2500V
Response time: ≤200 mS; (Frequency <100Hz response time
<800mS)
Rated power consumption: <0.5W
Output ripple: <10mV
Frequency range: 0Hz～10kHz
Surge Immunity: Input 4KV (L-N / 2Ω / integrated wave),
power supply / output port 2KV (L-N / 40Ω / integrated wave);
Impulse immunity: ± 2KV input / power port, analog I / O port ±
1KV;
Input overload capacity: continuous overload: 120%; short-term
overload: 2 times the rated voltage input value for 1 second;
Operating temperature: -10°C~+60°C;
Storage conditions: -40°C~+70°C.
5 Connections Diagram
Figure 4, wiring diagram of CE-F01-3 * MS2 / CE-F01-8 * MS2
Figure 5, wiring diagram of CE-F01-4 * MS2 / CE-F01-5 * MS2
Post code: 518049
