SSET CE-VJ41 -9MSK-0.5 Series Instructions

Three-phase four-wire AC voltage transducer
Istructions
CE - VJ41 - *9MSK - 0.5

1 Overview

This device is a 3-phase AC voltage isolation transducer. Using the
principle of electromagnetic isolation to measure the three-phase
AC voltage signal, isolate and linearly output a variety of
selectable standard signals. It can widely used in AC voltage
signal real-time detection and monitoring, communications,
electricity, railways, industrial control and other fields.
Features：
Ø
Easy installation;
Ø
High precision, low temperature drift;
Ø
Three-phase voltage independent of each other;
Ø
High reliability.
2

Case Style

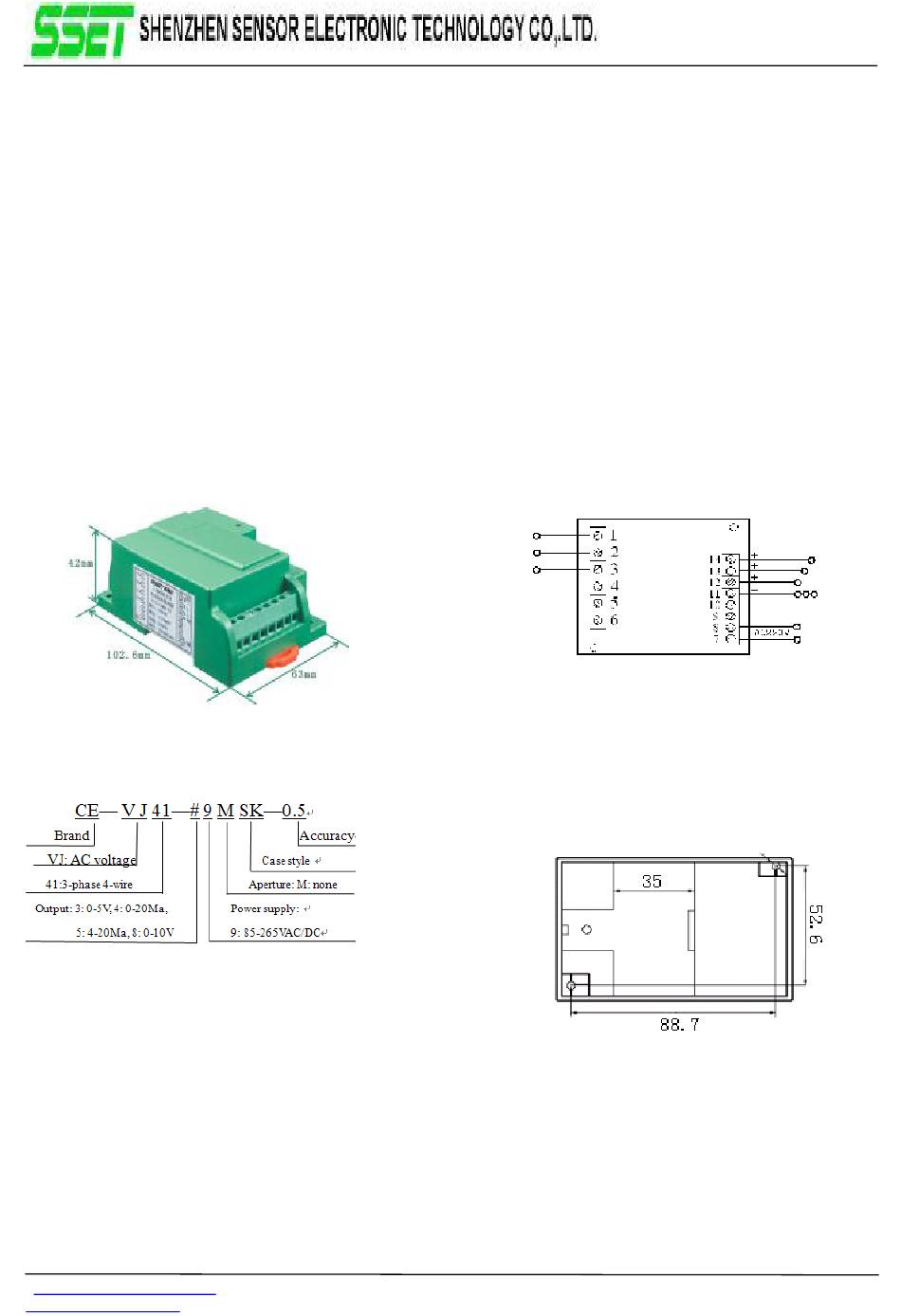

Figure 1, MSK outline

3 Part Number

4 Specifications

Test conditions: auxiliary power: 220VAC, room temperature:
25°C;
Input Range: 0~600VAC;
Output: 0~5VDC, 0~10VDC, 0~20mADC, 4~20mADC;
Power supply: 85~265VAC/DC;
Accuracy: 0.5;
Load capacity: ≥2KΩ (voltage output), ≤250Ω (current output);
Temperature drift: ≤500ppm/°C;
Isolation voltage: ≥2500 VDC;
Response time: ≤300 mS;
http://www.ce-transducer.com
sales@ce-transducer.com
3rd Floor, building 1, Zaimao industrial park, Baoji road, Bantian, Longgang district,
Shenzhen City, China Post code: 5180490
Rated power consumption: 1W (voltage output); 2W (current
output);
Output ripple: ≤10mV;
Frequency range: (45~65Hz up to 5K, please specify when
ordering);
Surge immunity:
Power port level ± 0.5KV (L-N/2Ω/integrated wave)
Analog I / O port.± 0.5KV (L-N/40Ω/ integrated wave)
Impulse immunity: input / power port ± 2KV, analog I / O port ±
1KV;
Input overload capacity: Voltage: 2 times the nominal value;
Operating temperature: -10 ~ 60°C; humidity: ≤95 %( no dew);
Storage temperature: -55 ~+65°C

5 Connections Diagram

(For reference only, the actual application to the product wiring
diagram shall prevail)
Phase-A
Phase-B
Phase-C
Figure 2, CE-VJ41-39MSK/CE-VJ41-89MSK voltage output,
CE-VJ41-49MSK/CE-VJ41-59MSK
wiring diagram.

6 Installations

DIN35 rail mounting or screw mounting, the installation size
as shown in figure (in mm).
Figure 3, SK outline installation dimensions
7 Product's Service

1 Installation

1.1 DIN rail installation method:
①Fix the transducer on the side of the card slot and hook on the
mounting rail;
②Pull the spring pin down;
③Clip the transducer mount on the mounting rail;
humidity: ≤95 % (no dew).
;
Phase-CA
Phase-BC
Phase-AB
Power Supply
current output Product
