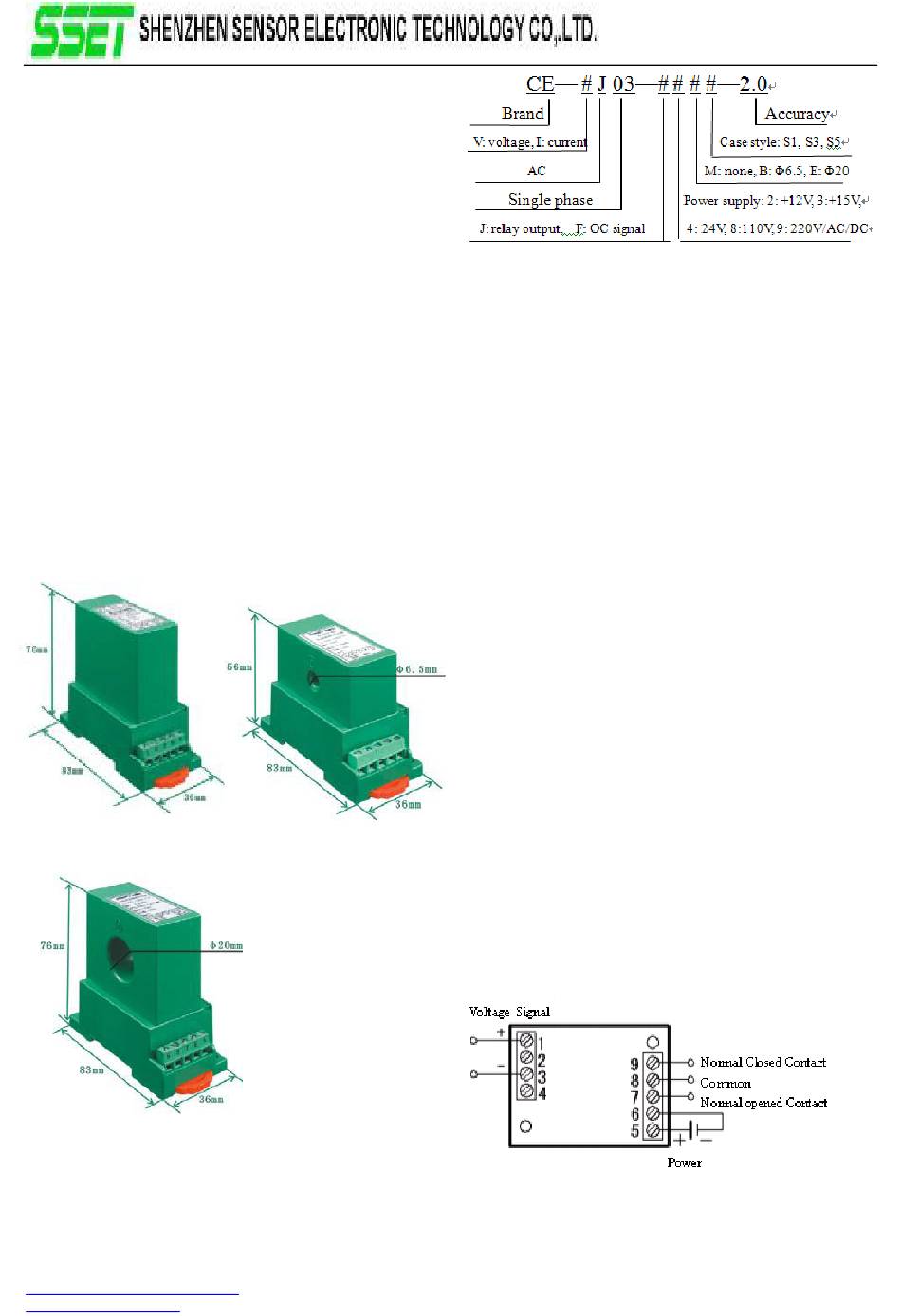

SSET CE-J03 -S-2.0 Series Instructions

1-phase offside Alarm AC Voltage Transducer
Istructions
CE-*J03 - ***S*-2.0
1 Overview
This device is a 1-phase AC current offside alarm transducer,
produced with the use of input, output and power supply isolation.
The input signal is a single AC voltage (current) signal, the output
signal is the relay passive contact switch (or OC door). The
product is mainly used for a variety of electrical control system
security protection and other necessary protection devices.
Features：
Ø
Product input port, power port can withstand 4KV
surge impact, anti-interference ability, safe and reliable;
Ø
With passive relay contacts, OC door and other ways of
output, so that a wider range of products for a variety of
security systems.
Ø
Standard rail and screw installation, simple and
reliable .
2 Case Style
Fig.1, MS3 case
Fig.3, ES3 case
3 Part Number
http://www.ce-transducer.com
sales@ce-transducer.com
Fig.2, BS2 case
Unit 501,BLDG C, BAOFU Jewelry Garden, 33 BULAN Road, Longgang district,
Shenzhen City, China
4 Specifications
Test conditions: auxiliary power: +24V, room temperature: 25℃
Input Range: 0 ~ 1 ~ 500VAC, 0 ~ 0.5 ~ 300AAC
Output: relay output, OC gate output;
Threshold adjustment: customizable;
Hysteresis: -5 ~ -30% (input threshold) (default is 20%);
Power supply: +12VDC, +24VDC, 90V～260V(AC/DC);
Accuracy: 2.0;
Load capacity: 2A / 250VAC or 30VDC (relay output);
RL = 2K, VCC = 24VDC (OC gate output);
Temperature drift: ≤300ppm/℃;
Isolation voltage: ≥2500 V DC;
Response time: ≤300mS;
Rated power consumption: ≤1.1W;
Output ripple: none;
Frequency range: 45~65Hz （ up to 5K,please specify when
ordering）;
Surge impact immunity: power, input port four level 4KV (L-N /
2Ω / integrated wave);
Input overload capacity: Voltage: 2 times the nominal value, for 1
second interval 10 seconds repeat 10 times; Current: 2 times the
nominal value and less than 10A, 5 times a second;
Operating temperature: -10 ~ 60°C; humidity: ≤95 %( no dew);
Storage temperature: -55 ~+65°C
5 Connections Diagram
(For reference only, the actual application to the product wiring
diagram shall prevail)
Figure 4, wiring reference diagram of CE-VJ03 relay switch
output.
Post code: 518049
humidity: ≤95 % (no dew).
;
