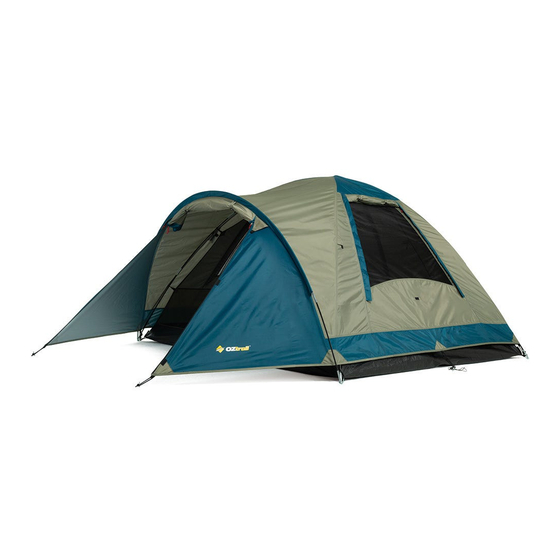

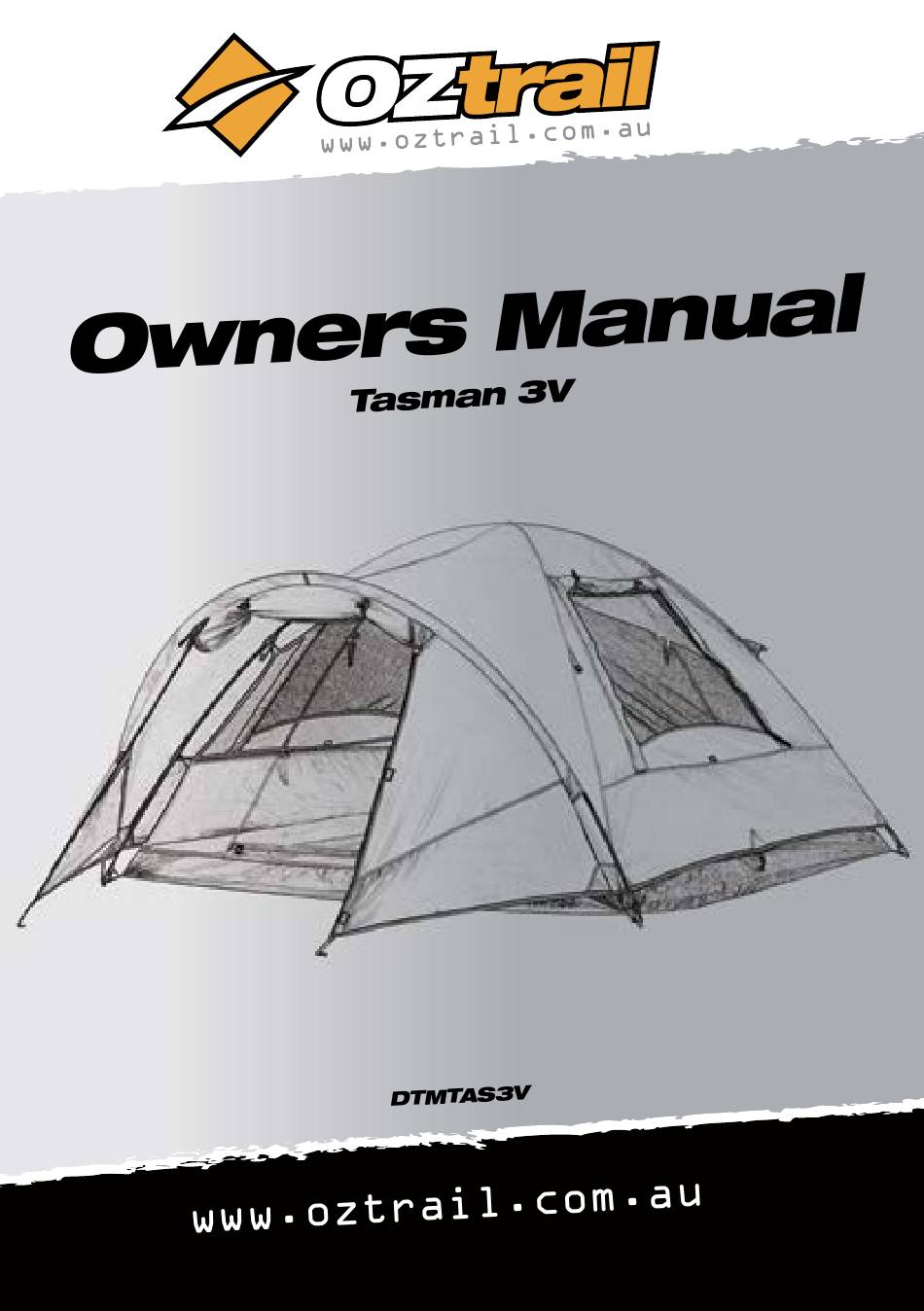

Summary of Contents for OZtrail Tasman 3V
-
Page 2: Table Of Contents
HELPFUL HINT Climate ● Front & rear Fly doors control temperature, ideal OZtrail advises to read your owner’s manual Protection for cool to tropical conditions fully and assemble your tent before going camping to ensure all parts are present and Lightweight design packs away quickly &... -
Page 3: Products And Parts
If you have any questions, your OZtrail dealer will be happy to help you. The following parts are included for Product Code: DTMTAS3V Part Description ... -
Page 4: Assembly Instructions
Assembly Instructions Step 1 Choosing the site Select a sheltered camp site protected from the wind that will not allow water to pond under the tent floor. Clear a level area of all stones, twigs, etc. Step 2 Lay out the tent Unpack the contents of your tent. - Page 5 Assembly Instructions cont. Step 6 Install the rain fly Lay the fly sheet out along the side of your tent. Ensure that you have the front and the back aligned correctly. Slip the remaining fibreglass pole through the sleeve along the front edge of the fly.
- Page 6 Assembly Instructions cont. Figure 10 Step 7 Guy rope and peg out Peg out the guy ropes attached to the fly, make a loop (about 30 to 50 cm long) with the slider on the end of the rope and peg out as far as possible from tent as indicated in Figure 11.
-
Page 7: Disassembly Instructions
Disassembly Instructions Step 1 Step 8 Before removing the fly, close doors, release guy Once the tent bundle is rolled up, tie the ropes and Posibrace™ Velcro™ tab points that straps around it and place into the tent carry attach the fly to the poles and unhook all base bag with peg bag, Owner’s Manual and other hooks. -
Page 8: Warranty
Shock cord is designed to help you purchase clearly showing the date and detail keep your tent poles organised and to of the purchase. You may also contact OZtrail allow quick assembly of the poles. Over Leisure Products, by phone: 07 3279 1800, or in... -
Page 9: Prolonging The Life Of Your Tent/Shelter
Fading of colour is an early • When removing pegs, do not use the warning sign. OZtrail products are not webbing or corner of the tent as your designed as permanent dwellings or handle. -
Page 10: Important Safety And Care Information
Please read before setting up your tent/shelter CAMP SAFE - SAFETY HABITS TO PREVENT INJURY CAUSED BY FIRE Fabrics used in the construction of OZtrail tents/ • Do not pitch the tent/shelter near a camp shelter are treated for fire retardant properties. - Page 11 Important Safety and Care Information cont. To prevent injury caused by your camping environment • Do not pitch your tent/shelter on an area that could get flooded • Do not pitch your tent/shelter near cliffs in case of collapse or rock fall •...
-
Page 12: Replacing The Shock-Cord
Poles and Shock Cord you will be ensuring that you get the best performance and life out of Step Two: Threading the Pole Sections your OZtrail Tent. Tie a large knot in the end of the Shock Cord length. This knot needs to be large enough... - Page 13 Tent Pole and Shock Cord Replacement cont. Once your new pole is cut to length you can HELPFUL HINT follow the ‘Replacing Shock-Cord’ directions to Towards the end of the Pole Length it may get your Pole Length complete. get quite hard to thread the Pole Sections as the Shock Cord is stretching.
-
Page 14: Understanding Waterproofness
To prevent this, do not pitch the Know your tent tent over hollows and make sure water drains away from the tent. OZtrail tents are manufactured from waterproof and water repellent fabrics. However, with the STRUCTURAL INTEgRITY addition of seams, zips and other desirable... -
Page 15: Zips
Zips REDUCINg THE RISk OF JAMMINg CRIMPINg A ZIP-SLIDER FABRIC IN THE ZIP The most common reason why zips burst open is that the zip slider does not close the coil • When using the zip, hold the pull-tab tightly enough. Wear and tear may cause the between your thumb and forefinger with gap marked A to open up. - Page 16 For other OZtrail products to choose from, see our website or facebook.com/OZtrailAustralia. Designed & Imported by: OZtrail Leisure Products • 45 Limestone Street Darra QLD 4076 • Made in China...
