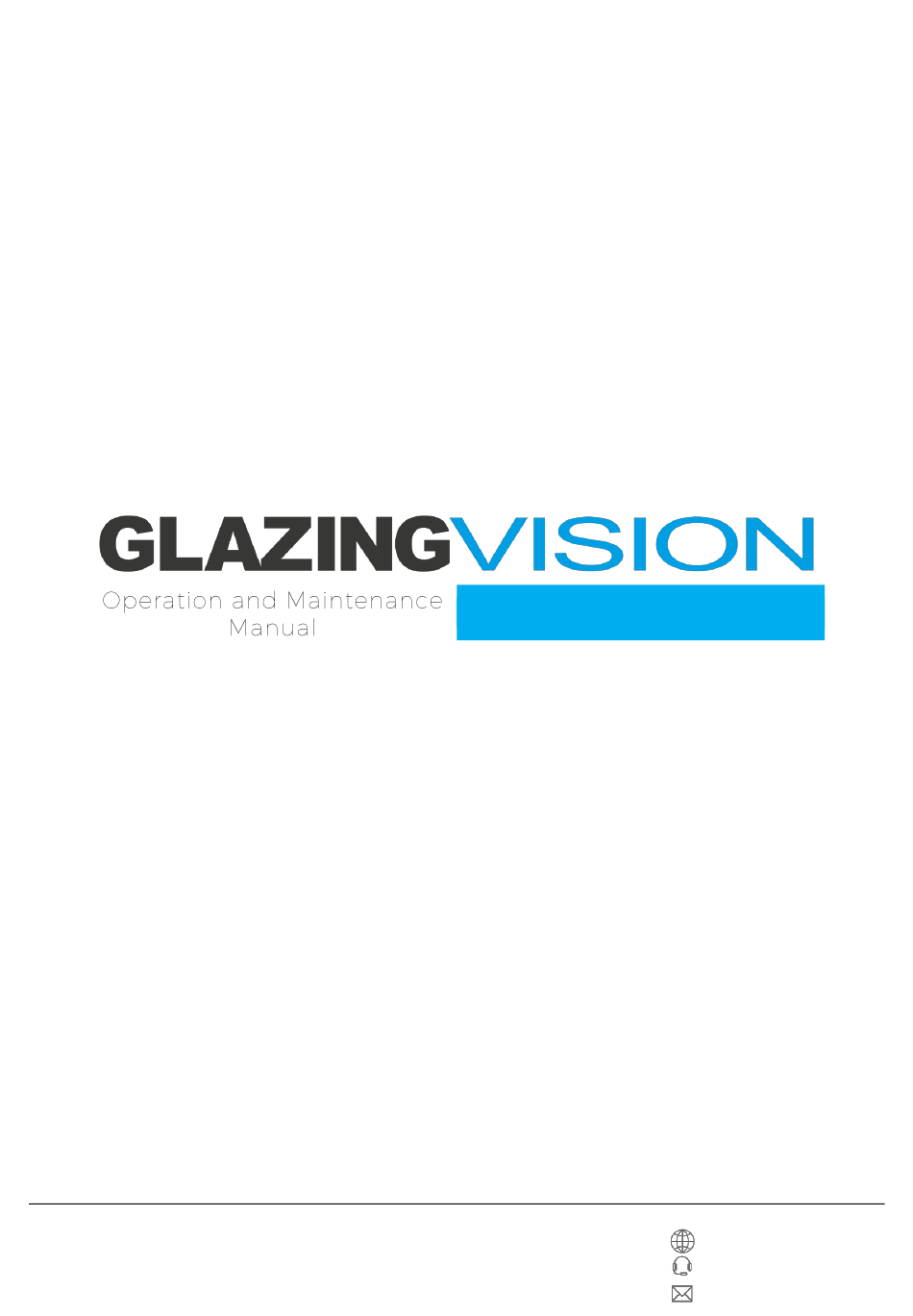

- Page 1 Three Wall Box 606-OM-UK-001 v1.4 – 26 Feb 2021 www.glazingvision.co.uk +44 (0)1379 658300 info@glazingvision.co.uk...
-
Page 2: Table Of Contents
606-OM-UK-001 v1.4 – 26 Feb 2021 Contents Section Description Page Introduction Safety Information Controls and Operation Product Safety Manual Override Troubleshooting Glass Specification and Breakage Instructions Routine Testing and Maintenance Disposal at End of Life Serial Number Warranty Information Maintenance Log Need assistance? +44 (0)1379 658300 info@glazingvision.co.uk Page 2 of 17... -
Page 3: Introduction
Introduction Thank you for purchasing a Glazing Vision Three Wall Box. We hope that it gives you many years of service. The Three Wall Box is a thermally efficient opening product designed to allow access from a stairwell to a roof terrace or similar. It is fixed to the building structure at the back and either side. -
Page 4: Safety Information
Regular cleaning and maintenance must be carried out according to the guidelines described in this manual. • Glazing Vision strongly recommends that any work is carried out by suitably qualified individuals (e.g. Glazing Vision trained personnel or contractors, or an experienced electro-mechanical service engineer). - Page 5 • Do not knock or damage the proximity sensors so they become misaligned as that will prevent the product from operating. For more information or assistance please contact Glazing Vision. Need assistance? +44 (0)1379 658300 info@glazingvision.co.uk Page 5 of 17...
-
Page 6: Controls And Operation
‘one touch’ operation). Note that the product will stop automatically when it becomes either fully open or closed. Do not leave your product open in rain or inclement weather. Glazing Vision cannot be held responsible for damage caused by failure to comply with this instruction. - Page 7 606-OM-UK-001 v1.4 – 26 Feb 2021 Pairing a Remote Control Additional remote controls can be paired to or unpaired from the product. To put the product into pairing mode and prepare it for adding or removing a remote control follow these steps: Ensure that the product is fully closed.
- Page 8 The keypad option offers secure access into the product from the outside via a numerical pass code. To open or close the product, enter the four-digit numerical code (Glazing Vision supplies an initial code with the product and instructions for changing it as required).
-
Page 9: Product Safety
Stuck Open or Closed If the Three Wall Box is stuck in the open or closed position and will not open/close electrically, the mechanisms can be disengaged to allow the door to be opened/closed manually. Manual override can be done from the inside. Do not attempt to manually override the product without a safe working platform. - Page 10 Then simply press the close button on the control switch. The product will slowly creep to its fully closed position. The product is then ready to resume normal service. If further assistance is required, contact Glazing Vision to arrange for an engineer to visit and resolve the issue. Need assistance? +44 (0)1379 658300 info@glazingvision.co.uk...
-
Page 11: Troubleshooting
Troubleshooting The Three Wall Box control board monitors the operation of the product. If a fault is detected, the control board will disable the unit to prevent possible damage. Fault and standard conditions are indicated by the status light on the control switch (figure 1). The following table shows the various status light displays and their meanings. -
Page 12: Glass Specification And Breakage Instructions
Various options are available at time of order. If specific data is required for the glazing please contact your supplier for a glass data sheet covering the specification installed within your unit. Breakage Instructions Glass breakage is not covered under the product warranty. In the event of the glass being damaged please contact Glazing Vision for assistance. Need assistance? +44 (0)1379 658300 info@glazingvision.co.uk... -
Page 13: Routine Testing And Maintenance
Routine Testing and Maintenance General Maintenance and Safety To keep the Three Wall Box in good working order there are a few basic points that should be observed: • Do not place anything on, or cause obstruction to the moving section of the product when opening the unit as this may cause damage to the unit’s mechanisms and/or prevent it from opening. -
Page 14: Disposal At End Of Life
Regular cleaning should be carried out, increasing the frequency if the area is subject to excess debris such as falling leaves or heavy soiling from atmospheric pollution. Due to the Three Wall Box’s unique bonding method and the pitch built into the product, there should be no water ponding on the glass when installed correctly. -
Page 15: Serial Number
Serial Number Each Glazing Vision product has a unique serial number. A label giving this serial number is affixed to the exterior of each Three Wall Box. This number should be recorded within the maintenance log section of this manual for future reference. If you need to contact us for any reason, Glazing Vision may ask for the product’s serial number to enable us to assist with your enquiry. -
Page 16: Maintenance Log
606-OM-UK-001 v1.4 – 26 Feb 2021 Maintenance Log Project Address: …………………………………………………………………………………………………………………………………. Unit Serial Number: ……………………………………………………………………………………………………………………………... Work Completed Notes Name Date Annual Requirements yes/no Battery Replacement yes/no Cleaning Requirements yes/no Annual Requirements yes/no Battery Replacement yes/no Cleaning Requirements yes/no Annual Requirements yes/no Battery Replacement yes/no Cleaning Requirements yes/no Annual Requirements yes/no... - Page 17 606-OM-UK-001 v1.4 – 26 Feb 2021 Work Completed Notes Name Date Annual Requirements yes/no Battery Replacement yes/no Cleaning Requirements yes/no Annual Requirements yes/no Battery Replacement yes/no Cleaning Requirements yes/no Annual Requirements yes/no Battery Replacement yes/no Cleaning Requirements yes/no Annual Requirements yes/no Battery Replacement yes/no Cleaning Requirements yes/no Annual Requirements yes/no...
