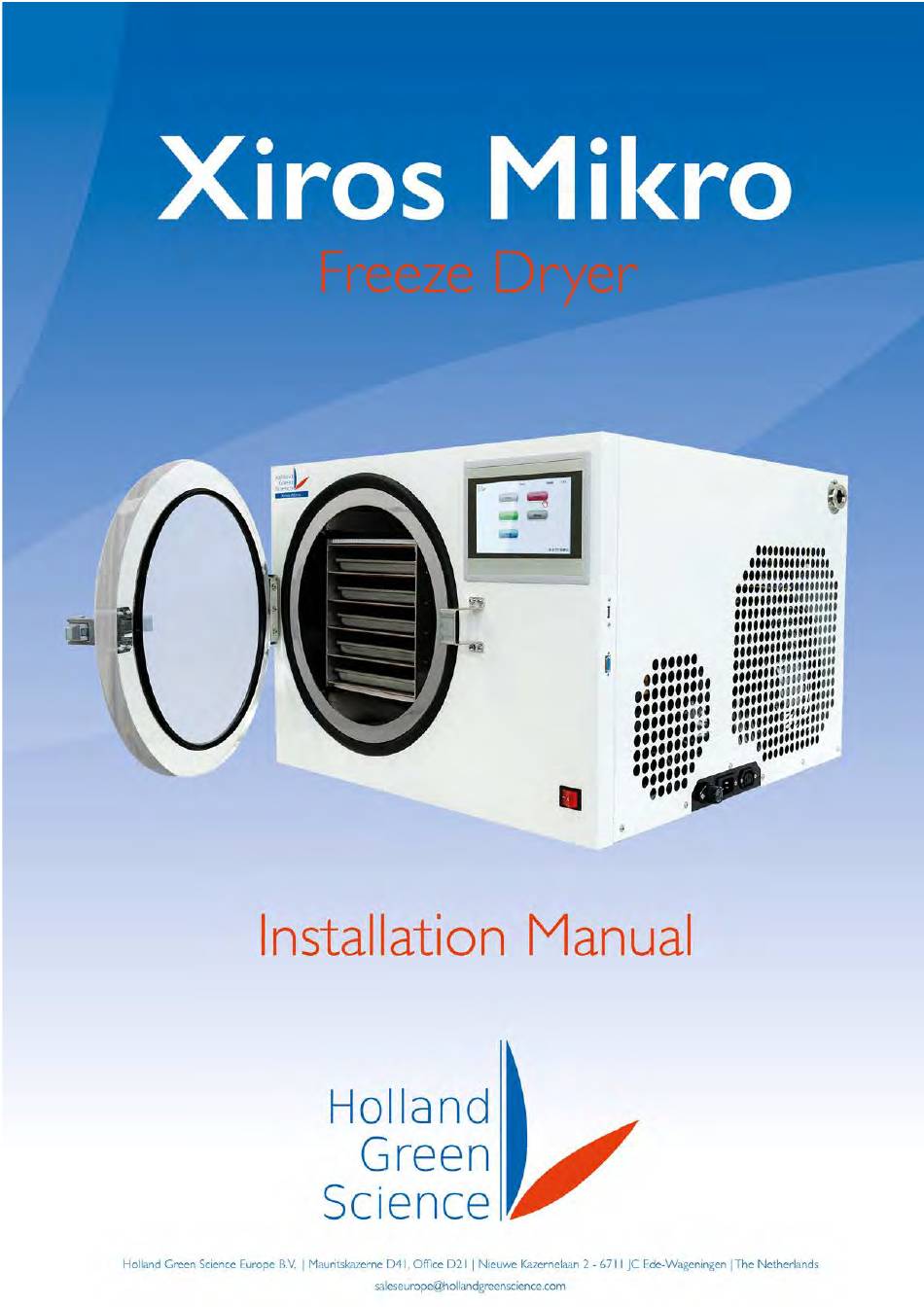

Holland Green Science Xiros Mikro Installation Manual

Freeze dryer
Hide thumbs Also See for Xiros Mikro:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xiros Mikro and is the answer not in the manual?

Questions and answers

Related Manuals for Holland Green Science Xiros Mikro

Summary of Contents for Holland Green Science Xiros Mikro

  • Page 2: Table Of Contents

    Components & Assembly ........................11 8.1. Main unit ..............................11 8.2. Other components ..........................12 Installing the Xiros Mikro ........................... 13 9.1. Assembling the freeze dryer ......................13 9.2. Connecting the vacuum pump ..................... 13 9.3. Connecting the power supply ...................... 15 10.

  • Page 3: Revision History

    Xiros Mikro Installation Manual 1. Revision history Revision Date Description 05/07/2024 Release www.hollandgreenscience.eu...

  • Page 4: Disclaimer & Warranty

    Installation Manual 2. Disclaimer, Terms and Conditions • The intellectual property rights for this manual belongs to Holland Green Science Corporation (hereinafter referred to as “the Company”). • Products of the company are under the patent protection of China and other countries and regions (inclusive of obtained patents and patents currently under application).

  • Page 5: Safety

    Xiros Mikro Installation Manual 3. Safety DANGER! (may cause serious damage to property and or casualties) 1. Please carefully read this User Manual prior to operating the instrument and observe and verify that all connections are properly secured. 2. Utility requirements: Please ensure that the electrical connections meet the local standards and that the power supply is compatible with the instrument nameplate.
  • Page 6 Xiros Mikro Installation Manual ATTENTION! (may affect operational performance or service life) 1. The overall safe operation of the instrument is the responsibility of the owner of the instrument and their assigned operator(s), who in turn are responsible for ensuring the user manual guidance is applied to ensure the safety and protection of personnel and the instrument before, during and after freeze-drying operation.

  • Page 7: Introduction

    Xiros Mikro Installation Manual 4. Introduction Users are advised to carefully read this manual prior to operating the instrument so that they are aware of all precautions outlined and to ensure operation is in accordance with the instructions contained within this manual.

  • Page 8: Technical Specifications

    Xiros Mikro Installation Manual 5. Technical specifications Model 20107002 Product Name Xiros Mikro Product Weight 87 kg Rated Voltage 230V ± 10% Rated Frequency 50 Hz Max Vacuum Pump Current Total Condenser Volume 11 litres Ice Condenser Capacity 8 kg...

  • Page 9: Inspection

    Xiros Mikro Installation Manual 6. Inspection 6.1. Packing list Unpack the equipment carefully and check for any damage which may have arisen during transport. In the event of identified damage, please contact support. The package includes the following items: Item Description...

  • Page 10: Precautions

    Xiros Mikro Installation Manual 7. Precautions • The power supply should be connected to the electrical outlets safely and by authorized personnel only. It is important that anyone using this equipment does so with dry hands to minimize the risk of electric shock.

  • Page 11: Components & Assembly

    Xiros Mikro Installation Manual 8. Components & Assembly 8.1. Main unit Shelf stack with trays Touchscreen Vacuum pump Main door seal connector Chamber door KF25 seal Chamber door Vent Electrical fuse Door lock Serial port Vacuum pump power USB-A Port...

  • Page 12: Other Components

    Xiros Mikro Installation Manual 8.2. Other components Clamp and seal ring Vacuum hose and KF 25 connectors Trays Power connector Vacuum pump (Plug dependent on region) Vacuum pump power connector (Plug dependent on Drain hose region) www.hollandgreenscience.eu...

  • Page 13: Installing The Xiros Mikro

    Xiros Mikro Installation Manual 9. Installing the Xiros Mikro 9.1. Assembling the freeze dryer An instructional guide and video can be found at: https://hollandgreenscience.eu/service-support 9.2. Connecting the vacuum pump The connector for the vacuum pump is located at the upper right corner at the back of the instrument (Figure 1).
  • Page 14 Xiros Mikro Installation Manual Wrap the clamp around the sealing ring and close the clamp (Figure 4). Tighten the wing nut as shown in Figure 5. Please note that the clamp only needs to be done up finger tight – excessive tightening may cause damage to the fittings.

  • Page 15: Connecting The Power Supply

    Xiros Mikro Installation Manual Make sure the strainer is in the correct position as shown in Figure 7. Ballast valve should be in the off position as shown in Figure 8. Figure 7 Figure 8 Ballast valve needs to be in the off position, 9.3.
  • Page 16 Xiros Mikro Installation Manual • Locate the power connectors for the main unit and the vacuum pump at the right side of the instrument (Figure 9). • Connect the vacuum pump power plug to the vacuum pump power connector. Ensure the vacuum pump is switched to ‘on’...

  • Page 17: First Use

    Xiros Mikro Installation Manual Figure 12 10. First use In order to get rid of the so-called new car smell, which sometimes occurs. We always recommend starting your initial run, with the following steps. 10.1. Defrost cycle First start a defrost cycle: Go to defrost from the main menu, enter setpoints 60°C and 30 minutes (Figure 13).

  • Page 18: Bread Run Program

    Xiros Mikro Installation Manual Figure 13 • Remove trays. • Open the drain valve. • Close the door. • Start defrost. • After the defrost cycle is complete, let the machine cool down. 10.3. Bread run program Second step is a bread run. For this run you fill the trays with moist slices of bread.
  • Page 19 Xiros Mikro Installation Manual Figure 14 www.hollandgreenscience.eu...

  • Page 20: Starting A Program

    Xiros Mikro Installation Manual Figure 15 10.3. Starting a program Before starting the program, please ensure the following: • The product that needs to be freeze dried is evenly distributed between each tray for optimal drying. • The drain valve is closed.

  • Page 21: Finishing A Program

    Xiros Mikro Installation Manual Figure 16 10.5. Finishing a program When the “System state” displays “Storage” (Figure 17), the Program is finished, and it will maintain temps and pressure based on the storage parameters. Tap on “Complete” to stop the Program. A popup will appear to confirm the stoppage of the program (Figure 18).
  • Page 22 Xiros Mikro Installation Manual Figure 17 Program stage / mode in Storage, this means , the Program is finished, and it will maintain temps and pressure based on the storage parameters. Touch the screen to end the program. Figure 18...

  • Page 23: Defrosting The Chamber

    Xiros Mikro Installation Manual Figure 19 Drain valve: During aeration the hose should not be connected. 10.6. Defrosting the chamber To get rid of the ice in the chamber, you can connect the hose to the drain valve and put the end of the hose in a container or drain.
  • Page 24 Xiros Mikro Installation Manual Set the defrost temperature and defrost time as desired (Figure 12). For most users, 50 C defrost temperature and 2 hours hold time are adequate. Figure 20 Drain valve: During defrost the hose should be connected, the other end should be placed in either a container or drain.

  • Page 25: Fault Diagnosis

    Xiros Mikro Installation Manual 11. Fault diagnosis Before conducting a diagnosis, verify that the chamber is clean, dry, and empty of product. Error Solutions Ultimate Vacuum of 1.5 x 10-1 mbar Check that the vacuum pump is correctly connected to the main unit not reached with the clamp (tightly).

  • Page 26: Cleaning And Maintenance

    Xiros Mikro Installation Manual 12. Cleaning and Maintenance 12.1. Cleaning • Water from the product will collect inside of the chamber during drying. Please be sure to defrost after each run and clean the inside of the chamber periodically by wiping down the chamber walls with washing detergent.
