Summary of Contents for HY-CLOR i6

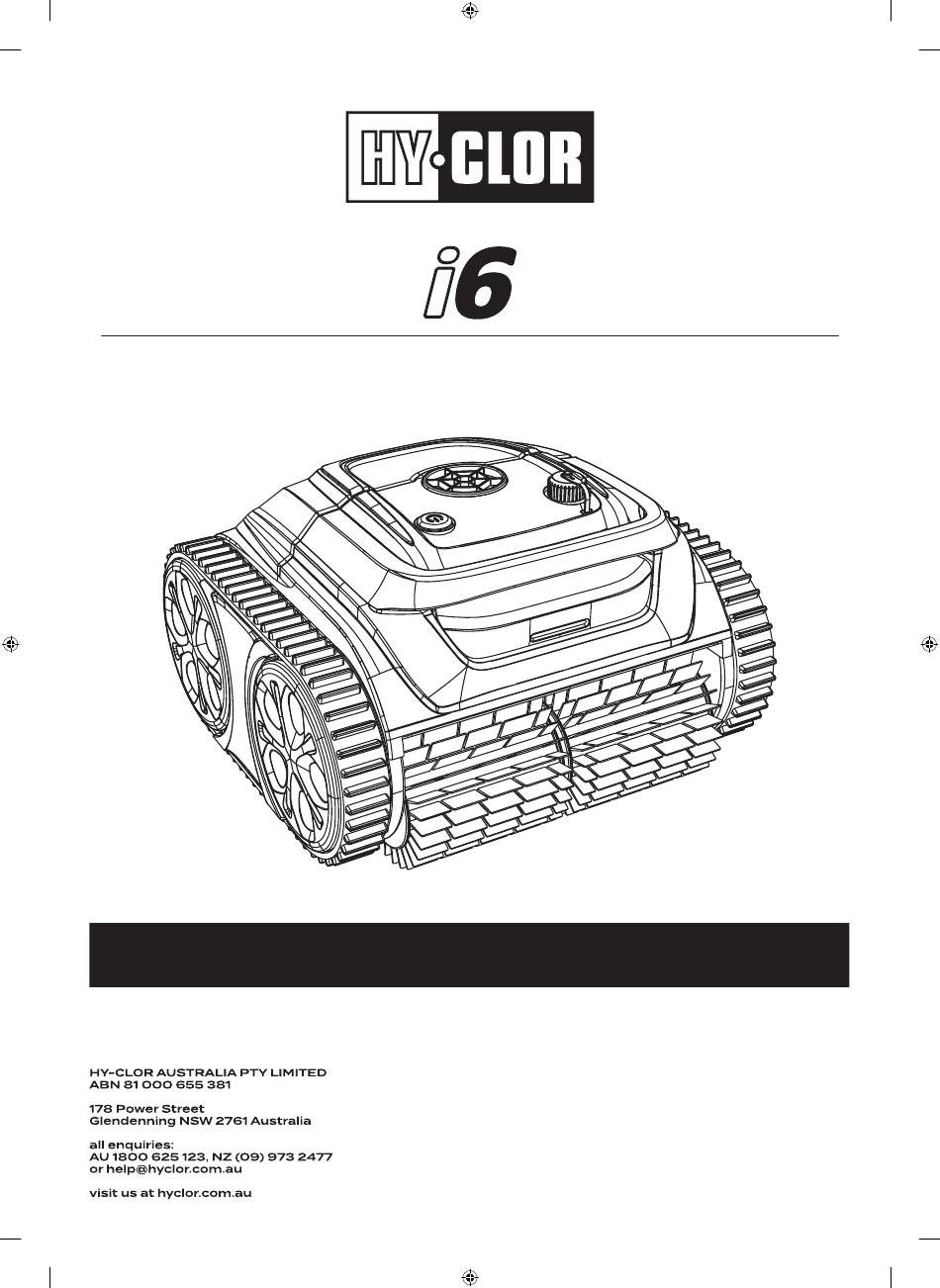

- Page 1 CORDLESS ROBOTIC POOL CLEANER INSTALLATION & OPERATION MANUAL Suits: HYCROBOTi6 Version 1.0...
-
Page 2: Table Of Contents
At Hy-Clor we are dedicated to making pool Contents care easier and more affordable. The i6 cleaner has been designed to be easy to use, HY-CLOR i6 AT A GLANCE reliable and extreamly effective. Features such as smart navigation, wall, floor and waterline cleaning,... - Page 3 Read the manual carefully before you use the cleaner. Your safety is the most important thing. Please read through and operate the device as per instructions, HY-CLOR is not held liable for any loss or injury caused by improper use. Warning Failure to operate the device as per the warnings can earth leakage interrupter (ELI).
-
Page 4: Hy-Clor I6 At A Glance

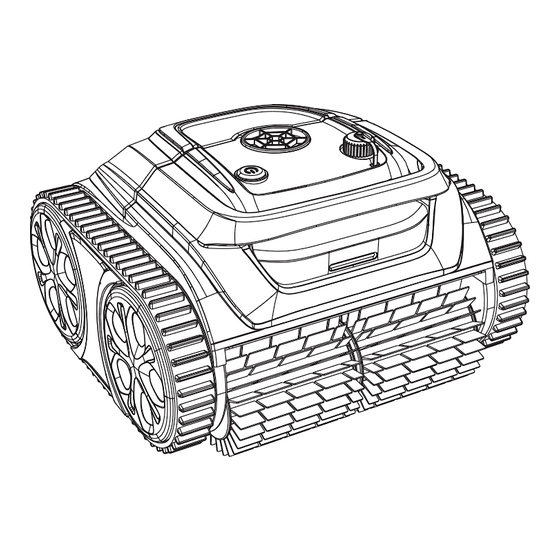

Hy-Clor i6 at a glance Product External Overview Pump Charging Port On/Off Button Track Handle LED Indicator LED will display different colour’s for different status’s. Scrubbing Brush Top Cover Handle Pulls open the cover to take out the filter basket. -
Page 5: Product Internal Overview
Product Internal Overview Sealed Part Filter Basket Caution: The internal Internal Filter Basket (180 micron): This basket stores battery and motor are sealed. Do not attempt to collected debris and should be cleaned after each use to open sealed parts. Only authorised persons may prolong the longevity of the open the device for safety... -
Page 6: Get Started
The charging adapter has an indicator light. The green light indicates that the battery is full. The red light indicates that charging is in progress. Color Indication Charging in Progress Green Battery is full The Hy-CLOR i6 will take approx 2.5 hours to charge from empty. PRODUCT HELPLINE AU: 1800 625 123 help@hyclor.com.au NZ: (09) 973 2477 www.hyclor.com.au... -
Page 7: Setup Your New Hy-Clor I6
Solid or flashing Fault Note: 1. W hentheyellowlightisbreathing/flashing,youshouldremovethei6fromthewater and charge it. 2. If the red LED light is on, you can refer to the troubleshooting section or contact Hy-Clor for assistance. PRODUCT HELPLINE AU: 1800 625 123 help@hyclor.com.au NZ: (09) 973 2477... -
Page 8: Connect To Your App
Connect to your App You can download the HY-CLOR Robot Cleaners App to your smart mobile device by scanning QR code below, or from Google Play or App Store. Android iOS 10.3 or later Android 4.3 or later Choose your cleaning mode After connecting to your App, you can choose a cleaning mode for your device. -
Page 9: How To Start Your Hy-Clor I6
How to start your Hy-Clor i6 Note: If using the app make sure you preset the desired cleaning mode before putting the i6 into the pool. Turn on the device, hold the handle of the cleaner, Let it sink down to the floor to empty trapped air and put it into the pool vertically. - Page 10 When the i6 has finished its cycle or has low battery, Hook the cleaner out via the handle to water level. it will attempt to self-park. It will move to the closest wall and flash yellow, indicating that it has completed its cycle or has low battery.
-
Page 11: How To Clean The Internal Filter Basket
Note: Ensure Device is Off: Make sure the device is switched off while the cover is open to preventanyaccidents.CleanFilterBasket:Thefilterbasketshouldbecleanedbeforethe i6 is completely dry. This will help prolong the longevity of the basket and maintain optimal cleaning performance. Take out the filter basket. -
Page 12: Device Specification
DeviceSpecification Model Hy-Clor i6 Model - HYCROBOTi6 Pool Size Up to 121 square meters (130,000 LT) Depth (max) 3 meters Device Dimension 45.72cm(L) x 43.18cm(W) x 29.21cm(H) Weight Runtime Up to 180 min (3 hours) Charging Time 150min (2.5 hours) Voltage Battery/25.2V... -
Page 13: Faq & Troubleshooting
Q: What pool shapes and surfaces is the i6 suited for? A: The i6 will work in all pool shapes, with the integration of the App the user can set desired cleaning pattens. The i6 is suitable for PVC, Pebblecrete, Marblesheen, Concrete, Vinyl liner and Quartzon pools. The i6 will not work in pools that feature a beach or sloped ledge and infinity edges. -
Page 14: How To Maintain Your Device
How to Maintain Your Device Follow the steps below to store your i6 cleaner and to maintain good performance. a) Ensure the device is powered off. b) Clean the filter basket when the cleaner has been removed from the pool and dry the cleaner out. -
Page 15: Warranty Terms And Conditions
Damage to a Vinyl liner is not covered under warranty. It is up to the user to make sure the liner quality is of good quality and will not be damaged using the ‘i6’ Pool cleaner. Warranty is only for the Goods included in the box. Shipping fees may apply.
