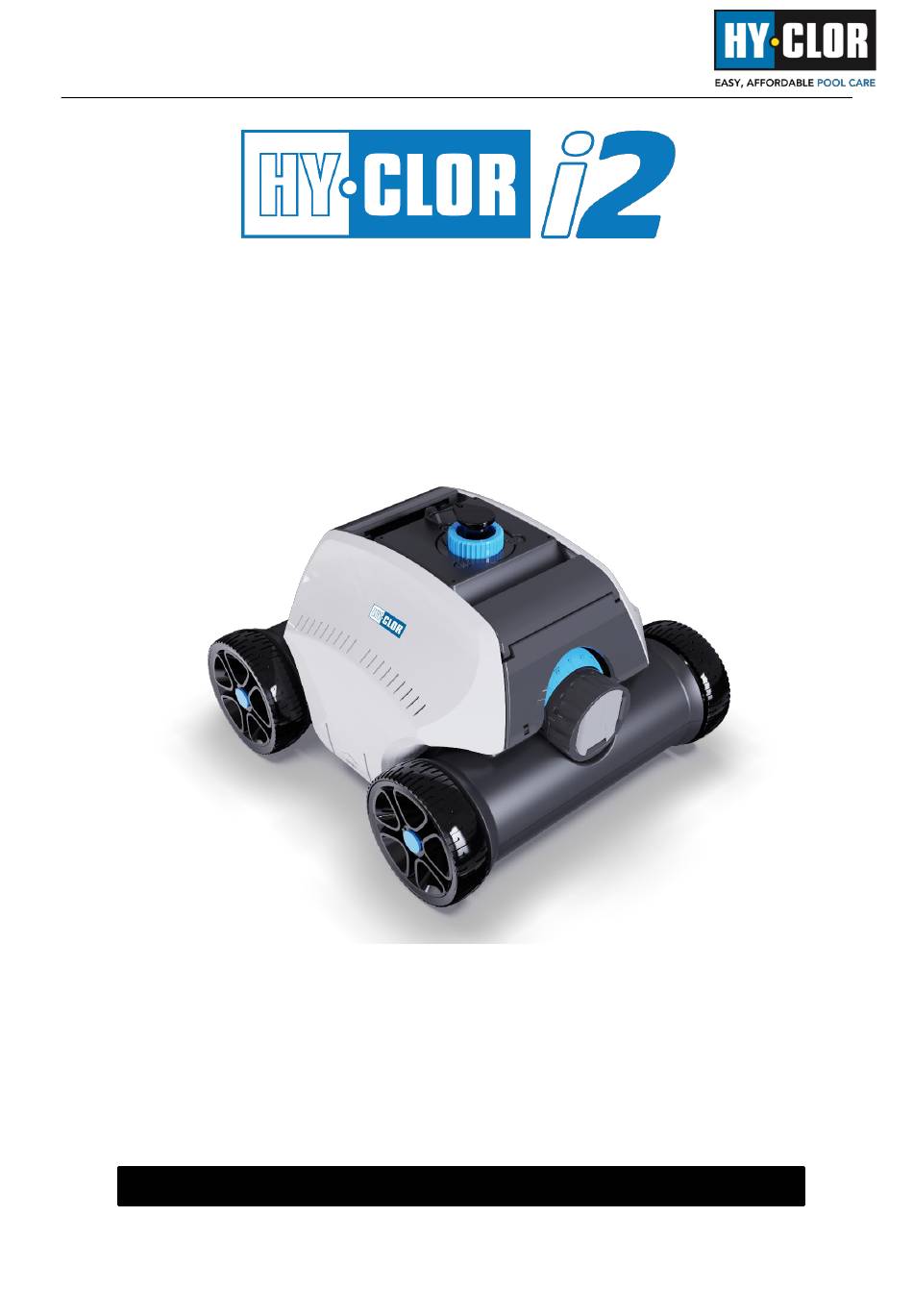

- Page 1 BATTERY ROBOTIC POOL CLEANER INSTALLATION & OPERATION MANUAL Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 2 Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
-
Page 3: Table Of Contents
Thank you for purchasing Hy-Clor i2 Robotic Pool Cleaner. If you have any questions or issues, please contact your local dealer for customer service. Table of Contents Important Precautions ......................... 1 Introduction ..........................2 Appearance characteristics & structure ..................2 III. -
Page 5: Important Precautions
2. Use only the accessories recommended or sold by Hy-Clor to ensure compatibility and safety. 3. The i2 Battery Cleaner is specifically designed for swimming pools with a flat floor and a maximum incline of up to 30 degrees. However, 15 degrees is optimal. Please ensure your pool meets these requirements. -
Page 6: Introduction

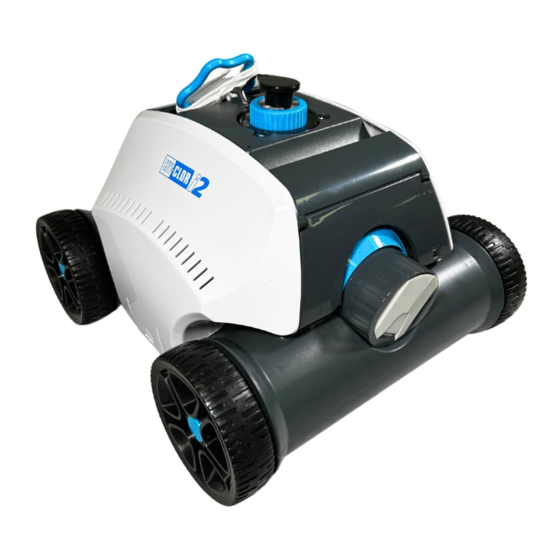

I. Introduction • The robotic pool The Hy-Clor ‘i2’ is a rechargeable, battery-driven automatic pool cleaner. • It is designed for pools with a flat floor and a maximum incline of 15 degrees. • The device has wheels, not rollers, so it will not clean all the way to the waterline. -
Page 7: Specifications
III. Specifications Product information: Power Specifications: Name: Hyclor i2 Power: 50W Model: Hj1103 Working Voltage: 12.6V Size: 400 (L) * 360 (W) 270 (H) mm Input Voltage (adapter): 100Vac- 240Vac Weight: 5.8kg Input power of adapter: 47Hz-63Hz Output current of adapter: 1.8A Performance and Capacity: Output voltage of adapter: 12.6V... -
Page 8: Operation Instruction
• The Sweeping brush Snaps into the outside of the bottom of the i2 Robot. • Install the Floating handle with the cord to the top of the cleaner. This makes it easier to retrieve the cleaner once it has finished cleaning. - Page 9 3. Plug in the cleaner using the supplied charger to charge the battery. 4. Set the nozzles to the required angles (see next section) Charger indicator (On Charger) Status Battery is charging Green Charging is finished Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 10 The cleaner is working in the pool: Blue light flashes The working cycle has finished (low battery): Red light is steady Faults: Red light flashes Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 11 • The cleaner moves in an approximately straight line when the nozzle angle is 0°. • The cleaner moves in a more curved line at a larger angle from 0°-40°. • See the next few pages for nozzle adjustment solutions Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477...
- Page 12 Setting 1: default setting: 0°-20°, for most of pools. Nozzle angle Running path Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 13 Setting 2: 0°-10°, longer straight run required before turning Nozzle angle Running path Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 14 Setting 3: 0°-40°, when setting 1 does not manage a full coverage of the pool. Nozzle angle Running route Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 15 Setting 4: 20°-20°, for round pools. Nozzle angle Running route Note: These are the recommended settings. Different settings may work better for your pool. Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 16 Open the cleaner by the clips Pull outwards on both sides at the same time to open it. b. Take out the filter tray Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 17 Hold Both sides of the top cover near the clips and pull out + lower the top cover over the chassis until it clips into place. Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477...
-
Page 18: Troubleshooting
The cleaner does not achieve full Special pool shape deflection coverage of the pool Pool water filtration system is Turn off water filtration system running Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au... -
Page 19: Iiv. Warranty
Modifications to any electrical product provided by HY-CLOR products are covered by a twelve-month warranty unless prior written approval has been granted by HY-CLOR and has been carried out by one of its authorized agents. All electrical installations must be carried out by a competent licensed professional.
