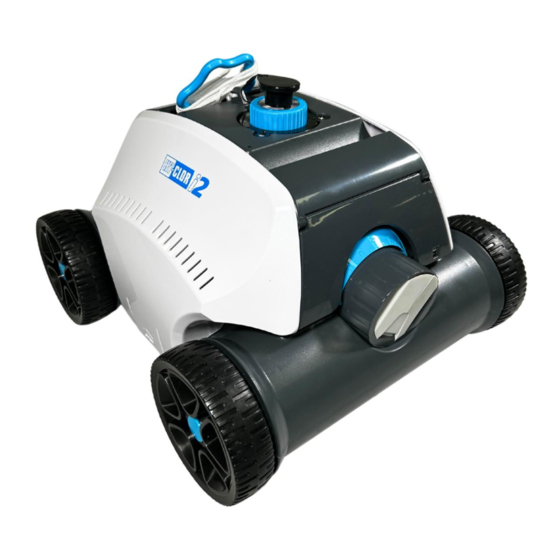

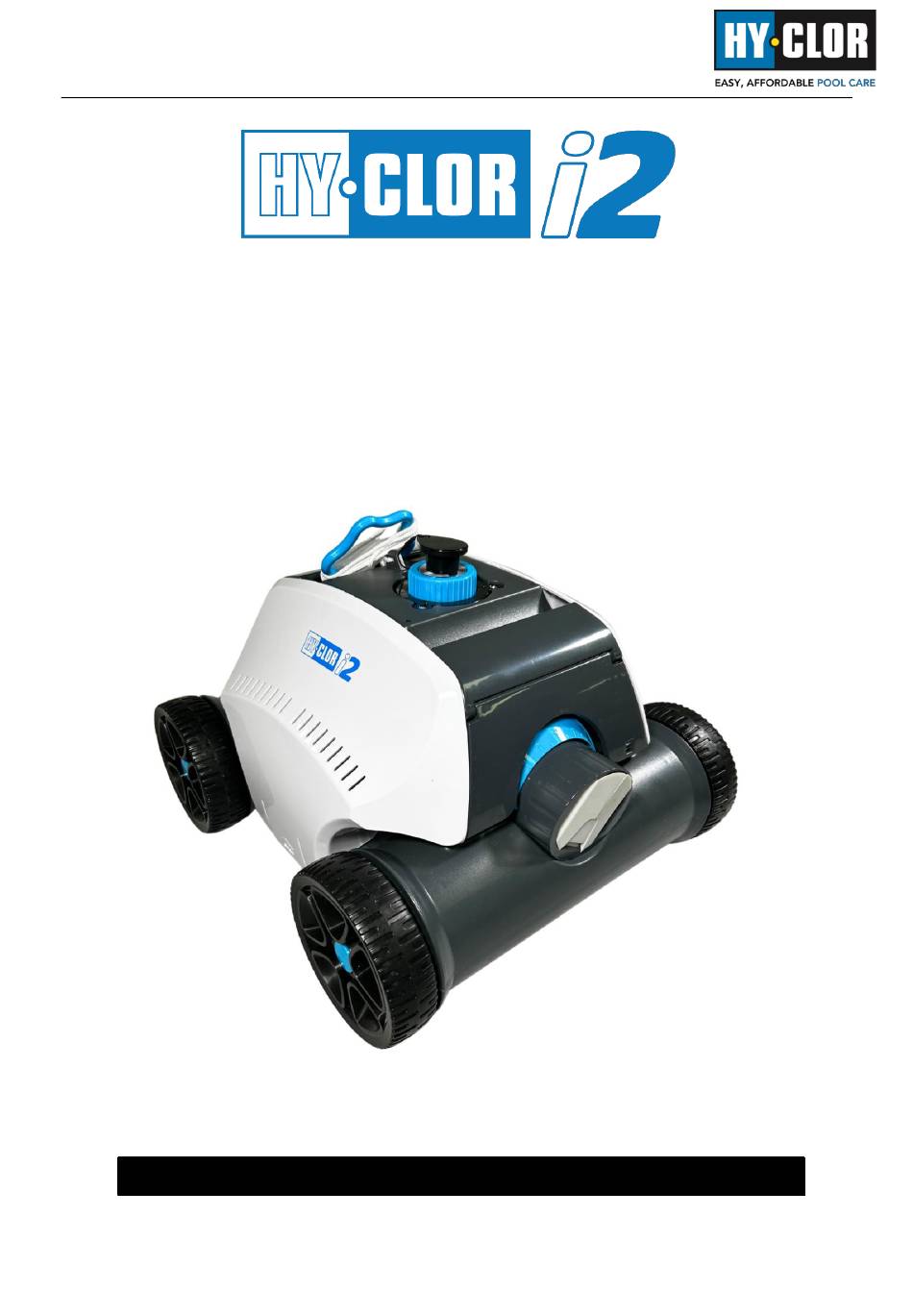

- Page 1 Version 1.3 BATTERY ROBOTIC POOL CLEANER FLOOR ONLY INSTALLATION & OPERATION MANUAL Hy-Clor Australia PTY LIMITED Version 1.3 All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 2 Version 1.3 Hy-Clor Australia PTY LIMITED Version 1.3 All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
-
Page 3: Table Of Contents
Version 1.3 Thank you for purchasing Hy-Clor i2 Robotic Pool Cleaner. If you have any questions or issues, please contact your local dealer for customer service. Table of Contents Important Precautions ......................... 1 Introduction ..........................2 Appearance characteristics & structure ..................2 III. -
Page 5: Important Precautions
2. Use only the accessories recommended or sold by Hy-Clor to ensure compatibility and safety. 3. The i2 Battery Cleaner is specifically designed for swimming pools with a flat floor and a maximum incline of up to 20 degrees. However, 15 degrees is optimal. Please ensure your pool meets these requirements. -
Page 6: Introduction
Version 1.3 I. Introduction • The Hy-Clor ‘i2’ is a rechargeable, battery-driven automatic pool cleaner. • It is designed for pools with a flat floor and a maximum incline of 15-20 degrees. • The device has wheels, not rollers, so it will not clean all the way to the waterline. -
Page 7: Specifications
Version 1.3 III. Specifications Product information: Power Specifications: Name: Hyclor i2 Power: 50W Model: Hj1103 Working Voltage: 12.6V Size: 400 (L) * 360 (W) 270 (H) mm Input Voltage (adapter): 100Vac- 240Vac Weight: 5.8kg Input power of adapter: 47Hz-63Hz Output current of adapter: 1.8A Performance and Capacity: Output voltage of adapter: 12.6V... -
Page 8: Operation Instruction
Install the brush before use to avoid possible dirt leaks. • The Sweeping brush Snaps into the outside of the bottom of the i2 Robot. • Tie the cord of the floating handle to the tether area on top of the robot (the same area that the charging port protector cap is attached to). - Page 9 3. Charge the battery by plugging the charging port into the cleaner. 4. The i2 Robot takes approximately 5-6 hours to fully charge the battery. The indicator light on the charger will change from red to green when it has charged.
- Page 10 The cleaner is working in the pool: Blue light flashes The working cycle has finished (low battery): Red light is steady Faults: Red light flashes Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 11 • The cleaner moves in a more curved line at a larger angle from 0°-40°. • See the next few pages for basic nozzle adjustment solutions. • The i2 is normally best set up on the shallow end and shortest side of the pool. With 0° on one side and 20° on the other.
- Page 12 ➔ it will move in a straight line. Water Flow direction When moving (20) , it will move in a slight right- hand arc. Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 13 ➔ it will move in a straight line. When moving , it will move in a very Water Flow direction slight right- (10) hand arc. Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 14 ➔ it will move in a straight line. When moving , it will Water Flow direction move in a tight (40) right-hand arc. Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 15 Note: These are the recommended settings. Different settings may work better for your pool. Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 16 Pull outwards on both sides at the same time to open it. b. Lift the filter tray off the chassis Clean the filter tray and chassis Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au...
- Page 17 Hold Both sides of the top cover near the clips and gently pull clips outward + lower the top cover over the chassis until it clips into place. Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477...
-
Page 18: Troubleshooting
Start robot in the difficult coverage of the pool to reach area Pool water filtration system is Turn off water filtration system running Hy-Clor Australia PTY LIMITED All Enquires: AU: 1800 625 123 NZ: (09) 973 2477 Email: Help@hyclor.com.au... -
Page 19: Iiv. Warranty
Modifications to any electrical product provided by HY-CLOR products are covered by a twelve-month warranty unless prior written approval has been granted by HY-CLOR and has been carried out by one of its authorized agents. All electrical installations must be carried out by a competent licensed professional.
