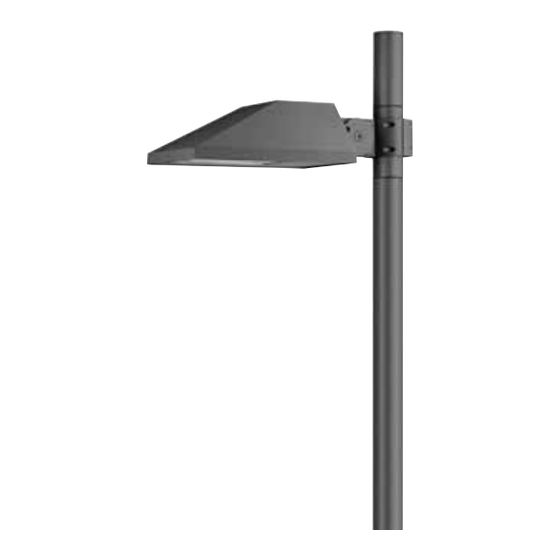

WE-EF PFL240 LED Installation And Maintenance Instructions Manual

Pole mounted luminaire

Download this manual

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Pole Mounted Luminaire

PFL240 LED

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Surge Protection

This product features built-in surge protection circuitry in compliance

with applicable standards.

For comprehensive protection of a luminaire installation against lightning

and electrical surges, it is essential to cover mains supply and data input

lines at the distribution board level, by using respective primary (Type 1)

and secondary (Type 2) surge arrestors in compliance with EN61643-11/

IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and

activated prior to luminaire installation. Also, disconnect luminaires

before operating high-power devices such as, for example, electrical

arc welders.

Need help?

Do you have a question about the PFL240 LED and is the answer not in the manual?

Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Pole Mounted Luminaire PFL240 LED Do not open during installation This product is factory-sealed. Refer to the instructions contained in this document for details. Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards.
Page 2 Pole Mounted Luminaire PFL240 IP66, Class I, ta = 25°C...
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on.
Page 4: Installation
Installation Installation Procedure The product must be installed and maintained 2) Check that rating shown on luminaire label conforms with latest building/construction and/or electrical with mains electrical supply. regulations and relevant legislation. 3) Attach supplied mounting bracket E to the spigot by means of set screws B, and lock in desired position.
Page 6 WE-EF SWITZERLAND WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9237W0823 © WE-EF 2023 subject to change.
