CDVI RCBO Quick Start Manual

1] PRODUCT PRESENTATION

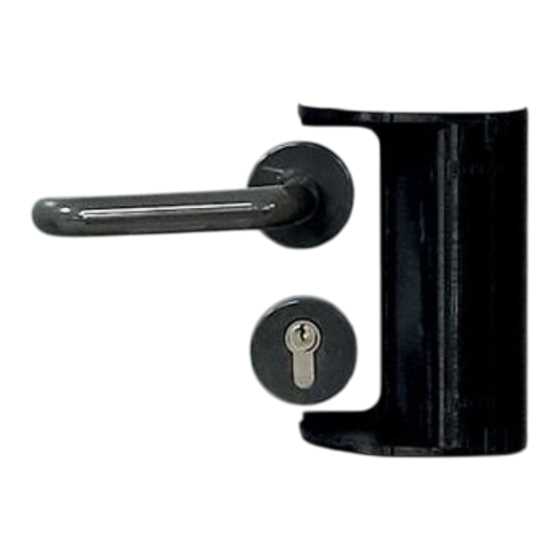

The RCBO is a handle accessory that allows for
a cylinder lock and handle to be maintained on a
door fitted with a magnetic architectural handle.
It's useful when a site requires electronic locking
during the day and mechanical locking at night.
It is manufactured in recyclable UV-resistant
material.
The RCBO is compatible with: BO600RP, BO900RP,
BO600EVO, and BO900EVO.
Installation is simple. Cut the handle profile at
a 90° angle, and click the insert into place. It's
quick and easy. It is also aesthetically pleasing,
reversible and guaranteed for 10 years by CDVI.
DEEE & RoHS
-40°C to +70°C
3] QUICK INSTALLATION
1. Cut your aluminium handle to fit the
RCBO opposite your existing cylinder. (The
recommended length of the cuts is 158 mm).
2. Fit the RCBO onto the lower part of the handle
section.
3. Fit the upper part of the handle onto the
RCBO.
Send us back the 158 mm cut and you'll receive a gift...
(exclusively for the French market).
The RCBO in 3D
RCBO
Cylinder fitting for Magnetic Architectural Handles
QUICK START GUIDE
10
CE Certification
YEAR
WARRANTY
IK10
www.cdvigroup.com
2] MOUNTING
EN
