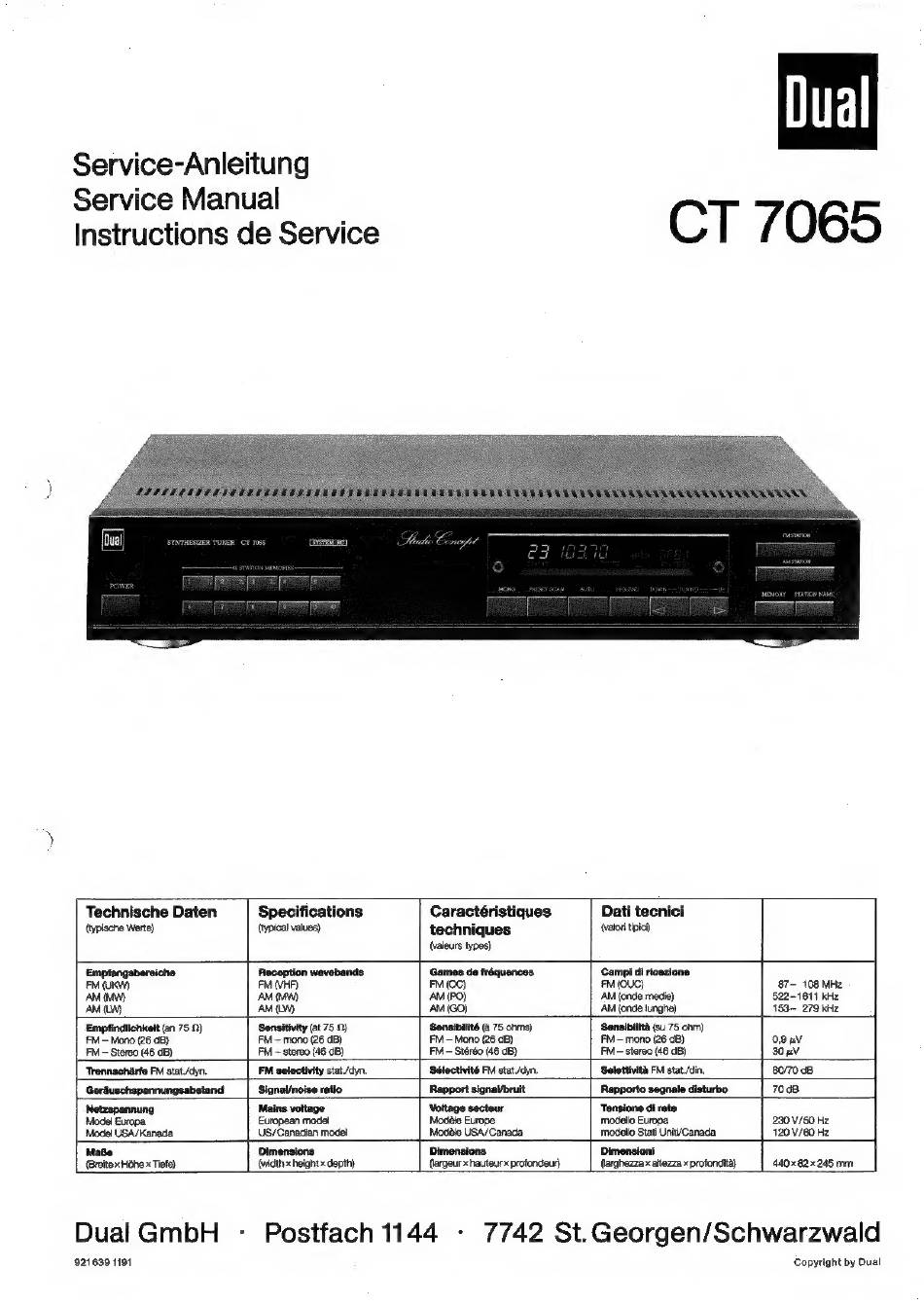

Dual CT 7065 Service Manual

Service-Anleitung
Service Manual
Instructions de Service
CT 7065
Technische Daten Specifications Caractéristiques Dati tecnici
(typische Werte) (typical values) techniques (valor tipic)
(valeurs types)
Empfangsbereiche Reception wavebands Games de fréquences 'Campi di ricezione
FM (UKM) FM (VHF) FM (00) FM (UC) 87— 108 MHz
AM (MW) AM (MW) AM (PO) 'AM (onde medie) 522-1611 kHz
AM (LW) AM (LW) AM (GO) AM (onde lunghe) 153— 279 kHz
lichkeit (an 75 9) 'Sensitivity (at 75 0) 'Sensibilité (a 75 ohms) 'Sensibilita (su 75 ohm)
FM — Mono (26 dB) FM —mono (26 dB) FM — Mono (26 dB) FM —mono (26 dB) 0,9 nV
FM — Stereo (46 dB) FM — stereo (46 dB) FM — Stéréo (46 dB) FM ~ stereo (46 dB) 30 wv
'Trennschérfe FM stat/dyn. FM selectivity stat/dyn. Sélectivité FM stat /dyn. Selettivita FM stat/din. 80/70 dB
Gerduschspannungsabstand 'Signal/noise ratio Rapport signal/bruit Rapporto segnale disturbo 70 dB
Netzspannung Mains voltage Voltage secteur Tensione di rete
Model Europa European model Modéle Europe modello Europa 230 V/50 Hz
Model USA/Kanada US/Canadian mode! Modéle USA/Canada modelo Stati Uniti/Canada_ 120 V/60 Hz
Mase Dimensions Dimensions Dimensioni
(Breite x Hohe x Tiefe)
(width x height x depth)
(argeur xhauteur x profondeur) (arghezza x altezza x profondita)
44082245 mm.
Dual GmbH
921639 1191
- Postfach 1144 - 7742 St.Georgen/Schwarzwald
Copyright by Dual
