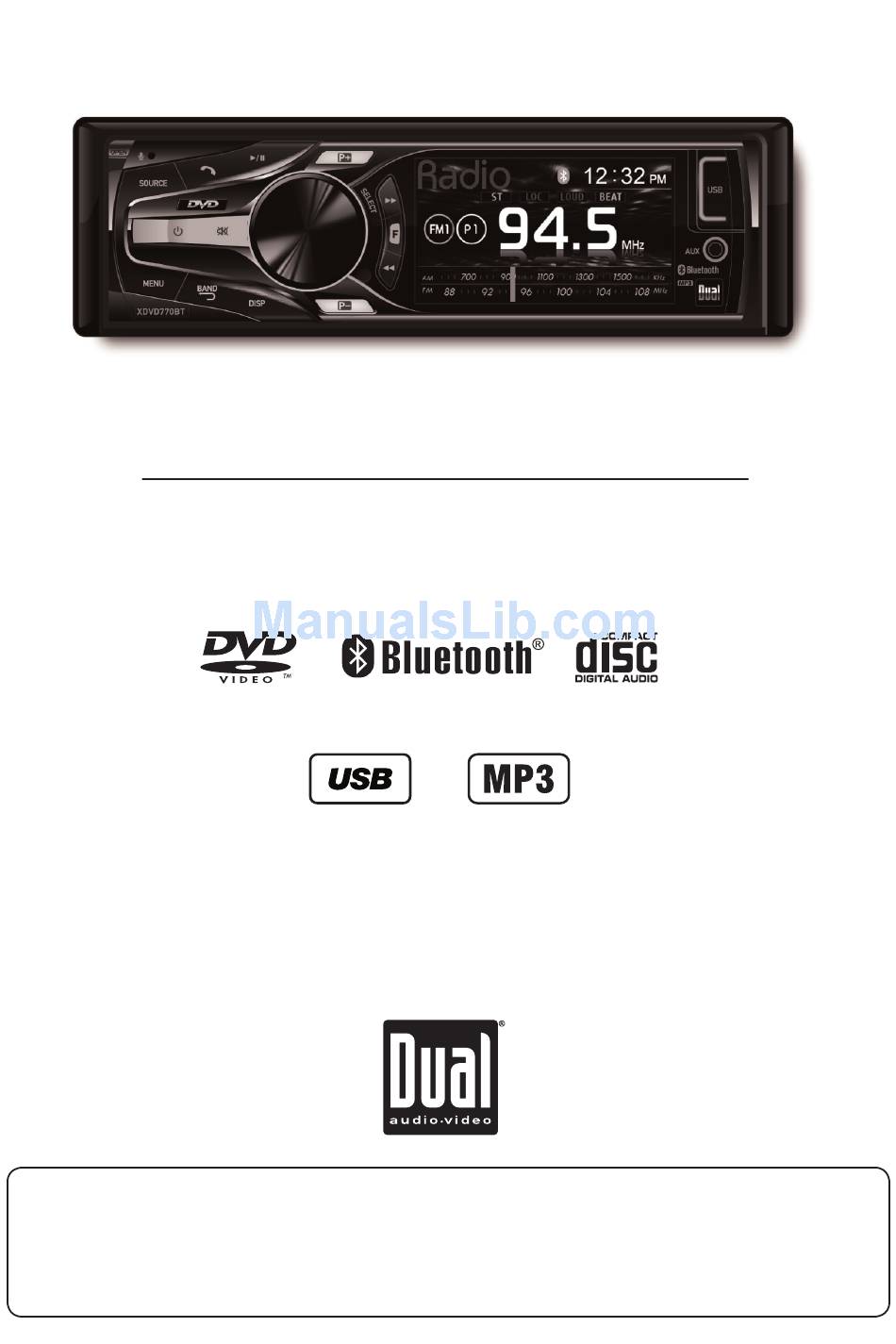

XDVD770BT
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth
®
featuring a
3"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.

Advertisement

Table of Contents
loading

Related Manuals for Dual XDVD770BT

Summary of Contents for Dual XDVD770BT

  • Page 1 XDVD770BT INSTALLATION/OWNER’S MANUAL DVD Multimedia Receiver with Bluetooth ® featuring a 3" Touch Screen Display Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the...
  • Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    XDVD770BT PREPARATION Table of Contents Page Warning Statement ..........
  • Page 4 XDVD770BT PREPARATION WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...

  • Page 5: Safety Information/Precautions

    Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL XDVD770BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

  • Page 6: Preparation/Mounting

    XDVD770BT INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 7: Wiring Diagram

    Con nect to the battery Using an incorrect fuse could circuit or constant 12 volt source. damage the radio. The XDVD770BT uses one Right Front Right Rear 10 amp ATM fuse located Gray/Black (-) Violet/Black (-) in-line.

  • Page 8: Control Locations

    XDVD770BT OPERATION Control Locations Open USB Port Display Microphone Auxiliary Input Mute Bluetooth Talk Function Band / Go Back Play / Pause Tune / Track Down Menu Preset Up Preset Down Power Tune / Track Up Volume Knob Source Go To...

  • Page 9: Remote Preparation

    XDVD770BT OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly.

  • Page 10: General Operation

    XDVD770BT OPERATION General Operation Power On/Off Momentarily press to turn the unit on or off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume.

  • Page 11: Audio Setup Menu

    XDVD770BT OPERATION General Operation Setup Menu Press MENU to toggle through and select one of the following setup menus: Audio, General, Gain, Screen, Disc. 1. Once the desired menu is displayed, rotate the volume knob to scroll through the list of menu features.

  • Page 12: Disc Menu

    XDVD770BT OPERATION General Operation Gain Setup Menu Menu Function Options Rotate the volume knob to adjust the tuner gain. Tuner Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for disc playback. Disc Gain (-6 minimum / +6 maximum) Rotate the volume knob to adjust the gain for the front auxiliary input.

  • Page 13: Am/Fm Tuner Operation

    XDVD770BT OPERATION AM/FM Tuner Operation Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press and hold to advance quickly. Seek Tuning Press TUNE or TUNE for more than two seconds (then release) to automatically seek and tune to the next strong station.

  • Page 14: Cd/Mp3 Operation

    XDVD770BT OPERATION CD/MP3 Operation Press OPEN to fold down the front panel and expose the CD slot. With Insert CD the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD With the front panel open, press EJECT to eject the CD.

  • Page 15: Mp3 Operation

    XDVD770BT OPERATION MP3 Operation Playing MP3 Files To play MP3 files, insert a data disc or USB device containing MP3 files. “Loading" will flash in the display. Depending on the number of files and folders, this may take several seconds.
  • Page 16 XDVD770BT OPERATION MP3 Operation File/Folder Search Begin Searching Press SELECT to enter the file/folder search mode. A list of all the folders from the disc or device will be displayed. Note: Any files located in the root directory will be located in the folder named "ROOT".
  • Page 17 XDVD770BT OPERATION Media Compatibility - CD/DVD File Type Level 1, Level 2  ISO9660 Level 3 Playback  ISO9660 JOLIET File System Extension Filename 32 bytes Playback ROMEO Other Filename Extensions Apple ISO .mp3/.MP3/.Mp3/.mP3  File Extension .rmp/.m4a MPEG 1 ...
  • Page 18 XDVD770BT OPERATION Media Compatibility - USB File Type FAT 12 File System FAT 16/FAT 32  .mp3/.MP3/.Mp3/.mP3  File Extension .rmp/.m4a MPEG 1  MPEG MPEG 2  Format MPEG 2.5  MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5...
  • Page 19 XDVD770BT OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • CD-DA, CD-ROM (ISO), CD-R, CD-RW • DVD Video, DVD+R/RW, DVD-R/RW • USB format type: FAT32/FAT The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) •...

  • Page 20: Dvd Operation

    XDVD770BT OPERATION DVD Operation Inserting a Disc Press OPEN to fold down the front panel and expose the disc slot. With the label facing up, insert a standard-sized DVD disc into the slot, and playback will begin automatically. Ejecting the Disc With the front panel open, press EJECT to eject the disc.

  • Page 21: Bluetooth Operation

    The device name is "Dual Multimedia Receiver". The Bluetooth passcode "0000" Note: The XDVD770BT can be in any mode of operation when pairing is performed. Pairing Additional If a device is currently connected, press and hold...

  • Page 22: Bluetooth Operation

    XDVD770BT OPERATION Bluetooth Operation Recent Calls List Press SELECT from Bluetooth mode to view recent calls dialed, received or missed while connected to the head unit. Turn the volume knob to cycle through the recent phone numbers. Press SELECT or to dial the number.

  • Page 23: Auxiliary Inputs/Rear Camera Operation

    XDVD770BT OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

  • Page 24: Limited One Year Warranty

    4. For more information and for the location of the nearest authorized service center please contact original retail purchaser for products purchased from an authorized Dual dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •...
  • Page 25 Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name...

  • Page 26: Specifications

    XDVD770BT OPERATION Specifications Disc Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >80dB D/A converter: 24 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range:...
  • Page 27 XDVD770BT OPERATION Notes...
  • Page 28 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2017 Dual Electronics Corp. All rights reserved. NSA0117-V01 Printed in China...
