Allied Telesis IE220 Series Quick Installation Manual

Quick Installation Guide
IE220 Series
Industrial Ethernet Layer 2+ Switches
Installation and User's Guides
This document contains a short version of the installation instructions for the
IE220-6GHX and IE220-10GHX Industrial Ethernet Layer 2+ switches. For complete
installation instructions and safety statements, refer to the IE220 Series Installation Guide
on the Allied Telesis web site at alliedtelesis.com/library/search.
Safety and Electromagnetic Emissions Certificates
For Safety and Electromagnetic Emissions certificates, see the IE220 Series Installation
Guide at alliedtelesis.com/library/search.
Informationen zu Sicherheitszertifikaten und Zertifikaten für elektromagnetische
Emissionen finden Sie im IE220 Series Installation Guide.
Para obtener los certificados de seguridad y emisiones electromagnéticas, consulte la
IE220 Series Installation Guide.
Pour les certificats relatifs à la sécurité et aux émissions électromagnétiques, consultez le
IE220 Series Installation Guide.
Per i certificati di sicurezza ed emissioni elettromagnetiche, consultare la IE220 Series
Installation Guide.
För säkerhets- och elektromagnetiska emissionscertifikat, se IE220 Series Installation
Guide.
U.S. Federal Communications Commission
This device complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device must not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
VCCI Statements
この装置は、クラスA情報処理装置です。この装置を家庭環境で使用すると電波妨害を
引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要求される
ことがあります。VCCI-A
Industrial Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Grounding and Bonding Requirements
Electrical systems and communication cabling system that are required to be grounded
must be connected to earth. Grounding and bonding provide reliable means to safely
conduct voltages generated by lightning, line surges, or unintentional contact with high
voltages lines or equipment to ground.
The users of the plant or those responsible for the installation shall institute the
necessary measures (e.g., shielding, bonding, and grounding protection) to assure all
components are on the ground fault path. Inappropriate grounding and bonding shall
render all warranties null and void.
Refer to the IE220 Series Installation Guide for recommended practices.
*613-003098 Rev A*
613-003098 Rev. A
Physical Description
For physical descriptions of the switches, refer to the IE220 Series Installation Guide.

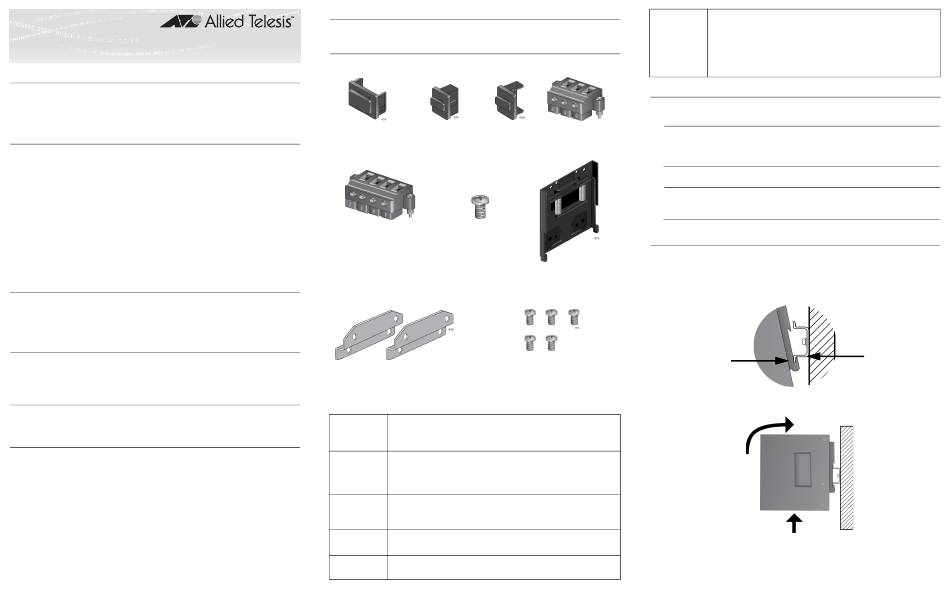

Package Contents
Here are the pre-installed components on the switch:
Dust cover on the Dust covers on the
USB port copper and Console
ports
One 4-pin connector on One M4x8
the DC power PWR 1 Phillips -head
and PWR 2 connectors grounding screw
Here are the items in the accessory kit.
Two wall brackets
Retain the original shipping material in case you need to return the unit to Allied Telesis.
Here are tools and materials required for the installation:
Ground wire – One solid ground wire (recommended #16 AWG solid wire)
– One heat-shrink tube
– Ring-terminal lug
Power wires – Two or four stranded power wires (recommended 18 AWG
stranded wire. Do not use wire heavier than 16 AWG).
– One or two 2-wire connectors to connect the power wires to the
AC/DC rectifiers or UPS units.
Alarm Out – External alert device for the Alarm Out (ALM OUT) connector
connector
– 24 to 18 AWG stranded wire properly rated for the installation
site, maximum length of two meters
DIN rail – 35 x 7.5mm DIN rail
installation
– Two DIN rail end clamps (optional)
Concrete wall – Four wall anchors and screws
installation
1
Tools
Common Installation Options
This quick installation guide explains how to install the device on a DIN rail or concrete
wall.
Dust covers One 3-pin connector on
Note
on the SFP+ the Alarm Out (ALM
The switch's maximum operating temperature depends on its orientation on the wall
ports OUT) connector
and the type of enclosure. Allied Telesis recommends installing the device vertically
for best possible airflow and cooling. See the following figures.
For instructions on outdoor installations, refer to the IE220 Series Installation Guide.
Note
For outdoor environments, the switch must be installed in a UL-listed Type 3X or 4X
enclosure to meet safety requirements.
Installing the Switch on DIN Rail
To install the switch on a DIN rail, perform the following procedure:
1. Hold the switch vertically with both hands, with the back panel next to the DIN rail.
DIN rail bracket on
2. Hook the bottom flange on the DIN rail into the bottom slot on the DIN rail bracket on
back panel
the switch.
Bottom slot on DIN
Five M4x8 Phillips-head screws
rail bracket
(one spare screw)
3. Press upwards on the bottom panel of the switch to compress the springs on the DIN
rail bracket, and pivot the switch until vertical.
2
– #1 flat-head screwdriver
– Phillips-head screwdriver
– Wire insulator stripper
– Wire crimper tool
– Heating device for the heat-shrink tube
– Drill with 1/4" carbide drill bit (concrete wall installation)
Bottom flange on DIN
rail
3
