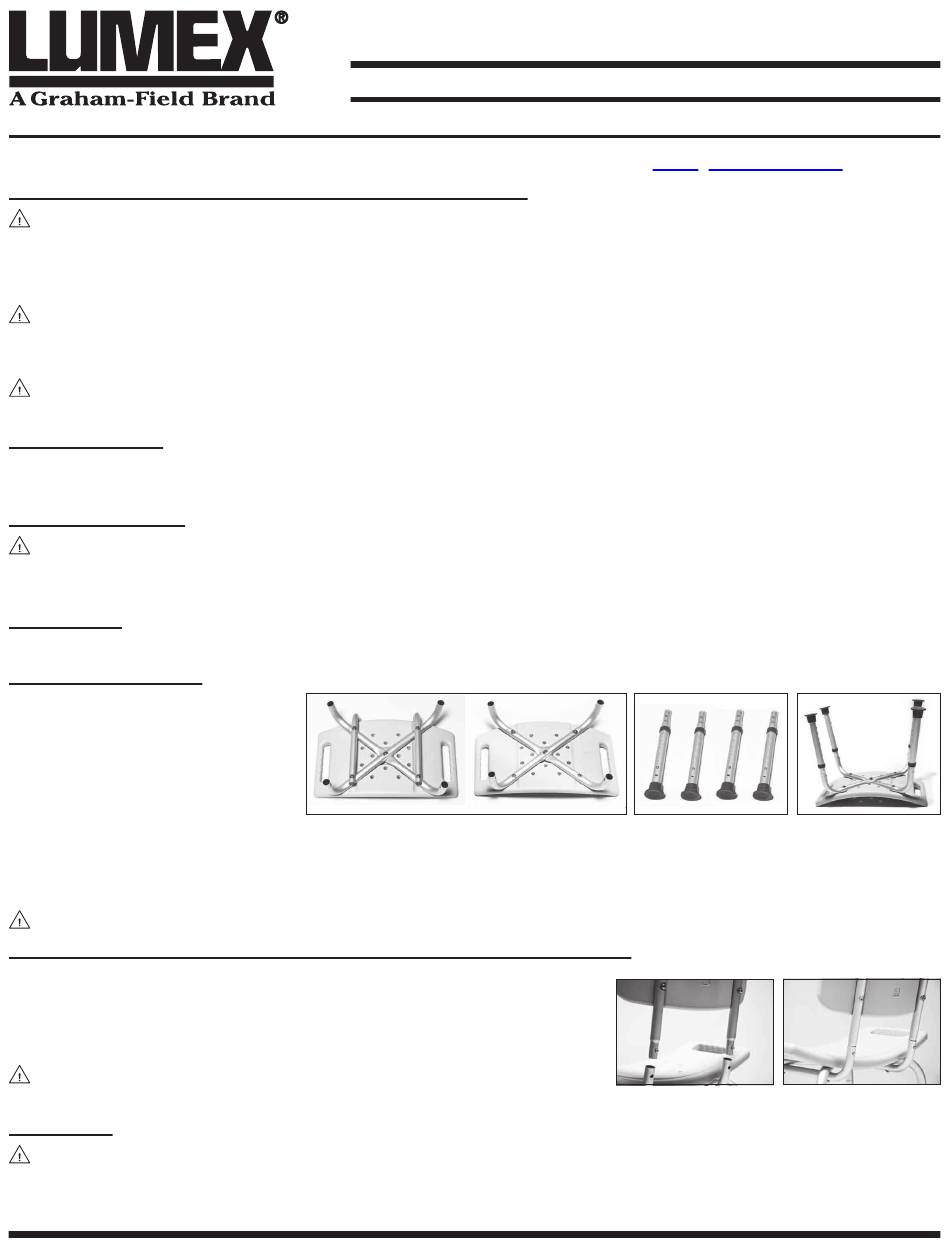

Graham Field Lumex 7921R Assembly & Operation Instructions

Info: The most current version of these instructions can be found online at
imPORtaNt SaFety iNFORmatiON: PleaSe ReaD
WaRNiNg: important! Read and understand these instructions before assembling or using the
Bath Seat. if you do not understand any part of these warnings, cautions or instructions, contact
a healthcare professional for direction in the use of this product. if the Bath Seat is not properly
assembled and adjusted, personal injury and damage to the Bath Seat could result.
WaRNiNg: if components are damaged or missing, contact your graham-Field distributor
immediately. DO NOt use substitute parts. Use only lumex replacement parts. Non-lumex
replacement parts could cause personal injury and damage to the Bath Seat.
WaRNiNg: gF health Products, inc. assumes no responsibility for any damage or injury caused by
improper assembly or use of this product.
iNteNDeD USe
The Bath Seat is intended for use by individuals who require seating support while bathing or showering. It is
designed to be placed fully inside the bathtub or shower.
Contraindications
WaRNiNg: this product has a maximum weight capacity of 350 lb, eVeNly DiStRiBUteD.
WaRNiNg: DO NOt use this product as a transfer bench or climbing device.
WaRNiNg: Use this product only with tub floors wider than 18
aSSemBly
Remove the Bath Seat from the box and place it on a flat, dry surface.
attaching the legs:
1. Locate the seat frame (see
figure 1); place it upside
down on a flat, dry surface.
2. Locate the legs (see figure 2).
3. Attach the legs to the seat
frame (see figure 3). Depress
the locking button at the top
of each leg and slide it into the seat frame until the button protrudes from the hole.
4. Repeat step 3 for each leg.
WaRNiNg: ensure legs are securely installed and all hardware is tight before proceeding.
attaching the Backrest: (model 7921R and 7921KD Series Only)
1. Locate the backrest (see figure 4).
2. Attach the backrest to the seat frame (see figure 5). Depress the
locking buttons and slide the backrest onto the seat frame until
the buttons protrude from the holes.
WaRNiNg: ensure backrest is securely installed and all
hardware is tight before proceeding.
all models
WaRNiNg: ensure that the Bath Seat is assembled as described. if the Bath Seat is not properly
assembled and installed, personal injury and damage to the Bath Seat could result.
7921KD-1-INS-LAB-RevB12
7921R / 7921KD / 7931R / 7931KD: SeRieS Bath Seat
aSSemBly & OPeRatiON iNStRUCtiONS
PleaSe SaVe theSe iNStRUCtiONS FOR FUtURe USe
PaRa iNStRUCCiONeS eN eSPañOl, VéaSe la PágiNa 3
7921R / 7921KD-1 7931R / 7931KD-1
fig. 1
www.grahamfield.com
/ ".
3
4
fig. 2
fig. 4 fig. 5
fig. 3
1
