Info: The most current version of these instructions can be found online at
Tools required: Phillips or blade screwdriver
WARNING: Important! Read and understand these instructions
before installing or using the Toilet Seat Riser. If you do not under-
stand any part of these warnings, cautions or instructions, contact
a healthcare professional for direction in the use of this product. If
the toilet seat riser is not properly assembled and installed, person-
al injury and damage to the toilet seat riser could result.
WARNING: If components are damaged or missing, contact your
dealer immediately. DO NOT use substitute parts. Use only Lumex
replacement parts. Non-Lumex replacement parts could cause per-
sonal injury and damage to the toilet seat riser.
WARNING: This product has a weight limit of 300 lb.
WARNING: GF Health Products, Inc. assumes no responsibility for
any damage or injury caused by improper assembly, installation or
use of this product.
INSTALLATION
1. Remove toilet seat riser, hardware, and armrests from carton and protec-
tive packaging.
2. Install the armrests with the following steps:
a. Identify the right and left armrests by the R (Right) and L (Left)
stamped into armrest ends.
b. Note that each toilet seat riser armrest socket is also stamped with an R
or L, as shown at right. Insert each armrest marked with R or L into the
socket with the corresponding letter.
c. Push each armrest into its sockets until it clicks into place.
d. Ensure locking buttons protrude fully from holes. Pull on armrests
slightly to test proper installation. If loose, repeat step c.
3. At the toilet, lift the cover plates at top rear toilet bowl rim, exposing the
bolts holding the seat and lid to the toilet bowl.
4. Use a Phillips or blade screwdriver, whichever is appropriate, to unscrew
toilet seat bolts by turning counterclockwise.
5. Remove the toilet seat and lid from the toilet bowl and set them aside.
6. Place the toilet seat riser over the toilet bowl rim so that the toilet seat
riser mounting holes align with the toilet rim holes.
7. Place the toilet seat and lid on top of the toilet seat riser so that the seat/
lid holes align with the riser and rim holes.
8. Install a washer on one of the long bolts included in the box and insert it
through the top of the toilet seat lid, toilet seat riser, and toilet bowl rim.
9. Place a washer and wing nut on the end of the long bolt that protrudes
through the bottom of the toilet bowl.
6486R-2-INS-LAB-RevA11

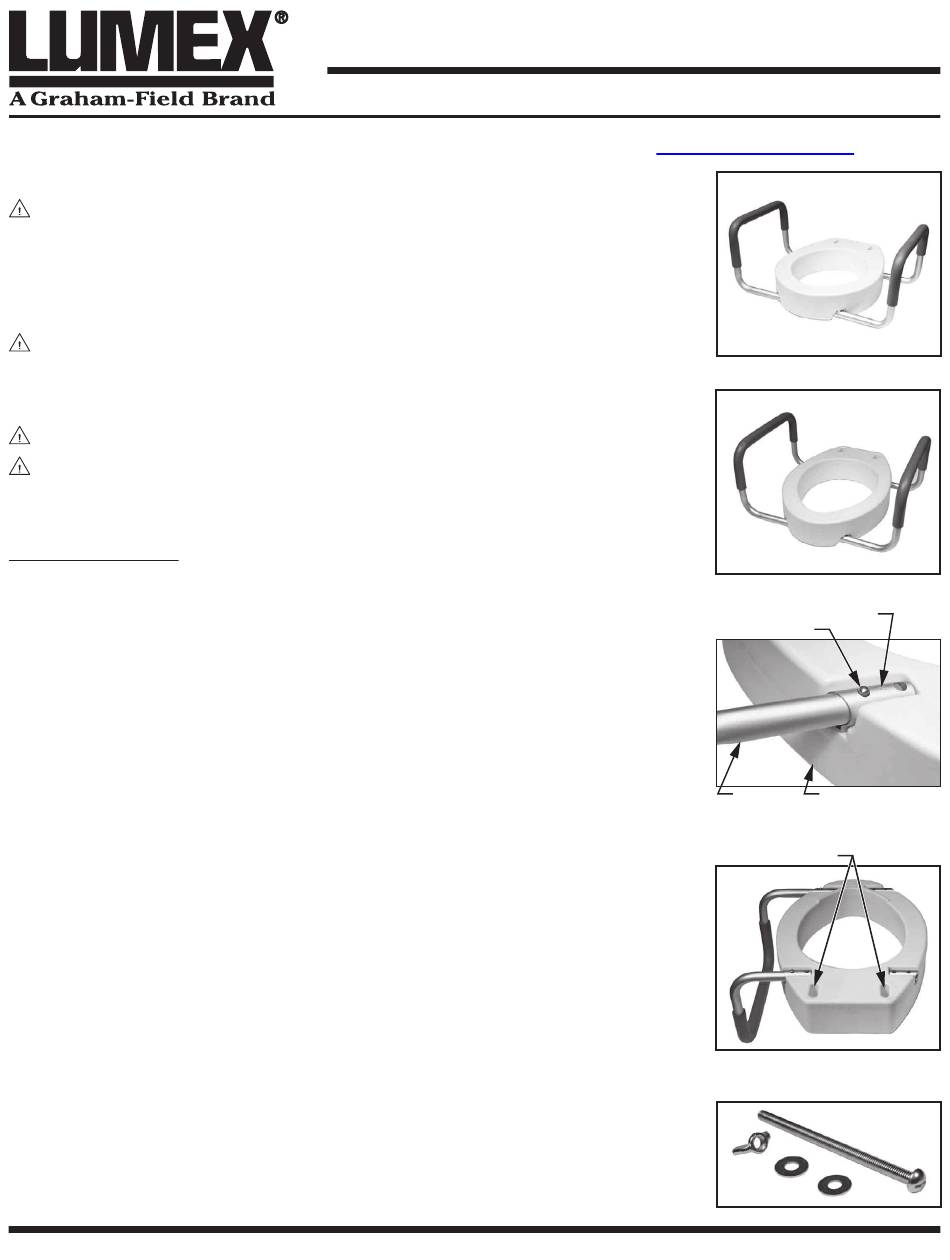

6482R-2/6482ER-2: DELUXE TOILET SEAT RISER WITH ARMRESTS
ASSEMBLY & OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.grahamfield.com
6482R-2 assembled
6482ER-2 assembled
"R" on armrest socket
locking button
armrest
toilet seat riser
right armrest shown installed
(shown upside down)
mounting holes
6482ER-2, one arm attached
(shown upside down)
wing
nut
washers
hardware
bolt
