Info: The most current version of these instructions can be found online at
IMPORTANT SAFETY INFORMATION: PLEASE READ
WARNING: Important! Read and understand these instructions before assembling
or using the Bath Seat. If you do not understand any part of these warnings, cau-
tions or instructions, contact a healthcare professional for direction in the use of
this product. If the Bath Seat is not properly assembled and adjusted, personal
injury and damage to the Bath Seat could result.
WARNING: If components are damaged or missing, contact your dealer immediate-
ly. DO NOT use substitute parts. Use only Lumex
replacement parts could cause personal injury and damage to the Bath Seat.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or in-
jury caused by improper assembly or use of this product.
INTENDED USE

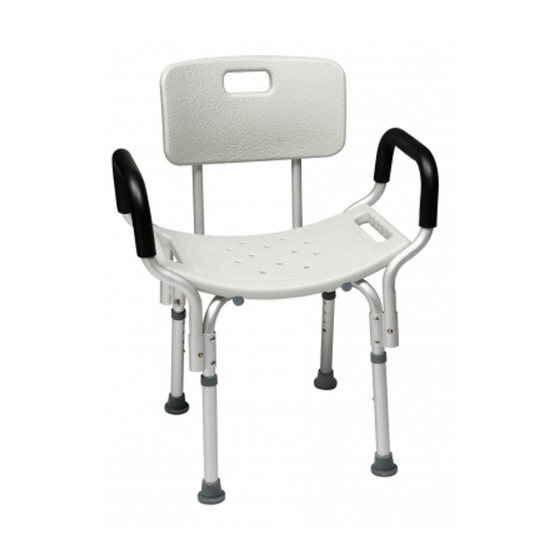

The 7921RA / 7931RA Bath Seat is intended for use by individuals who require seating support
while bathing or showering. It is designed to be placed fully inside the bathtub or shower.
Contraindications
WARNING: This product has a weight limit of 350 lb.
WARNING: DO NOT use this product as a transfer bench or climbing device.
WARNING: Use this product only with tub floors wider than 18
ASSEMBLY
s NOTICE: Do not overtighten screw knobs during Bath Seat assembly.
1. Remove the Bath Seat from the box and place it on a flat, dry surface.
fig. 1
2. Locate the seat legs (see figure 1).
3. Locate the shortest screw knob and a curved washer (see figure 2).
4. Lay legs in "X" pattern over seat bottom (see figures 3 and 4).
WARNING: Legs must be positioned exactly as shown in figure 3 for a safe and
proper fit.
7921RA-INS-LAB-RevA10

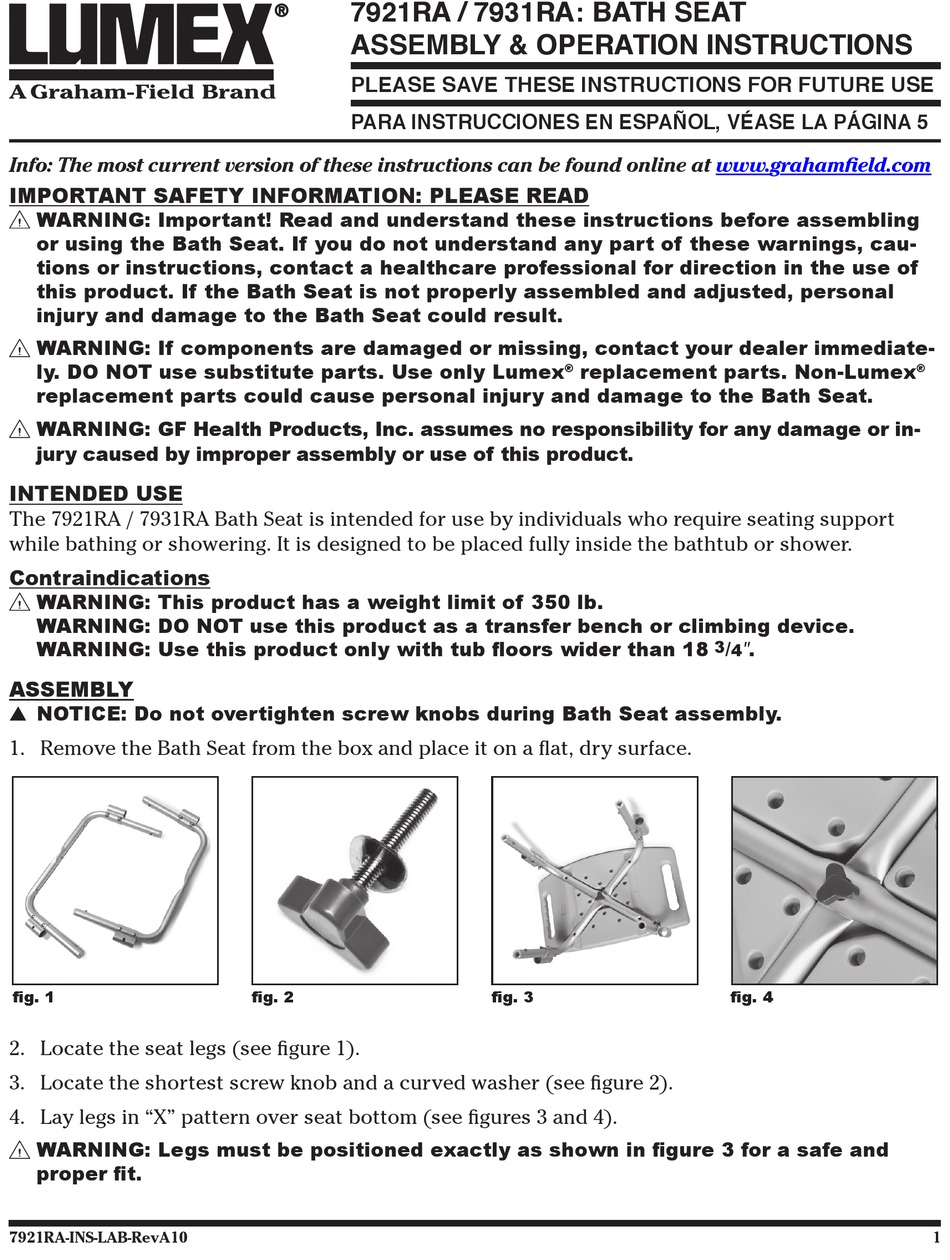

7921RA / 7931RA: BATH SEAT
ASSEMBLY & OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
PARA INSTRUCCIONES EN ESPAÑOL, VÉASE LA PÁGINA 5
fig. 2
replacement parts. Non-Lumex
®
fig. 3
www.grahamfield.com
".
3
/
4
fig. 4
®
1
