Chapter 5 Using and maintaining the interactive whiteboard

Power buttons and indicators

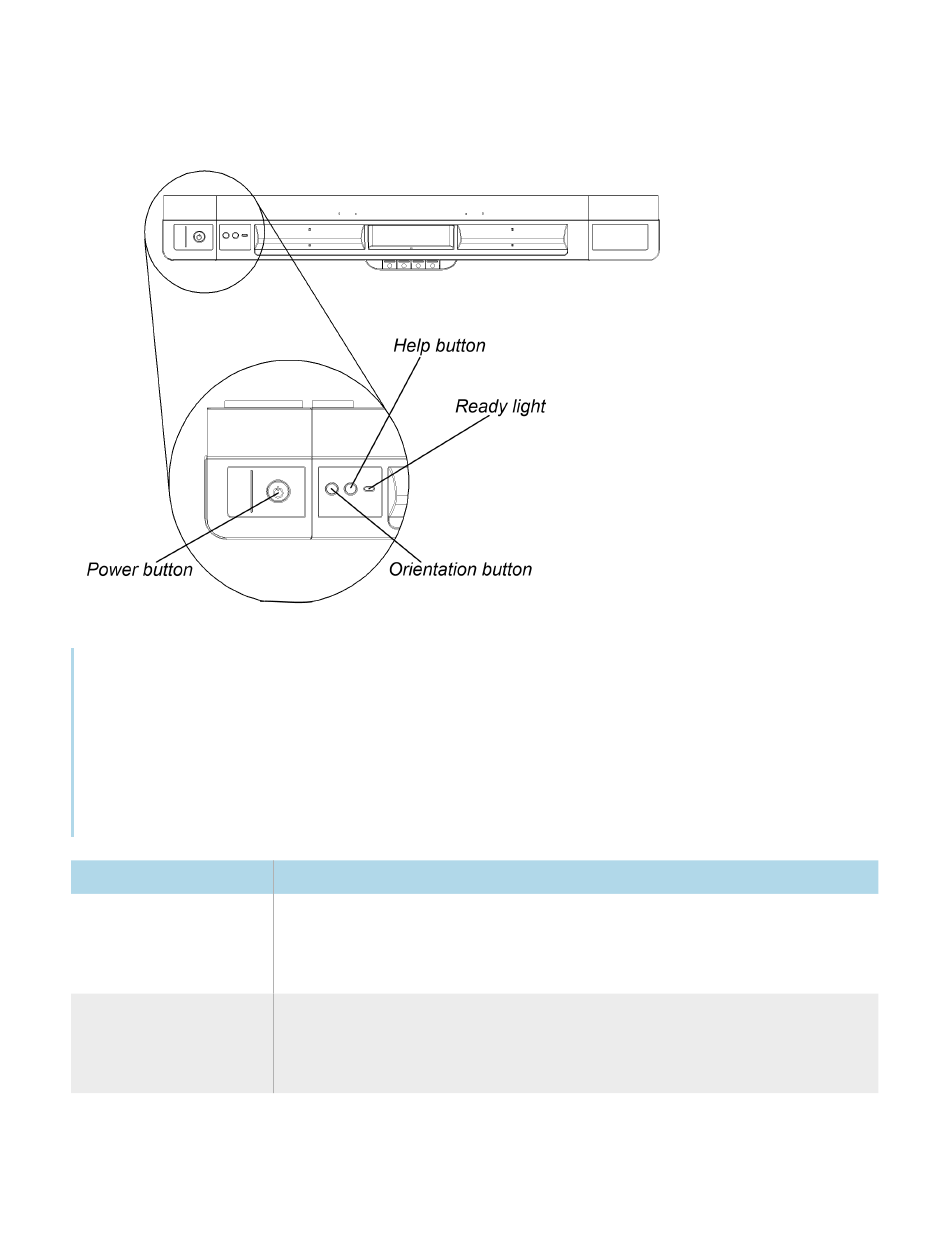

The left side of the pen tray has Power, Orientation and Help buttons, as well as the Ready light.

Note

The above diagram shows the basic power module:

For information on the additional features of the Extended Control Panel (ECP), see Using the

Extended Control Panel (ECP) on the next page.

For information on the additional features of the Application Control Panel (ACP), see Using the

Application Control Module (ACM) on page 30

Component

Power button

Orientation button

docs.smarttech.com/kb/144817

Description

Press this button to put your interactive whiteboard into Standby mode when

it isn't in use, or to restore full power to it when you need to use it. Ensure that

the interactive whiteboard is connected to your computer and to a wall

power outlet.

Press this button to start the orientation process. Orienting your interactive

whiteboard ensures that the mouse pointer or digital ink appears directly

below your finger or pen tray tool when you touch the interactive surface.

Refer to page 23 for information on performing an orientation procedure.
