Chapter 2 Installing and securing the SMART Board interactive whiteboard

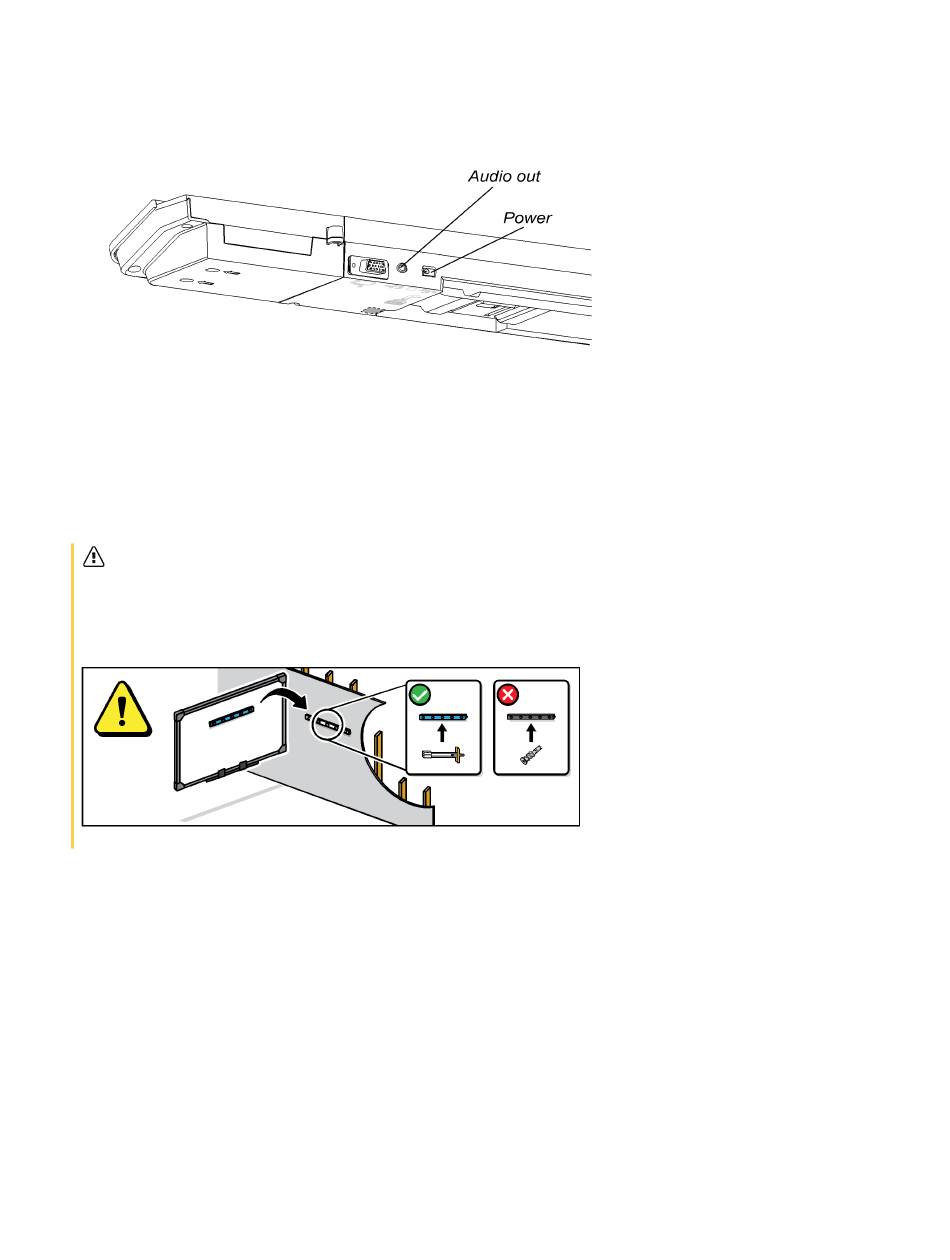

Ensure that the power supply cable is connected to the correct receptacle in the pen tray, as shown
l
below.
Replacing an existing interactive whiteboard on drywall
If you're replacing a SMART Board 500 or 600 series interactive whiteboard with the heavier
SMART Board 800 series on drywall, you must remove the wall-mount bracket and mounting hardware,
and then install all the mounting hardware and brackets supplied with the SMART Board 800 series
interactive whiteboard instead.
Caution
To help ensure that the interactive whiteboard is mounted correctly, make sure the color of the wall-
mount hanger on the back of the interactive whiteboard and the color of the wall-mount bracket are
the same.
Securing the pen tray to the interactive whiteboard
Because the pen tray is detachable, you might want to safeguard it—and the interactive whiteboard—by
anchoring it with a security cable (not included). Underneath the pen tray, you'll find a lock slot that
accommodates a security cable, such as a Kensington
docs.smarttech.com/kb/144817
®
lock.
