Dericam M501W V2 User Manual

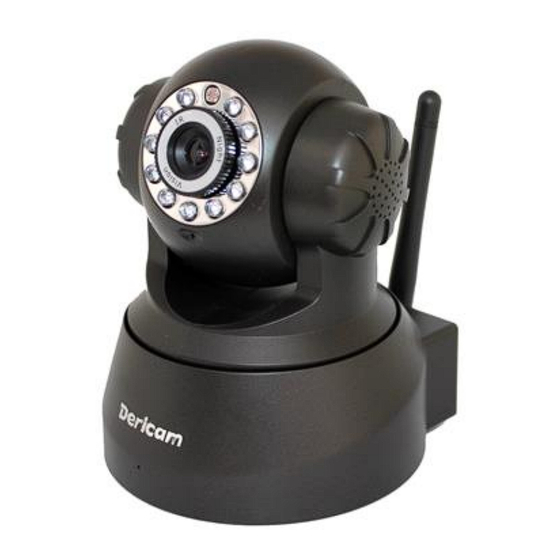

300k pixels p2p pan tilt ip indoor camera
Hide thumbs Also See for M501W V2:

Advertisement

Quick Links

Download this manual
Shenzhen Dericam Technology Co.,LTD
1 Package Contents
 Mini indoor 300K IP Camera
 Power Adapter 5V-2A
 Network Cable
 WiFi Antenna
 CD-ROM with Setup Software and User Guide
 Install Bracket
www.dericam.com
User Manual
Model: M501W V2
300K Pixels P2P Pan Tilt IP Indoor Camera
Copyright @ Shenzhen Dericam Technology Co., Limited
x 1
x 1
x 1
x 1
x 1
x 1
1
Quick Installation Guide
tech@dericam.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the M501W V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dericam M501W V2

Summary of Contents for Dericam M501W V2

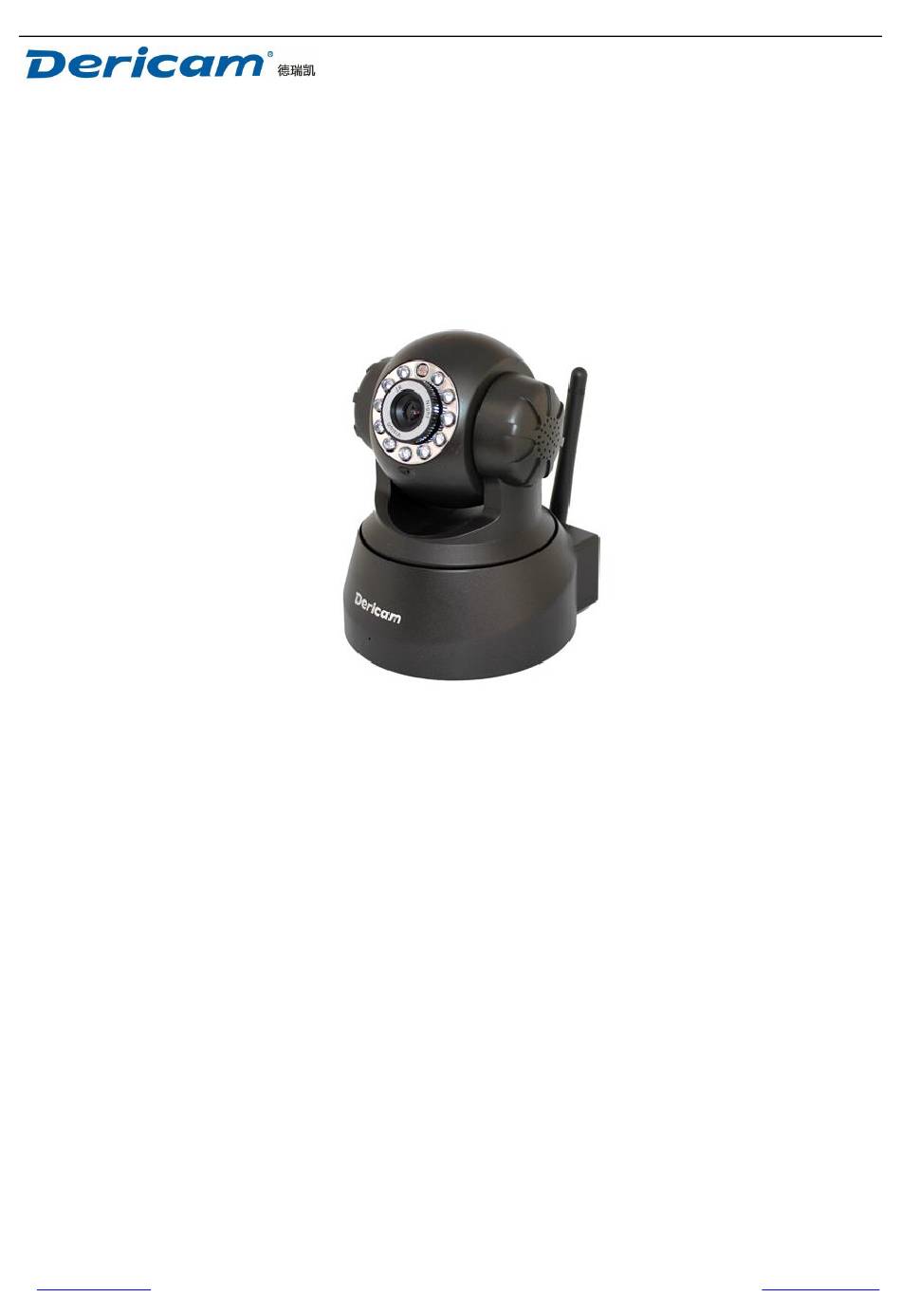

  • Page 1 300K Pixels P2P Pan Tilt IP Indoor Camera 1 Package Contents  Mini indoor 300K IP Camera  Power Adapter 5V-2A  Network Cable  WiFi Antenna  CD-ROM with Setup Software and User Guide  Install Bracket www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...

  • Page 2: Start Installation

    Open the package, and take out the camera together with the soft inner package out of the box carefully and put it on a table steadily. Fig.1.1 Open the box Fig.1.2 Put dome up on the inner package www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
  • Page 3 Step 1, Double click the Icon of IP Camera Tool on the desktop After hardware & software installation are finished, just double click”IP address” on the Search tool, and it will pop up a window showed as Fig.3.1. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
  • Page 4 Click the language bar, to select the language you need. Step 3, Login the camera with default user name &password Fig3.3 Enter user name: admin, no password, and click Submit Note www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
  • Page 5 The camera will restart after the setup is done, Please unplug the network cable once the camera gets restarted, let the camera make wireless connection by itself. Do not shut down power during restart. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...

  • Page 6: Remote Access Settings

    IP address via DHCP server of the router. Note If you failed to make wireless connection, please refer to Dericam FAQ List. 5. Remote Access Settings We have been able to access the camera within the LAN network, but how to access the camera via WAN or via internet? We have to do Remote Access Settings before we want to access the camera outside the LAN network.
  • Page 7 WAN IP address of your router showed as below. See examples as Fig5.3, it shows the WAN IP of the router is 183.37.19.183 Fig5.3 Get to you the WAN IP address of the router www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
  • Page 8 ‘get a free domain service’, and click Sign up free. Create a hostname, a Login on www.dyndns.com user name password which are used to DDNS Service Settings within the camera. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
  • Page 9 DynDns.org(dyndns) as a server showed as Fig5.7 Thirdly, fill dericam as DDNS user, fill password dericam2010 as DDNS password, fill dericam.dyndns.org as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS settings effective.
  • Page 10 Take Linksys brand router as an example, Login the router, and goes to Applications & Gaming->Single Port Forwarding. Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed as below. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...

  • Page 11: Other Settings

    ④Step 4, Use domain name to access the camera via internet After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname dericam.dyndns.org for example, the accessing link of the camera via internet would be http://dericam.dyndns.org:88 How to test if the accessing link is working 1) Just enter http:// Domain name + HTTP Port on the IE bar, to see if the camera is accessible.
