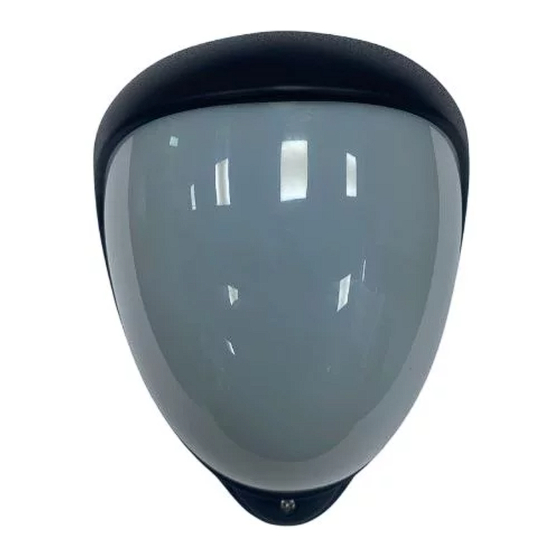

GJD GJD1230 Installation Manual

D-TECT LX 30
METRE LoRa PIR
DETECTOR
GJD1230 LoRa D-TECT LX 868 MHz
Installation Guide
PACKAGE CONTENTS
• 1 x LoRa 30 Metre PIR
• 1 x Drilling template for fixing holes
• 3 x 31.75mm wall plugs
• 3 x 31.75mm screws
• 1 x Tamper cup
• 2 x Tamper Feet
• 1 x Installation guide
Transfer Unique ID Code from the Detector
to the Gateway
Set the LoRa LX Gateway to 'Device Learn' (see
®
LoRa ® LX Gateway manual) then press and release
the detector's program button.
Fixing the Detector to the Wall
Protect against water during installation.
Using the template provided drill the wall to accept
the two fixing screws and the tamper cup if used.
Adjusting Range and Pulse Count Settings
Range and pulse count settings are adjusted using
the web interface on the LoRa
Align and Walk Test
Align the detector to cover the required detection
area using the pan and tilt adjustment.
Walk test is enabled for the first 5 minutes after the
batteries are inserted.
Allow 2 – 3 minutes for the detector to settle.
During walk test the LED is enabled and the sleep
timer is fixed at 8 seconds.
Always walk test with the cover fitted.
Note: The PIR sensor is more sensitive to
movement across the beams, and less sensitive
to movement directly towards or away from the
beams.
Gateway.
®
Batteries
Only use CR123 3 V Lithium batteries.
Observe correct polarity when fitting.
Battery safety information
• Do not put in a fire
• Do not charge
• Do not heat
• Do not short circuit
• Do not disassemble
• Only fit batteries of the same type and voltage
Specifications
Detection range
Mounting height
Batteries
Pulse count
Operating temperature
Protection
Dimensions
Weight
Housing
Communication
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, GJD Manufacturing Ltd declare that the radio
equipment type GJD1230 LoRa D-TECT LX 868 MHz is
in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is
available at gjd.co.uk
This equipment operates on 868 MHz frequency band
therefore must only be used in regions where this is
permitted license-free
30m x 70
o
Up to 3m
2 x CR123 3 Volt
1 or 2
-20 C to +55 C
o o
IP65
145 x 120 x 115mm
280g
High impact ABS
LoRa 868MHz
®
Bi-directional protocol
