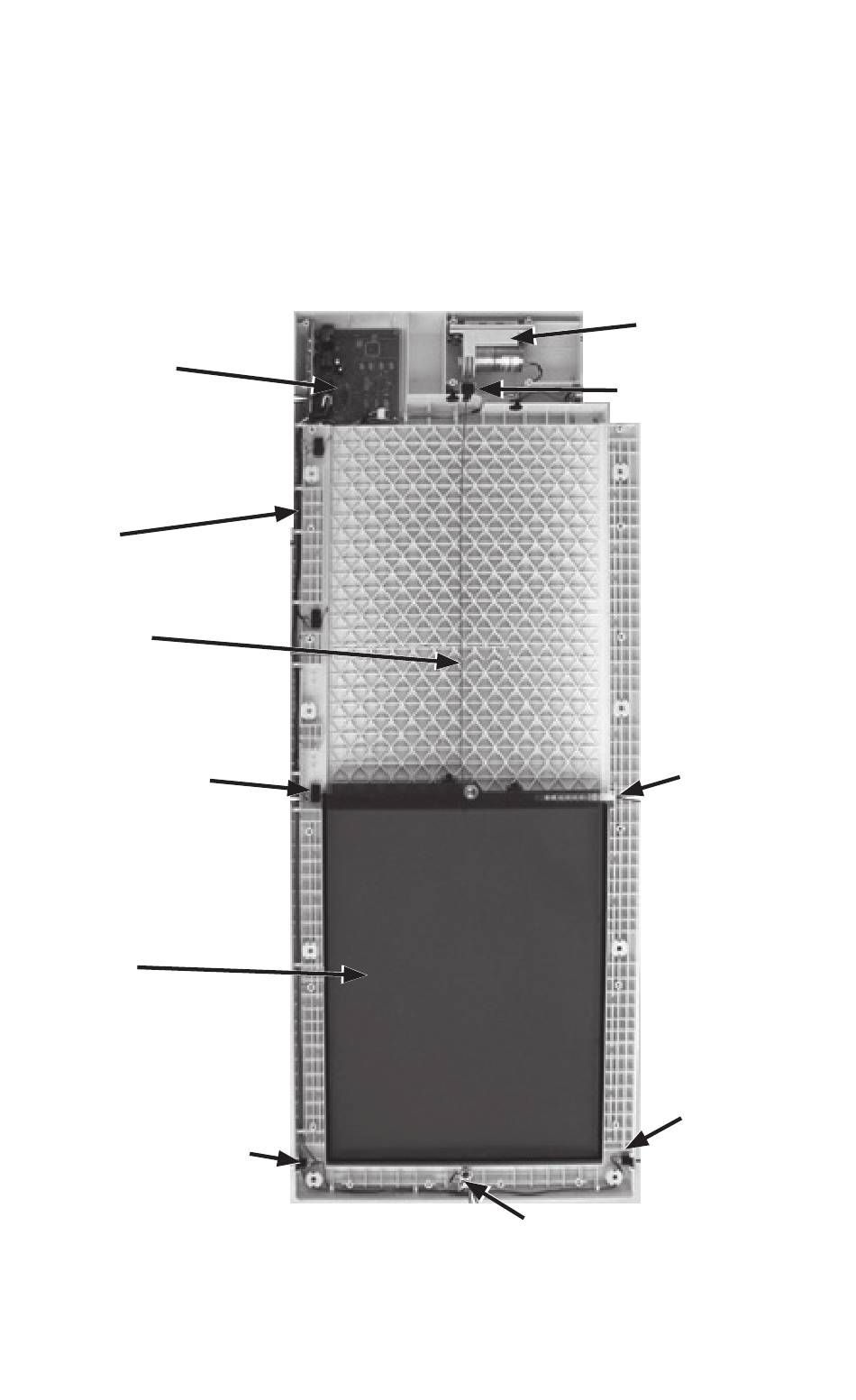

If replacing an internal component, here are the workings of
the door you will see after removing the back of the door
frame.
MAIN CIRCUIT
BOARD
MAIN WIRE
HARNESS
& SENSOR CABLE
LIFT CABLE
POSITION
SWITCHES
(PART OF MAIN
WIRE HARNESS)
SLIDING DOOR
PANEL
RIGHT
POWER PLUG
(PART OF MAIN
WIRE HARNESS)
___________________________________________________________________________________________
High Tech Pet Products, Inc.
MICROPHONES
(PART OF SENSOR CABLE
ASSEMBLY)
www.hightechpet.com
MOTOR ASSEMBLY
CABLE GUIDE
LOCKING PIN
LEFT
POWER PLUG
(PART OF MAIN
WIRE HARNESS)
