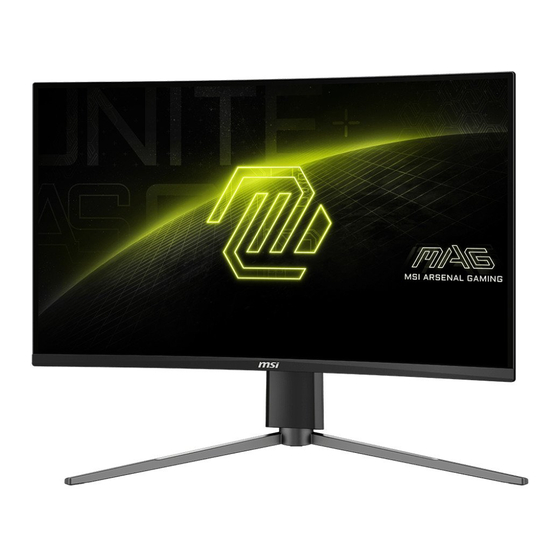

- Page 1 MAG Series LCD Monitor MAG 27C6F (3CE1) MAG 27C6PF (3CE1) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................8 Connecting the Monitor to PC ................11 OSD Setup ........................12 Navi Key ........................ 12 Hot Key ........................12 OSD Menus........................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents MAG 27C6F MAG 27C6PF Monitor Documentation Quick Start Guide... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand MAG 27C6F 1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the cable organizer towards the stand until it locks in place. - Page 5 MAG 27C6PF 1. Leave the monitor in its protective packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4.
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. MAG 27C6F -5° 20°... - Page 7 MAG 27C6PF 130mm 30° 30° -5° 20°...
-
Page 8: Monitor Overview
Monitor Overview MAG 27C6F... - Page 9 MAG 27C6PF...
- Page 10 Power Button & Navi Key Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Jack Cable Organizer Cable Routing Hole HDMI™...
-
Page 11: Connecting The Monitor To Pc
3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5. Turn on the monitor. (Figure C) 6. Power on the computer and the monitor will auto detect the signal source. MAG 27C6F MAG 27C6PF... -
Page 12: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙... -
Page 13: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: Night Vision AI Vision ∙ ∙ MPRT Brightness ∙ ∙ Low Blue Light Contrast ∙ ∙ ∙ HDCR ∙ Color Temperature Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode... - Page 14 1st Level Menu 2nd/3rd Level Menu Description AI Vision ∙ AI Vision enhances image quality by optimizing the contrast of images and background brightness. ∙ Activating AI Vision will affect: Affected Function Function Status » MPRT Set to OFF » HDCR »...
- Page 15 1st Level Menu 2nd/3rd Level Menu Description Alarm Clock Location Left Top ∙ After setting the time, press the OK Button to activate the timer. Right Top ∙ Users have to manually restore their preset Alarm Clock after any AC power loss and Left Bottom reconnection.
-
Page 16: Professional
Professional 1st Level Menu 2nd Level Menu Description Pro Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the OK Button to confirm and apply your mode type. Anti-Blue Movie Office Low Blue Light ∙... -
Page 17: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙ Sharpness improves clarity and details of images. Color Temperature Cool ∙... -
Page 18: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Screen Assistance Alarm Clock Input Source Refresh Rate Info. On Screen Night Vision Settings 1st Level Menu 2nd Level Menu Description... - Page 19 1st Level Menu 2nd Level Menu Description Power Button ∙ When set to OFF, users can press the power button to turn off the monitor. Standby ∙ When set to Standby, users can press the power button to turn off the panel and backlight. Info.
-
Page 20: Specifications
Specifications Monitor MAG 27C6F MAG 27C6PF Size 27 inch 1500R Curvature Panel Type Rapid VA Resolution 1920x1080 (FHD) Aspect Ratio 16:9 SDR Brightness (nits) Contrast Ratio 3000:1 Refresh Rate 180Hz Response Time ∙ 1ms (MPRT) ∙ 0.5 ms (GtG) ∙ HDMI™ Connector x 2 ∙... - Page 21 Monitor MAG 27C6F MAG 27C6PF VESA Mounting ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x D x H) 610.5 x 249.8 x 451.6 mm...
-
Page 22: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. MAG 27C6F, MAG 27C6PF Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz... -
Page 23: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 24: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 25 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
-
Page 26: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 27: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 28 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 29 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
- Page 30 HDMI™ Logos are trademarks or registered trademarks of HDMI™ Licensing Administrator, Inc. Technical Support If a problem arises with your product and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance.
