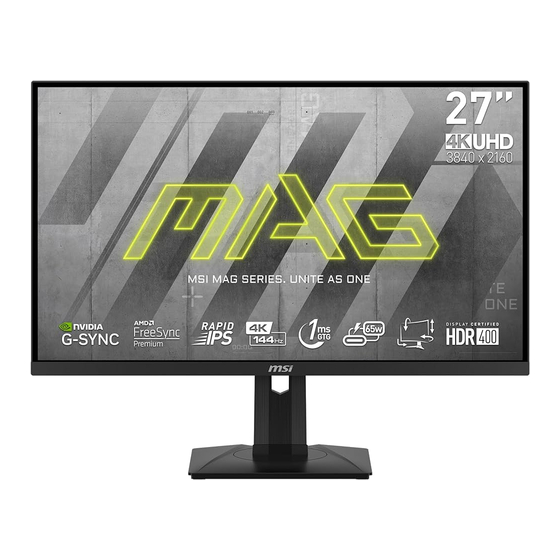

- Page 1 MAG Series LCD Monitor MAG 274UPF (3CC2) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 Navi Key ........................9 Hot Key ........................9 OSD Menus........................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor MAG 274UPF Documentation Quick Start Guide Stand with Screw(s) Stand Base with Screw(s) Accessories... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ ∙ Please slightly tilt the monitor backwards before pivoting it. -5° 20° 130mm 45°... -
Page 6: Monitor Overview
Monitor Overview Getting Started... - Page 7 Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Button & Navi Key Cable Routing Hole Power Jack USB 2.0 Type-B Upstream Port For USB Upstream Cable.
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙... -
Page 10: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: Night Vision Contrast ∙ ∙ MPRT Color Temperature ∙ ∙ Low Blue Light Optix Scope ∙ ∙ HDCR PIP/PBP ∙ ∙ Brightness ∙ Gaming 1st Level Menu 2nd/3rd Level Menu Description... - Page 11 1st Level Menu 2nd/3rd Level Menu Description Response Time Normal ∙ Setting to Fastest will reach the shortest response time and help improve blurred images Fast when playing very fast games. Fastest MPRT ∙ MPRT is available when the refresh rate is over 85Hz.
- Page 12 1st Level Menu 2nd/3rd Level Menu Description Smart Crosshair Icon None ∙ Through AI algorithm, this function enhances the visibility of in-game crosshair. ∙ Users can select the color and position of the crosshair. Color White Auto Position Reset Optix Scope Scope Size Small ∙...
-
Page 13: Professional
Professional 1st Level Menu 2nd Level Menu Description Pro Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the OK Button to confirm and apply your mode type. Anti-Blue ∙ The default setting “Eco” mode meets the requirements of TÜV Rheinland’s “Low Blue Light”... -
Page 14: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙ Sharpness improves clarity and details of images. Color Temperature Cool ∙... -
Page 15: Pip/Pbp
PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description ∙ PIP (Picture in Picture) allows users to simultaneously display multiple video sources on Source HDMI™ 1 one screen. One program is displayed on the full screen at the same time as one or more other HDMI™... -
Page 16: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Smart Crosshair Alarm Clock Input Source PIP/PBP Mode Refresh Rate Info. On Screen Night Vision Optix Scope Setting 1st Level Menu... - Page 17 1st Level Menu 2nd Level Menu Description Info. On Screen ∙ The information of the monitor status will be shown on the right side of the screen. HDMI™ 2.1 Console ∙ To reach maximum resolution of 3840x2160@144Hz, users have to set HDMI™ 2.1 to PC. HDMI™...
-
Page 18: Specifications
Specifications Monitor MAG 274UPF Size 27 inch Curvature Flat Panel Type Rapid IPS 3840x2160 (UHD) Resolution Aspect Ratio 16:9 Brightness ∙ SDR: 400 nits (typ.) ∙ HDR Peak: 400 nits Contrast Ratio 1000:1 Refresh Rate 144Hz Response Time ∙ 1ms (MPRT) ∙... - Page 19 Monitor MAG 274UPF VESA Mounting ∙ Plate Type: 75 x 75 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 613.5 x 196.5 x 402.1 mm 6.05 kg Weight...
-
Page 20: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Mode HDMI™ 2.1 - PC Standard Resolution HDMI™ USB-C Full HD 1920x1080 @60Hz 2560x1440 @60Hz @120Hz @144Hz 3840x2160 @60Hz @120Hz @144Hz Video 720P Timing 720P @120Hz Resolution 1080P... - Page 21 HDMI™ 2.1 - Console Standard Resolution HDMI™ USB-C Full HD 1920x1080 @60Hz 2560x1440 @60Hz @120Hz @144Hz 3840x2160 @60Hz Video 720P Timing 720P @120Hz Resolution 1080P @60Hz @120Hz 2160P @30Hz @50Hz @60Hz @120Hz HDMI™ VRR* * HDMI™ VRR (Variable Refresh Rate) synchronizes with Adaptive-Sync (ON/OFF) and is disabled when Screen Size 1:1 is set to ON.
- Page 22 PBP Mode 1 w/o HDR Standard Resolution HDMI™ USB-C Video 720P Timing 1080P @60Hz Resolution 2160P @30Hz @50Hz @60Hz Used for 960x2160 @60Hz PBP Full 2880x2160 @60Hz Screen PBP Mode 2 w/o HDR Standard Resolution HDMI™ USB-C Video 720P Timing 1080P @60Hz Resolution...
-
Page 23: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 24: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 25 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 26: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 27: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 28 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 29 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
