MAG Series
LCD Monitor

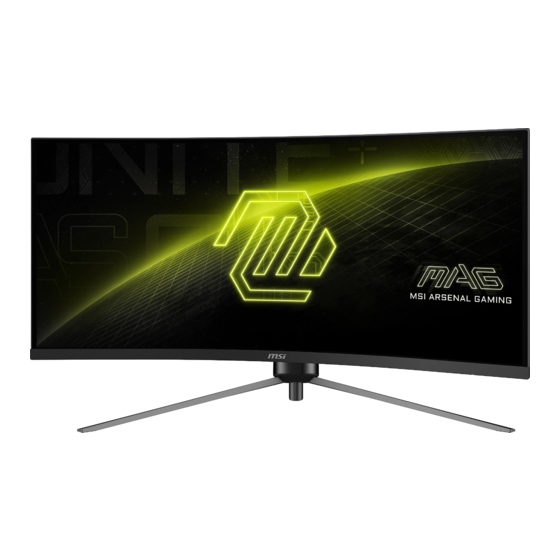

MAG 345CQR (3DD1)
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAG 345CQR (3DD1) and is the answer not in the manual?

Questions and answers

Summary of Contents for MSI MAG 345CQR (3DD1)

  • Page 1 MAG Series LCD Monitor MAG 345CQR (3DD1) User Guide...
  • Page 2: Table Of Contents

    Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 Navi Key ........................9 Hot Key ........................9 OSD Menus........................
  • Page 3: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor MAG 345CQR Documentation Quick Start Guide Power Cord Accessories Stand with Screw(s)
  • Page 4: Installing The Monitor Stand

    Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align the stand to the monitor groove. 2. Push the stand towards the monitor groove until it locks in place. 3. Connect the base to the stand and tighten the base screws to secure the base. 4.
  • Page 5: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ Please slightly tilt the monitor backwards before pivoting it. ∙ -5° 20° 30°...
  • Page 6: Monitor Overview

    Monitor Overview...
  • Page 7 Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Button & Navi Key Kensington Lock HDMI™ Connector Supports 3440x1440@100Hz as specified in HDMI™...
  • Page 8: Connecting The Monitor To Pc

    Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5.
  • Page 9: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙...
  • Page 10: Osd Menus

    OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: ∙ Night Vision ∙ Brightness ∙ MPRT ∙ Contrast ∙ Low Blue Light ∙ Color Temperature ∙ HDCR ∙ PIP/PBP Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode...
  • Page 11 1st Level Menu 2nd/3rd Level Menu Description A.I. Vision ∙ A.I. Vision enhances image quality by optimizing the contrast of images and background brightness. ∙ Activating A.I. Vision will affect: Affected Function Function Status » Night Vision » HDCR Unable to select »...
  • Page 12: Professional

    1st Level Menu 2nd/3rd Level Menu Description Screen Assistance Icon None ∙ Users can adjust Screen Assistance in any mode. Position Reset Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect: Affected Function Function Status » MPRT Set to OFF »...
  • Page 13: Image

    1st Level Menu 2nd Level Menu Description MPRT ∙ MPRT is available when the refresh rate is over 85 Hz. ∙ Activating MPRT will affect: Affected Function Function Status » Response Time Unable to select » Brightness » HDCR » PIP/PBP Set to OFF »...
  • Page 14: Input Source

    Input Source 1st Level Menu 2nd Level Menu Description HDMI™1 ∙ Users can adjust Input Source in any mode. HDMI™2 Auto Scan ∙ Users can use the Navi Key to select Input Source at below status: • While “Auto Scan” is set to “OFF” with the monitor at power saving mode;...
  • Page 15: Navi Key

    Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Screen Assistance Alarm Clock Input Source PIP/PBP Mode Refresh Rate Info. On Screen Night Vision Settings 1st Level Menu 2nd Level Menu...
  • Page 16 1st Level Menu 2nd Level Menu Description RGB LED ∙ RGB LED offers unique lighting effects for your monitor. Green Blue White Breathing Marquee Rainbow Power Button ∙ When set to OFF, users can press the power button to turn off the monitor. Standby ∙...
  • Page 17: Specifications

    Specifications Monitor MAG 345CQR Size 34 inch Curvature Curve 1000R Panel Type Resolution 3440 x 1440 (UWQHD) Aspect Ratio 21:9 Brightness Typical SDR 300 nits Contrast Ratio 3000:1 Refresh Rate 180Hz 1ms (MPRT) Response Time 4ms (GtG) ∙ HDMI™ 2.0b Connector x2 ∙...
  • Page 18 Monitor MAG 345CQR 7.7 kg Weight Gross 11.3 kg ∙ Temperature: 0℃ to 40℃ Operating ∙ Humidity: 20% to 90%, non-condensing Environment ∙ Altitude: 0 ~ 5000m ∙ Temperature: -20℃ to 60℃ Storage ∙ Humidity: 10% to 90%, non-condensing * Based on CIE1976 test standards.
  • Page 19: Preset Display Modes

    Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Mode Standard Resolution HDMI™ Full HD 1920x1080 @60Hz @60Hz 2560x1440 @120Hz @50Hz @60Hz @100Hz UWQHD 3440x1440 @120Hz @165Hz @180Hz 720P @60Hz 1080P @120Hz Video Timing @30Hz Resolution 2160P...
  • Page 20: Troubleshooting

    Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on.
  • Page 21: Safety Instructions

    ∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.
  • Page 22 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
  • Page 23: Tüv Rheinland Certification

    TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.
  • Page 24: Regulatory Notices

    1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com...
  • Page 25 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
  • Page 26 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
