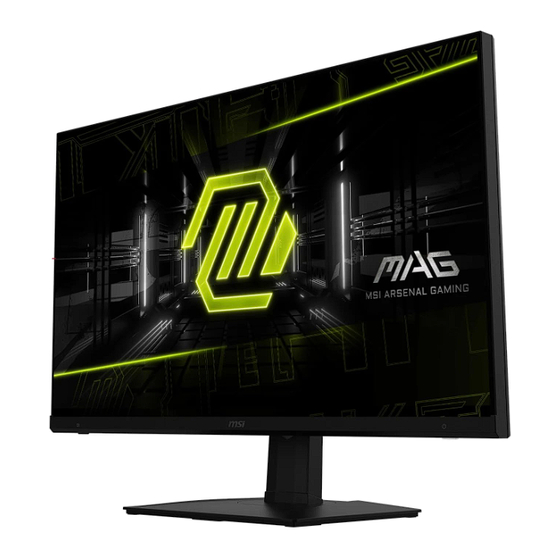

- Page 1 MAG Series LCD Monitor MAG 322UPF (3DC7) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 Navi Key ........................9 Hot Key ........................9 OSD Menus........................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor MAG 322UPF Documentation Quick Start Guide Stand with Screw(s) Stand Base with Screw(s) -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. -5° 20° 100mm 45° 45°... -
Page 6: Monitor Overview
Monitor Overview... - Page 7 Macro Key To activate OSD Application. Power Button & Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Cable Routing Hole Navi Key Power Jack...
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙... -
Page 10: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: ∙ Night Vision ∙ Contrast MPRT Sync Color Temperature ∙ ∙ Low Blue Light Optix Scope ∙ ∙ HDCR PIP/PBP ∙ ∙ Brightness ∙... - Page 11 G.I. 1st Level Menu 2nd/3rd Level Menu Description Auto ∙ Auto allows the monitor to automatically switch between USB input sources, such as keyboards, Upstream mice or other USB devices. ∙ Users can also designate Upstream port or USB Type C Type-C as the only USB signal source.
-
Page 12: Gaming
Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙ Use Up or Down Button to select and preview mode effects. ∙ Press the OK Button to confirm and apply your Racing mode type. Night Vision ∙ This function optimizes background brightness and is recommended for FPS games. - Page 13 1st Level Menu 2nd/3rd Level Menu Description Alarm Clock Location Left Top ∙ After setting the time, press the OK Button to activate the timer. Right Top ∙ Users have to manually restore their preset Left Bottom Alarm Clock after any AC power loss and reconnection.
-
Page 14: Professional
Professional 1st Level Menu 2nd Level Menu Description Pro Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the OK Button to confirm and apply your mode Anti-Blue type. ∙ The default setting “Eco” mode meets the Movie requirements of TÜV Rheinland’s “Low Blue Light”... -
Page 15: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙ Sharpness improves clarity and details of images. Color Temperature Cool ∙... -
Page 16: Pip/Pbp
PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description ∙ PIP (Picture in Picture) allows users to simultaneously display multiple video sources Source HDMI™1 on one screen. One program is displayed on the full screen at the same time as one or more HDMI™2 other programs are displayed in inset windows. -
Page 17: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Game Mode Right Smart Crosshair Alarm Clock Input Source PIP/PBP Mode Refresh Rate Info. On Screen Night Vision Optix Scope Settings 1st Level Menu... - Page 18 1st Level Menu 2nd Level Menu Description Power Button ∙ When set to OFF, users can press the power button to turn off the monitor. Standby ∙ When set to Standby, users can press the power button to turn off the panel and backlight. Info.
-
Page 19: Specifications
Specifications Monitor MAG 322UPF Size 32 inch Curvature Flat Panel Type Rapid IPS Resolution 3840 x 2160 (UHD) Aspect Ratio 16:9 ∙ Typical SDR: 350 nits Brightness ∙ Peak HDR: 400 nits Contrast Ratio 1000:1 Refresh Rate 160Hz 1ms (GTG) - Page 20 Monitor MAG 322UPF ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x H x D) 727.1 x 494.9 x 233.7 mm...
-
Page 21: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Mode/ HDMI™ 2.1 PC* Standard Resolution HDMI™ DP/ USB-C Full HD 1920x1080 @60Hz 2560x1440 @60Hz @120Hz @144Hz 3840x2160 @60Hz @120Hz @144Hz @160Hz Video Timing 720P @60Hz Resolution @120Hz... - Page 22 PIP Mode (Not Suppost HDR) Standard Resolution HDMI™/ DP/ USB-C Full HD 1920x1080 @60Hz 2560x1440 @60Hz 3840x2160 @60Hz Video Timing 720P Resolution 1080P @60Hz 2160P @30Hz @50Hz @60Hz PBP Mode 1 (Not Suppost HDR) Standard Resolution HDMI™/ DP USB-C Video Timing 720P Resolution 1080P...
- Page 23 PBP Mode 3 (Not Suppost HDR) Standard Resolution HDMI™/ DP USB-C 1920x1080 @60Hz 2560x1440 @60Hz 3840x2160 @60Hz Video Timing 720P Resolution 1080P @60Hz 2160P @50Hz @60Hz 2560x1080P @60Hz Used for PBP Full 3840x1080 @60Hz Screen 2560x1080 @60Hz Screen Size 16:10 (Not Suppost HDR) Standard Resolution...
-
Page 24: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 25: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 26 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
-
Page 27: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 28: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 29 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 30 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
