Installation of the hardware (mech. components) on the frame

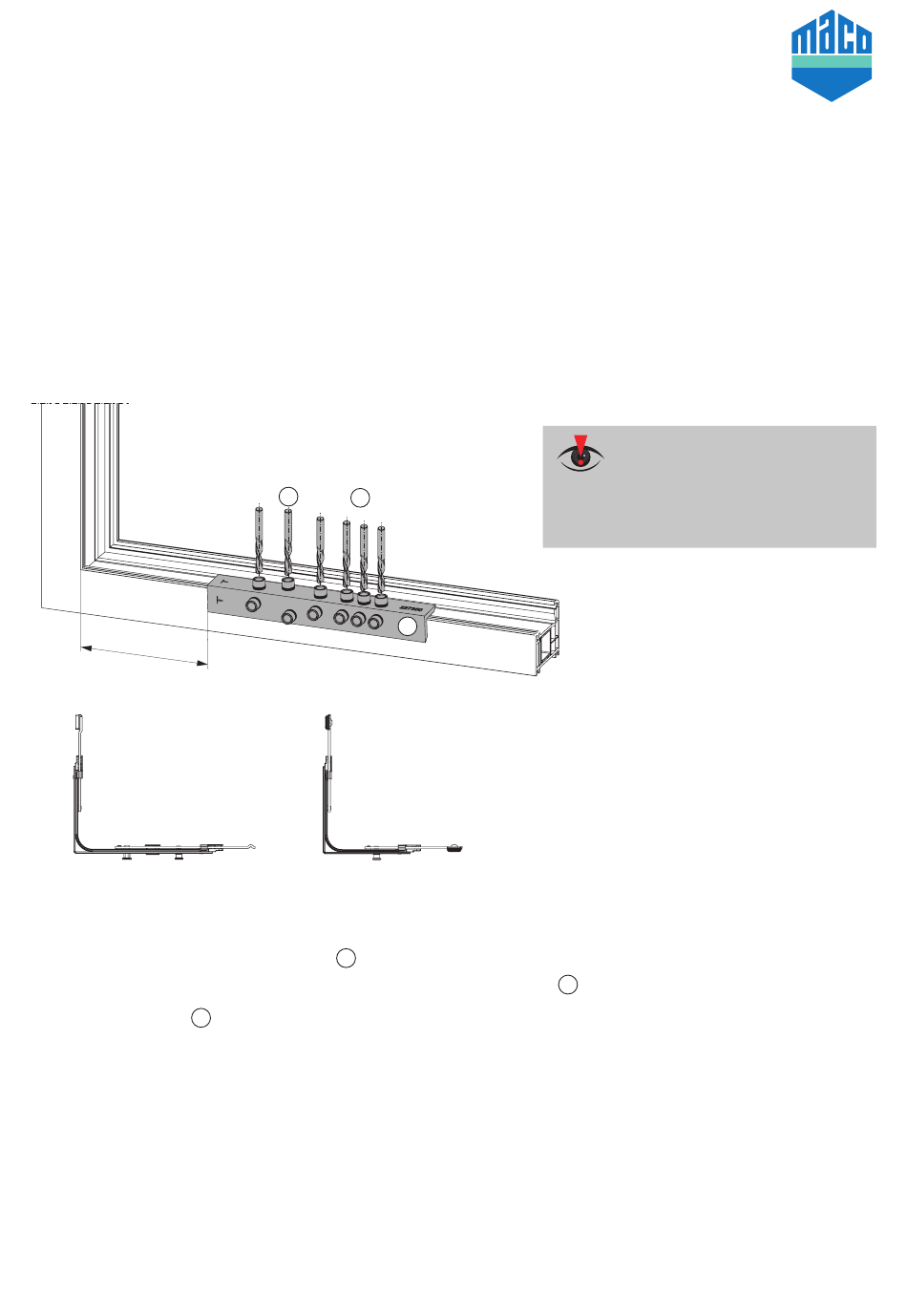

Use of drilling jig

Drilling with the jig
X
X = 230 mm
X = 230 mm
222206
1. Insert drilling jig Article No. 227350
corner and with drill all holes to a max. depth of 6 mm using drill
C
2. Extend the hole
C
B Ø 8 mm
X = 162,5 mm
X = 162,5 mm
222201
A
for right and left sash at the distance X from the frame rebate
through the frame as a through hole.
Drill holes maximum to 6 mm deep, to
avoid drilling right through the frame!
A
B
ATTENTION!
(max. X for rebate gap 12 mm).
19
